Auxiliary Radiator Replacement

WARNING: This page is about a different variant/trim than selected.

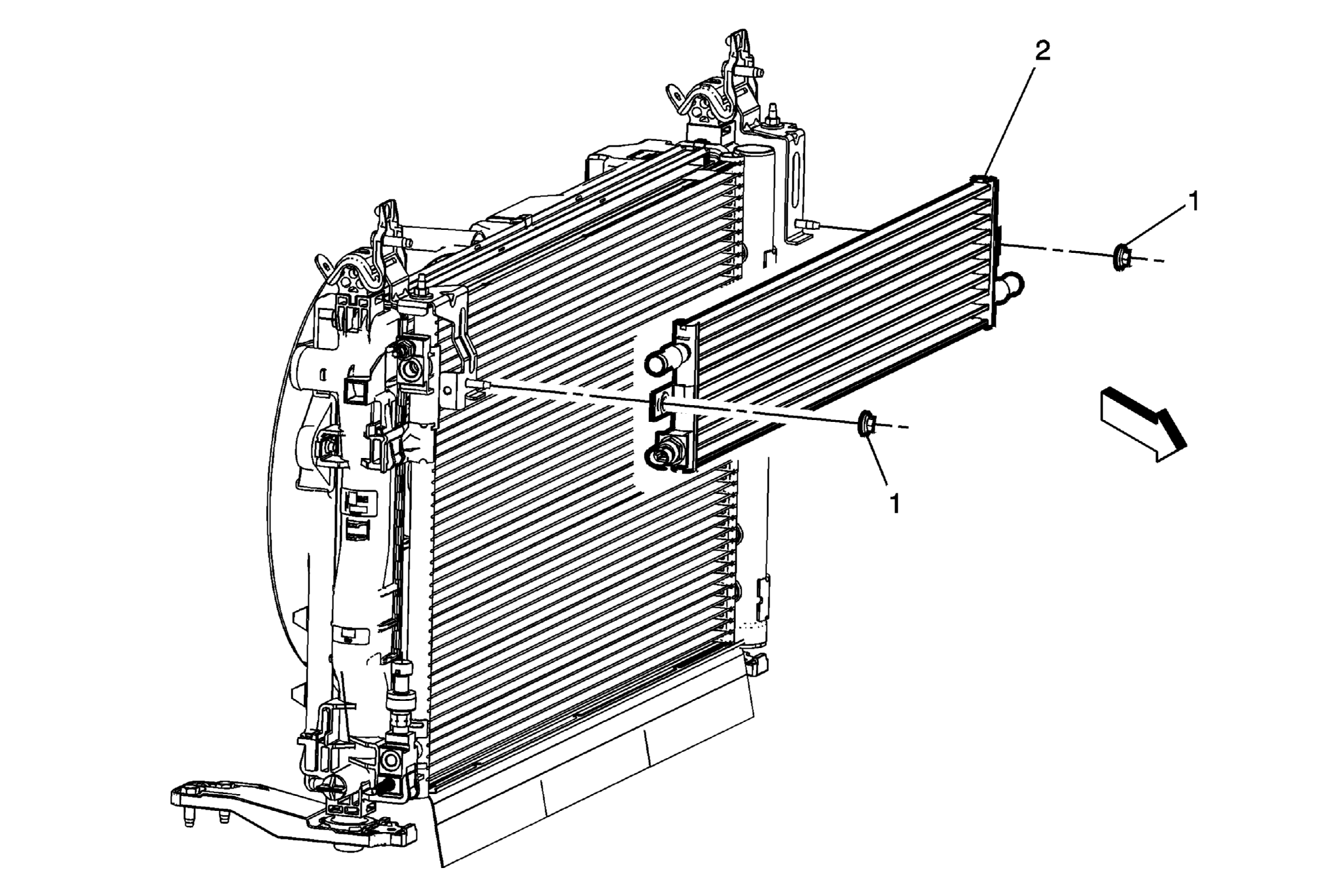

Fig 1: Auxiliary Radiator

GM2582262

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the auxiliary radiator inlet hose. Refer to Auxiliary Radiator Inlet Hose Replacement .
Remove the auxiliary radiator outlet hose. Refer to Auxiliary Radiator Outlet Hose Replacement .

1

Auxiliary Radiator Fastener (Qty:2)

CAUTION:

Refer to Fastener Caution .

2

Auxiliary Radiator
