Auxiliary Radiator Outlet Hose Replacement

WARNING: This page is about a different variant/trim than selected.

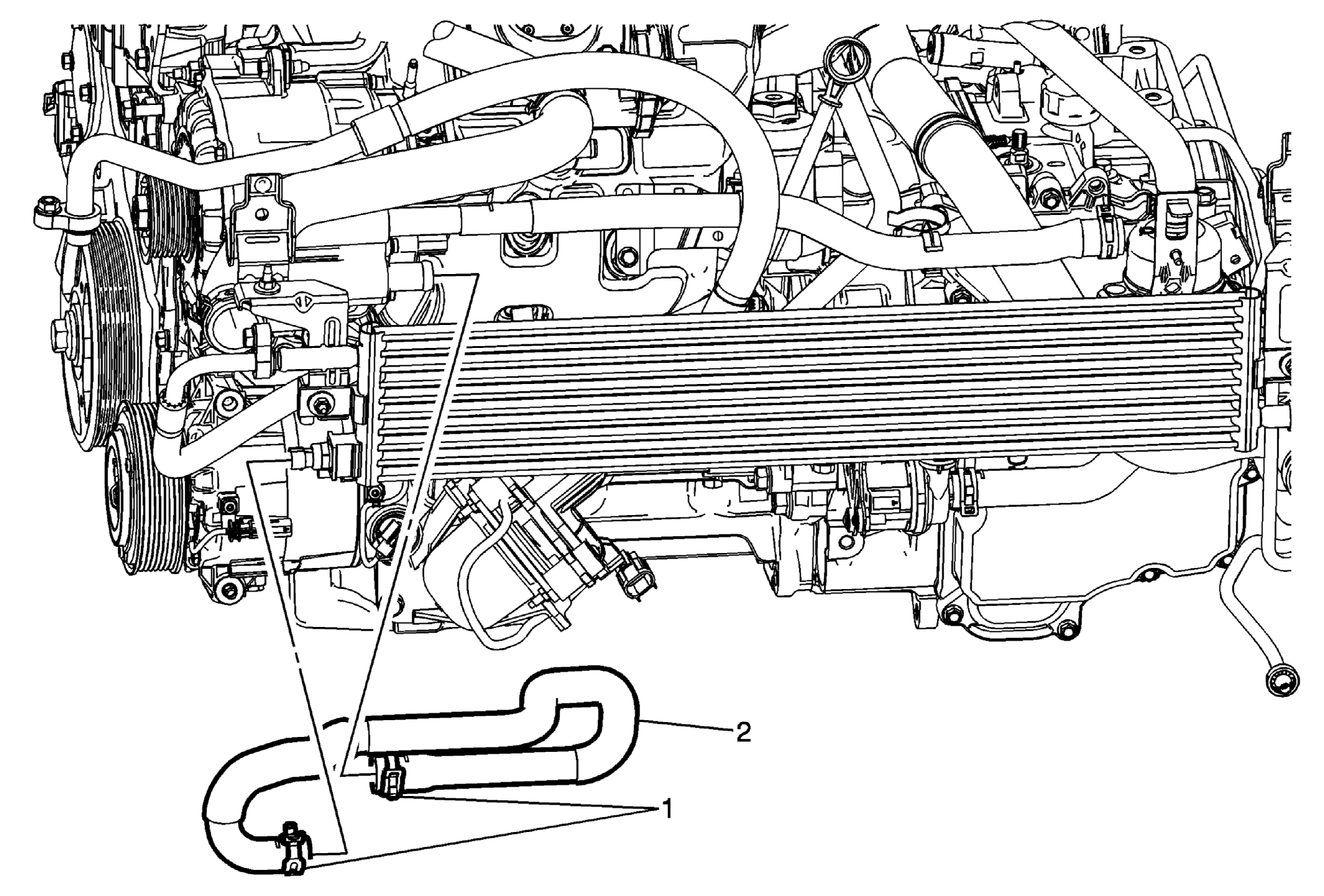

Fig 1: Auxiliary Radiator Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) . Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Auxiliary Radiator Outlet Hose Clamp
2	Auxiliary Radiator Outlet Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Auxiliary Radiator Outlet Hose Clamp

Auxiliary Radiator Outlet Hose
