Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the oil level indicator tube. Refer to Oil Level Indicator Tube Replacement .
  3. Remove the drivetrain and front suspension frame . Refer to Drivetrain and Front Suspension Frame Replacement .
    4. Fig 1: A/C Compressor Bolts And Nut
    GM2567548Courtesy of GENERAL MOTORS COMPANY
  4. Loosen the (A/C) compressor nut (1).
  5. Loosen the (A/C) compressor bolt (2).
  6. Remove the lower A/C compressor bolt (3).

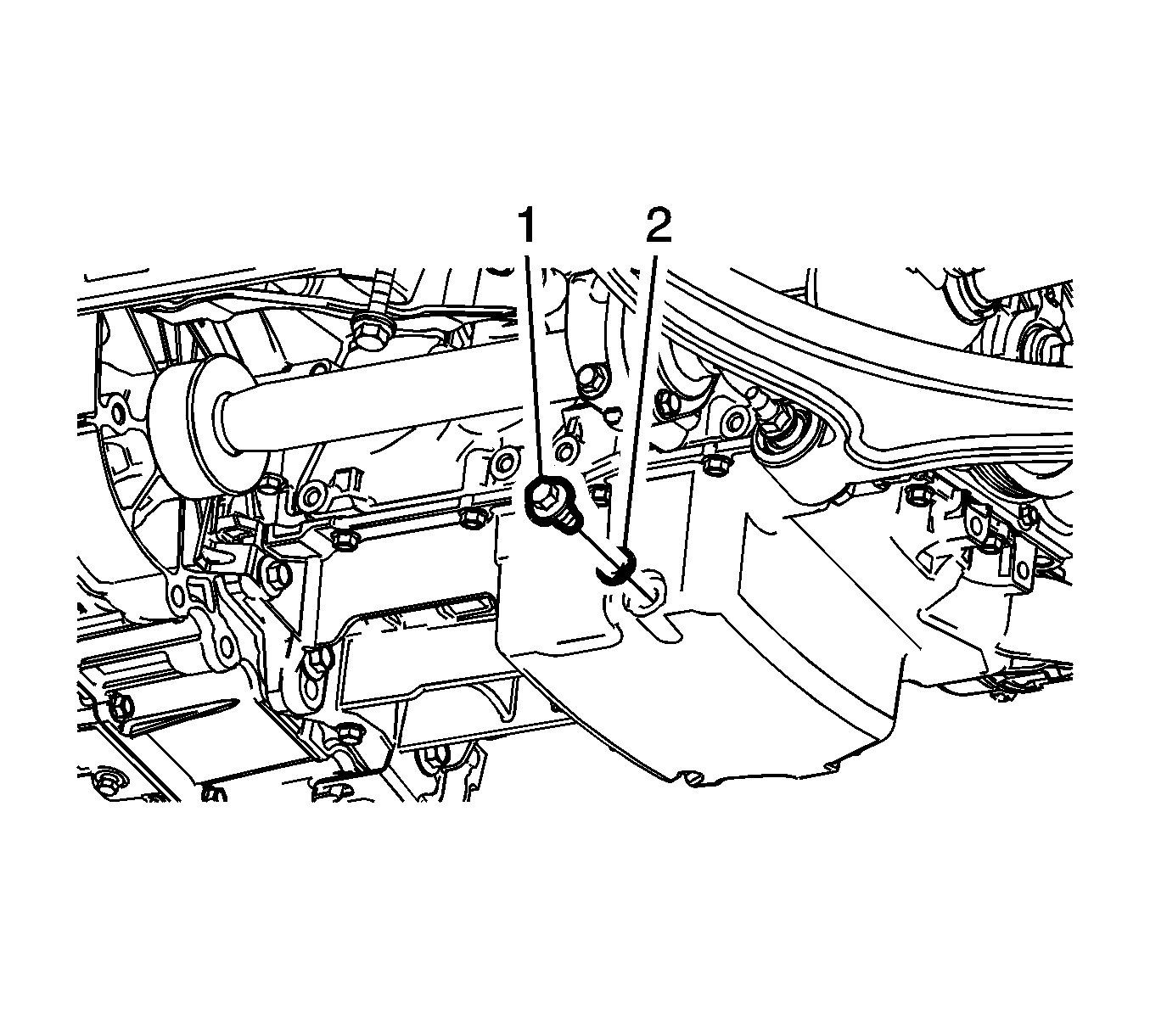

    7. Fig 2: Engine Oil Drain Plug And Seal
    GM2567558Courtesy of GENERAL MOTORS COMPANY
  7. Place a suitable drain pan under the oil pan drain plug.
  8. Remove the oil pan drain plug (1).
  9. Drain the engine oil.
  10. Install a new oil pan plug gasket (2).
    11. CAUTION:

    Refer to Fastener Caution .

  11. Install the oil pan drain plug (1) and tighten to 25 N.m (18 lb ft)
    12. Fig 3: Oil Pan To Transaxle Bolts
    GM2567576Courtesy of GENERAL MOTORS COMPANY
  12. Remove the oil pan to transaxle bolts (1).
    13. Fig 4: Oil Pan Bolts
    GM2567592Courtesy of GENERAL MOTORS COMPANY
  13. Remove the oil pan bolts (1).
  14. Remove the oil pan. (2).
  15. Remove any old oil pan sealant
