Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Engine Front Cover Gasket
    GM1578294Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW engine front cover gasket to the dowel pins.
    2. Fig 2: Engine Front Cover
    GM1578293Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the engine front cover and install the water pump bolt and tighten to 25 N.m (18 lb ft).
    3. Fig 3: Engine Front Cover Bolts
    GM1578292Courtesy of GENERAL MOTORS COMPANY
  3. Install the engine front cover bolts and tighten to 25 N.m (18 lb ft).

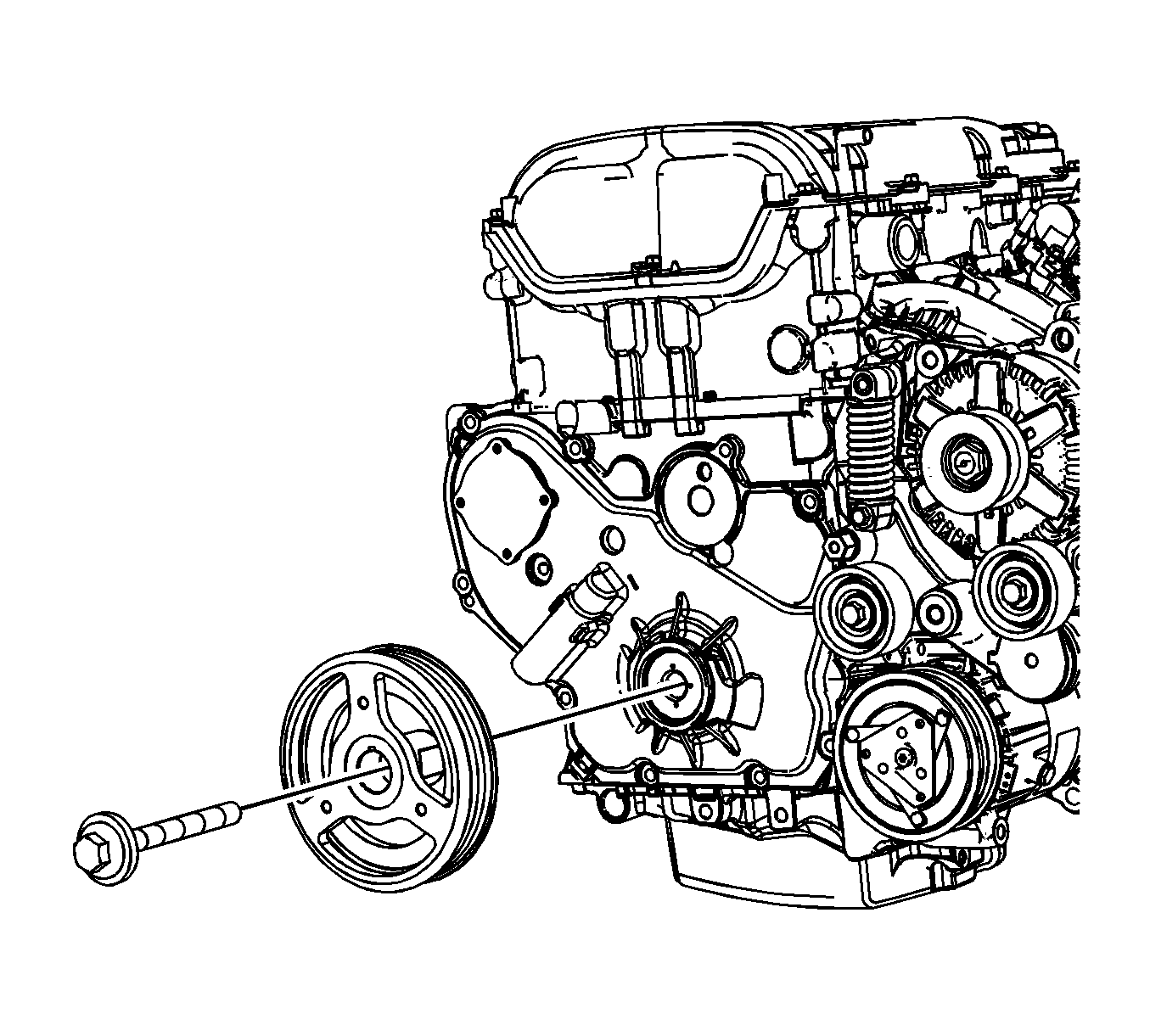

    4. Fig 4: Crankshaft Balancer And Bolt
    GM1811400Courtesy of GENERAL MOTORS COMPANY
  4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
    5. Fig 5: Power Brake Booster Vacuum Rear Pipe Quick Connect And Retainer
    GM2213625Courtesy of GENERAL MOTORS COMPANY
  5. Reposition and connect the vacuum booster rear pipe (2). Refer to Power Brake Booster Vacuum Rear Pipe Replacement (2.0L) .
  6. Install the wheelhouse splash shield. Refer to Front Compartment Splash Shield Replacement .

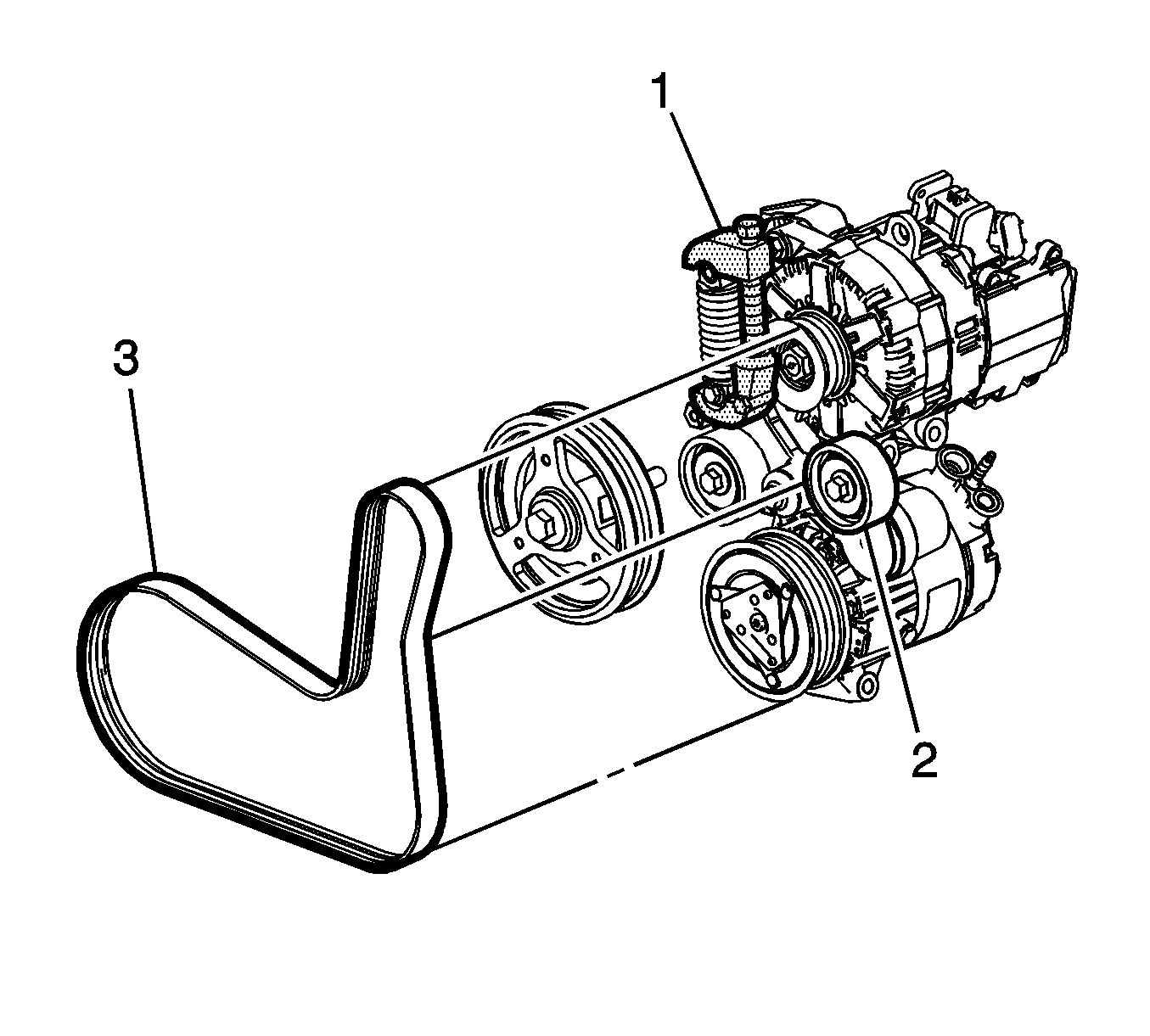

    7. Fig 6: Identifying Drive Belt
    GM1809412Courtesy of GENERAL MOTORS COMPANY
  7. Install the drive belt (1). Refer to Drive Belt Replacement .

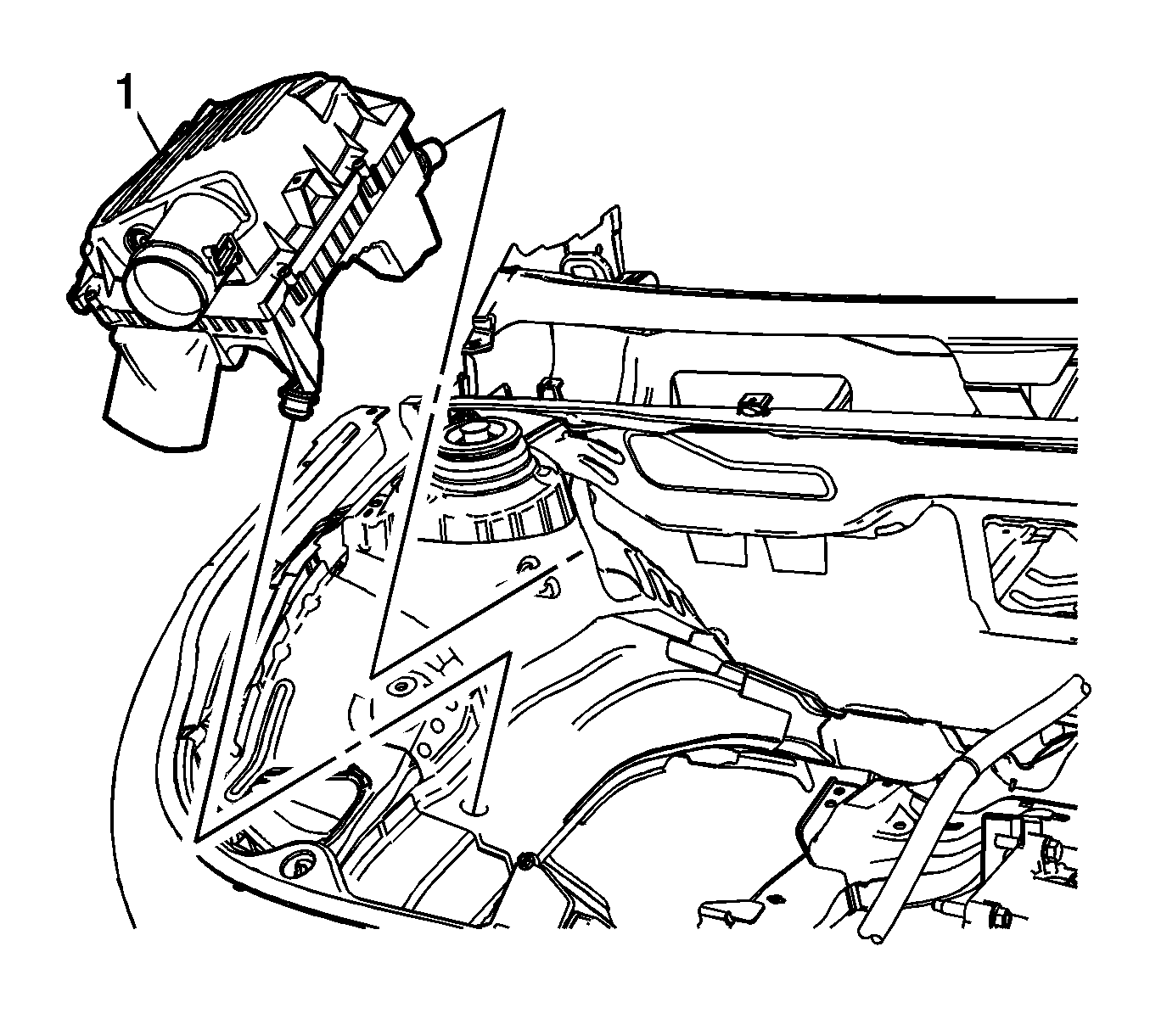

    8. Fig 7: Air Cleaner Assembly
    GM2581179Courtesy of GENERAL MOTORS COMPANY
  8. Install the air cleaner assembly (1). Refer to Air Cleaner Assembly Replacement .
