Front Compartment Splash Shield Replacement

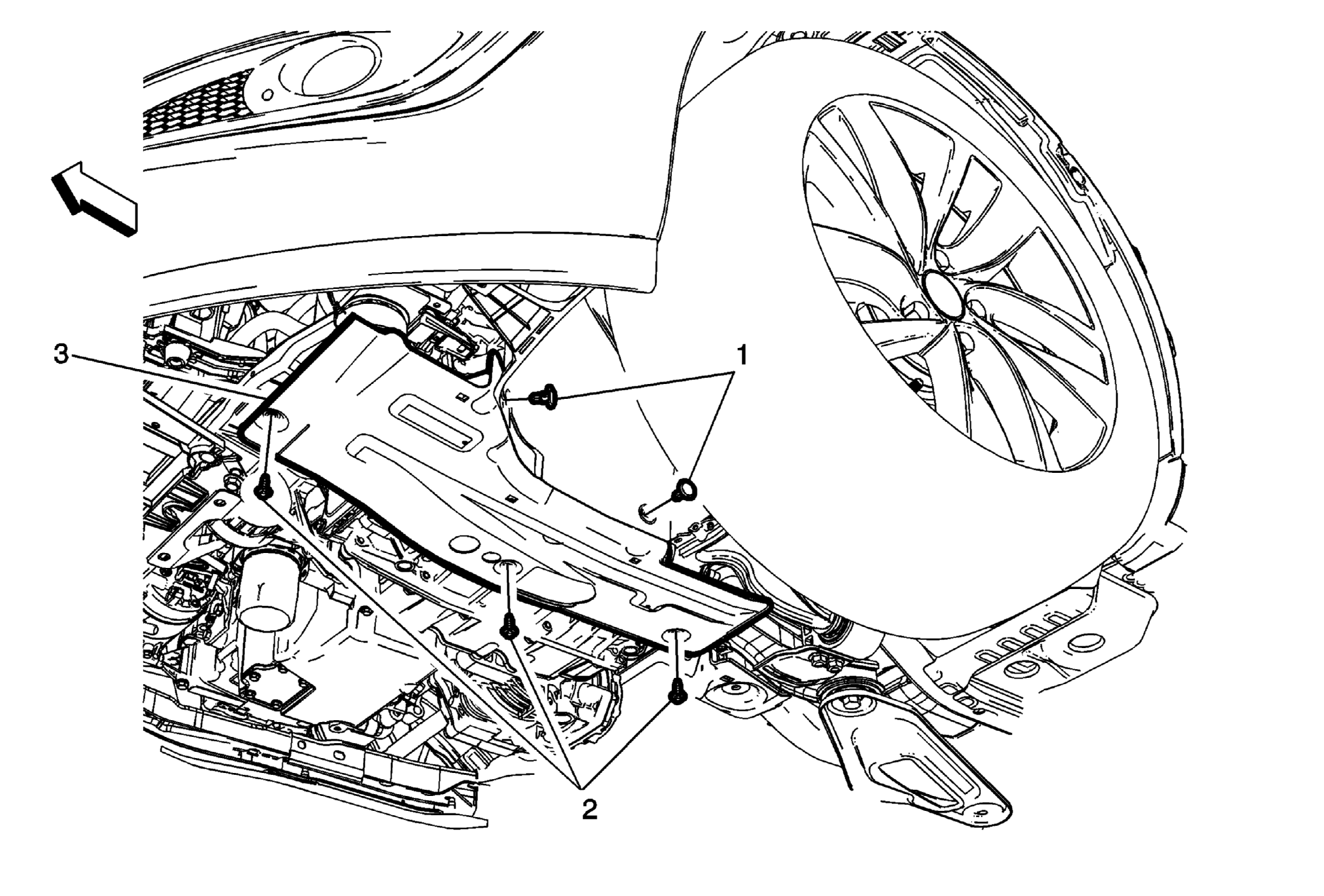

Fig 1: Front Compartment Splash Shield
GM3457331Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. If equipped with AWD, remove the drivetrain and front suspension frame transmission protector. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement (AWD) .
1 Front Compartment Splash Shield Retainer (Qty2)
2
CAUTION:

Refer to Fastener Caution .

Front Compartment Air Deflector Fastener (Qty3)Tighten: 3 N.m (27 lb in)
3 Front Compartment Air Deflector
