Camshaft Cover Replacement (LEA)
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callous |
Component Name |
|
Preliminary Procedures
- Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
.
- Remove the ignition coils. Refer to Ignition Coil Replacement
.
- Remove the Camshaft Position Sensor intake. Refer to Camshaft Position Sensor Replacement - Intake
- Remove the Camshaft Position Sensor Exhaust . Refer to Camshaft Position Sensor Replacement - Exhaust
|

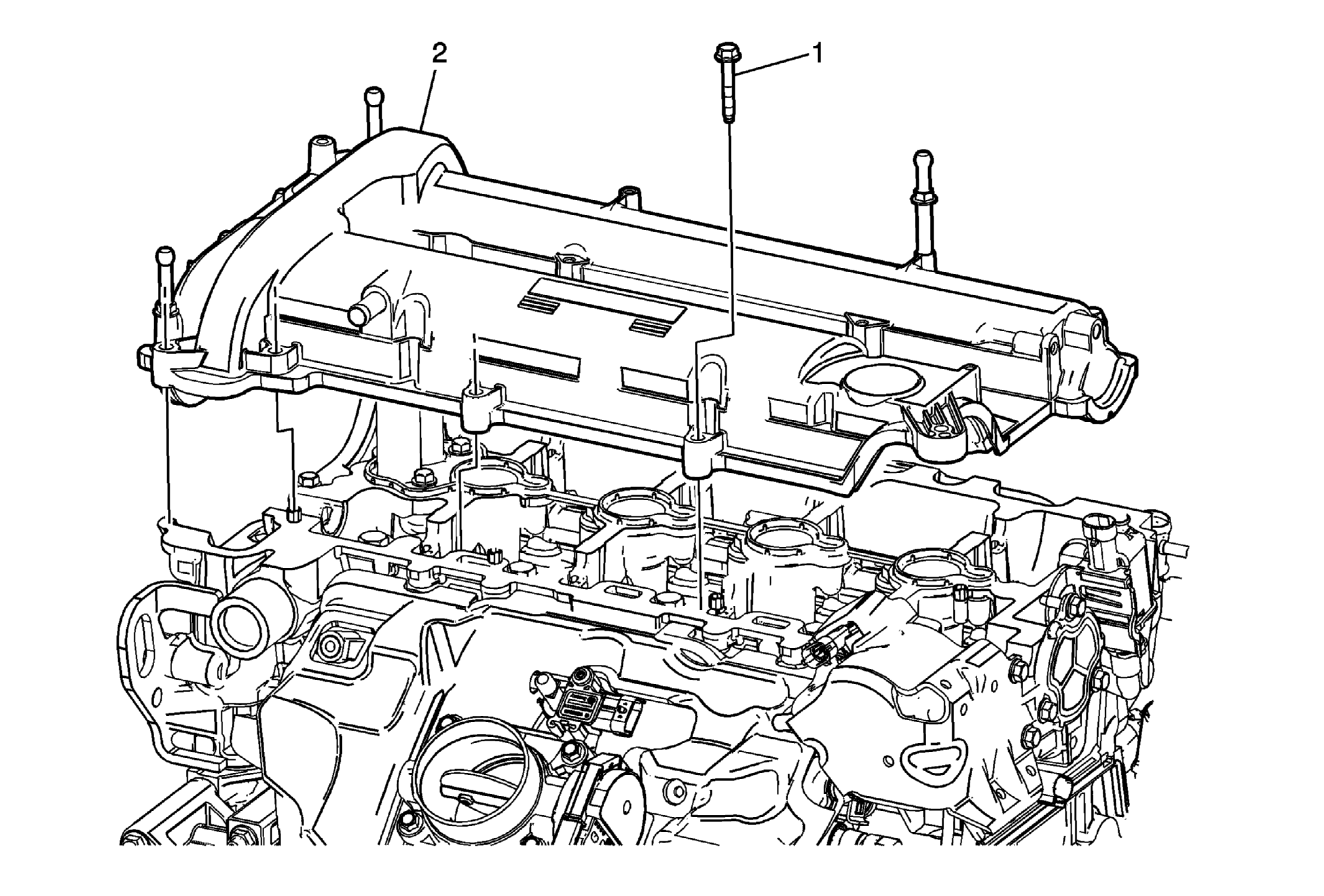

| 1 |
Camshaft Cover Fastener (Qty:11)
Tighten
10 N.m (89 lb in) |
| 2 |
Camshaft Cover Procedure
- Do not reuse camshaft gasket. Also use a new gasket when removing or replacing camshaft cover.
- Remove ignition coil wiring harness clips from the camshaft cover.
- Remove the fuel line bracket from the camshaft cover.
- Transfer components as necessary.
|
