Camshaft Position Sensor Replacement - Exhaust

WARNING: This page is about a different variant/trim than selected.

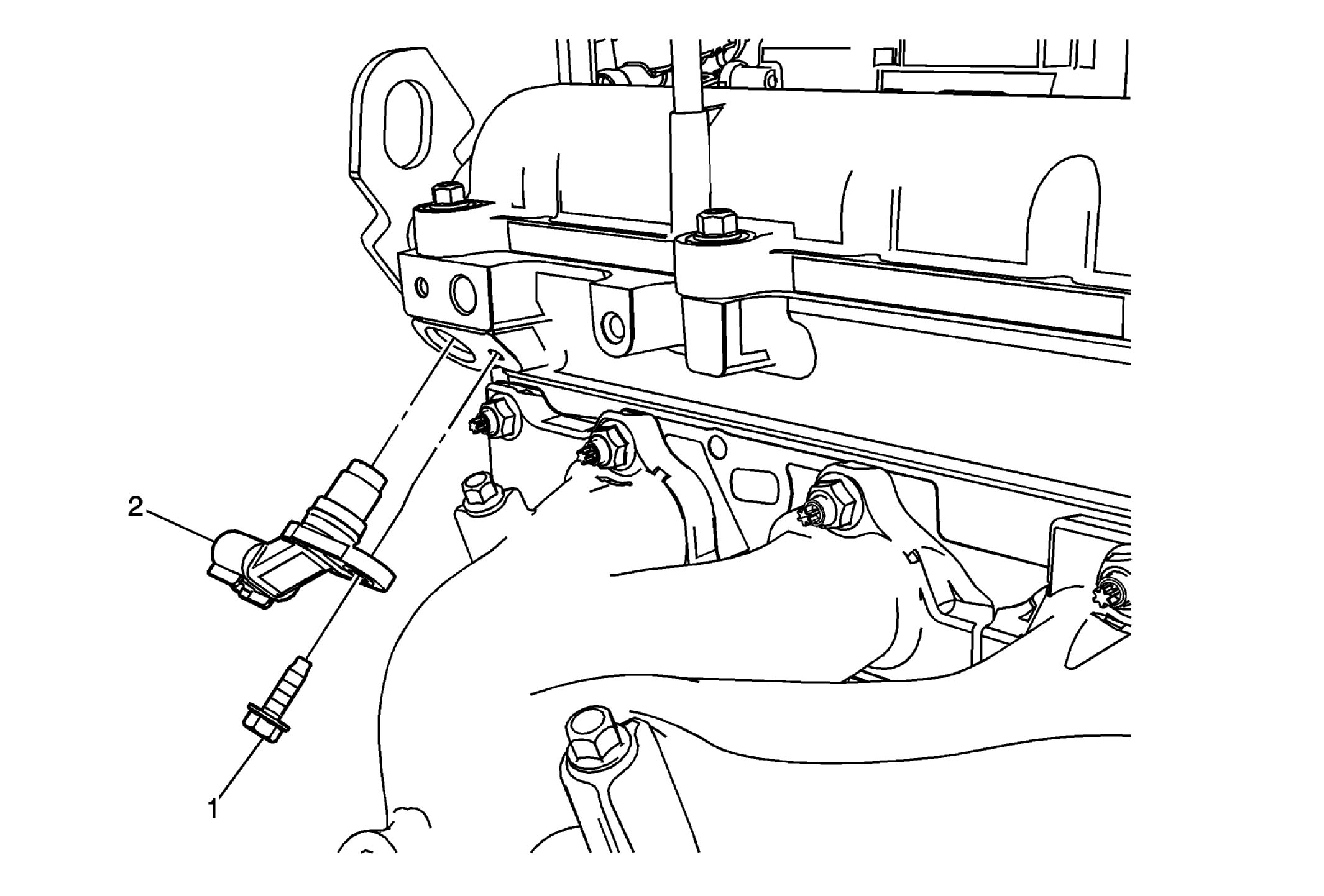

Fig 1: Camshaft Position Sensor - Exhaust

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Sensor Exhaust Procedure Lube the O-ring with clean engine oil. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Camshaft Position Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Sensor Exhaust

Procedure
