Engine Mount Replacement

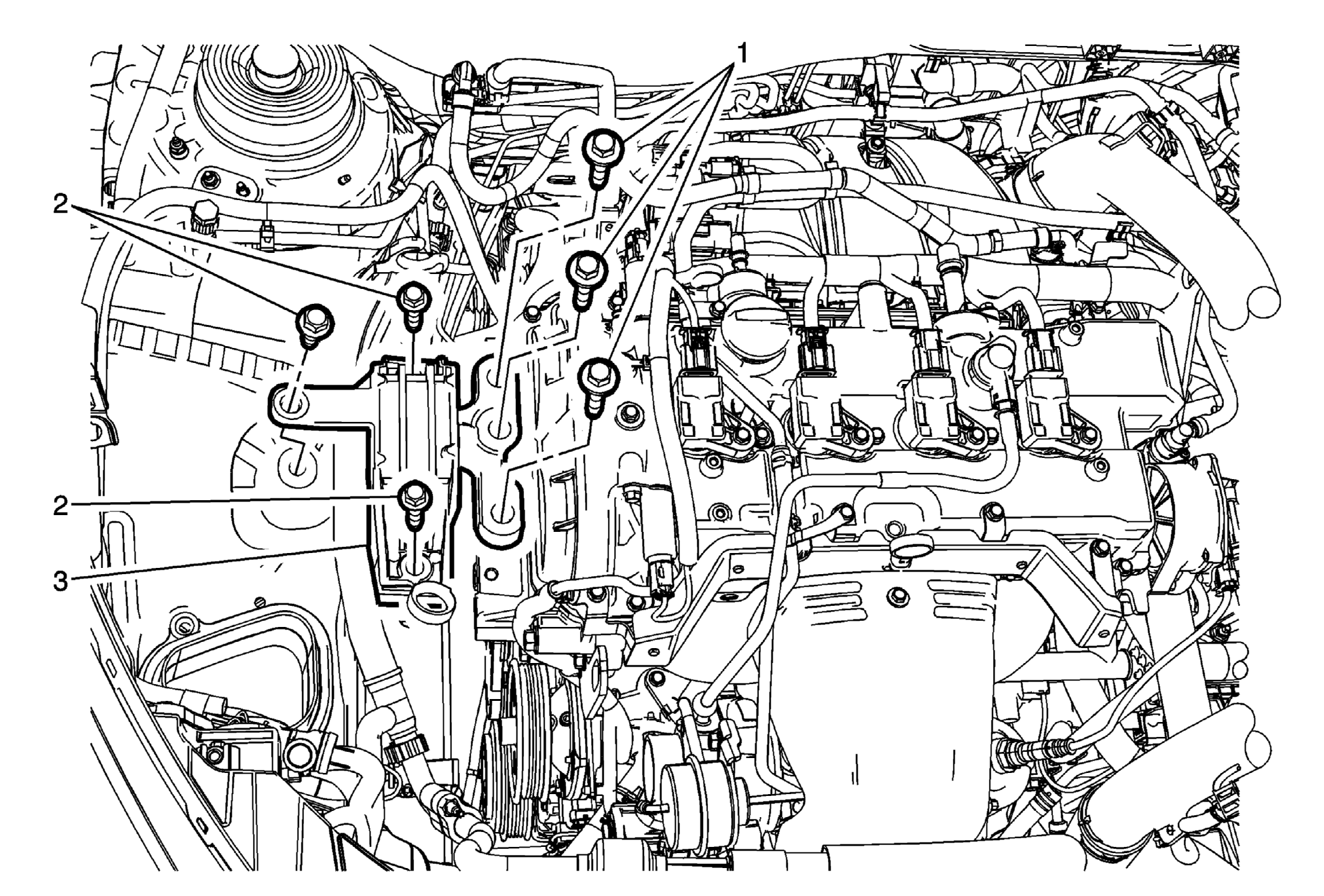

Fig 1: Engine Mount (LTG)
GM2868820Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Install the engine support fixture. Refer to Engine Support Fixture .
1 Engine Mount Bolt (Qty:3)
CAUTION:

Refer to Fastener Caution .


Tighten
62 N.m (46 lb ft)
2 Engine Mount Bolt (Qty:3)
Tighten
62 N.m (46 lb ft)
3 Engine Mount
