Exhaust Rear Muffler Heat Shield Replacement (Left Rear Inner)

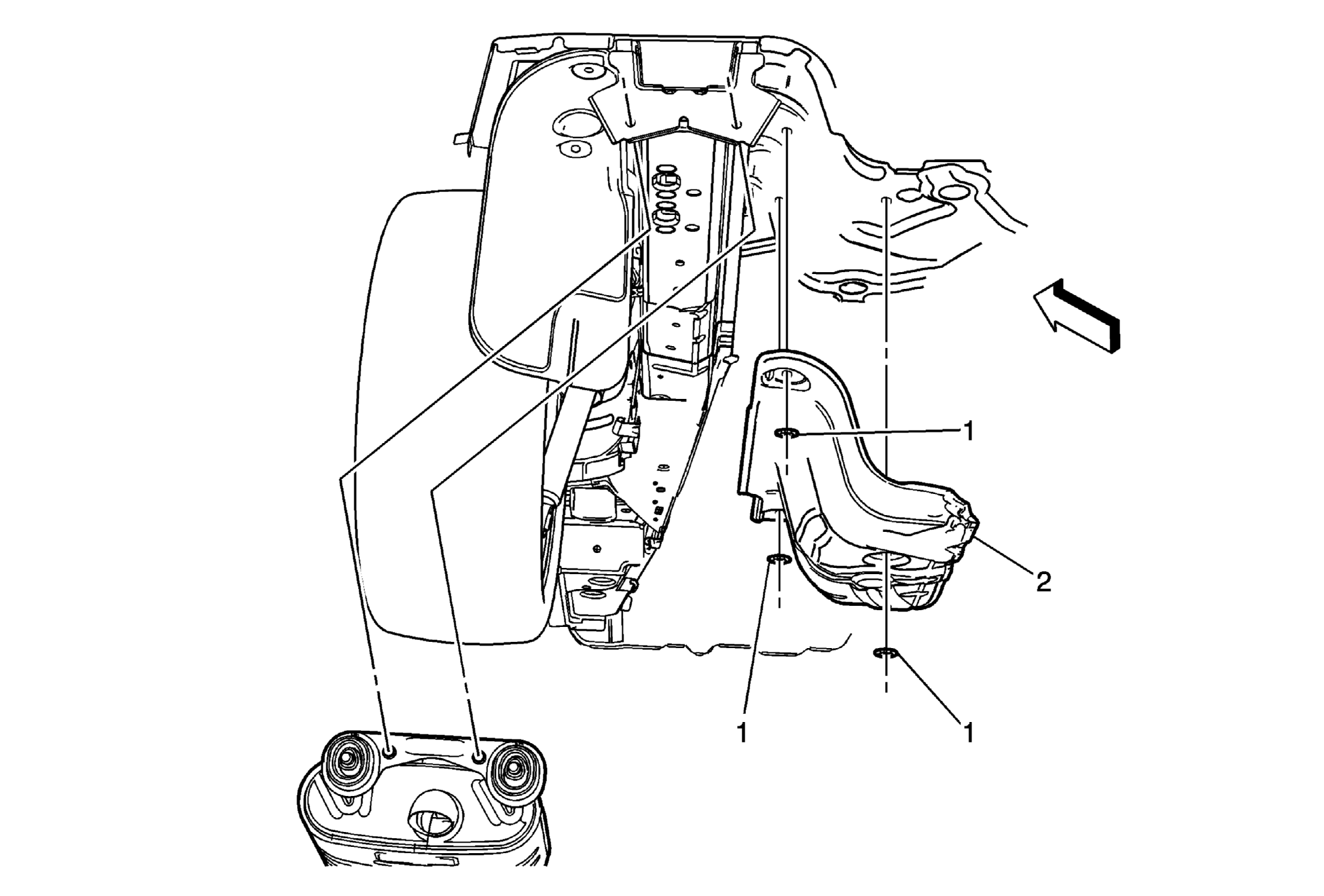

Fig 1: Exhaust Rear Muffler Heat Shield (Left Rear Inner)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (Single)  OR Exhaust Muffler Replacement (Dual) .
1	Heat Shield Retainer (Qty:3) CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Heat Shield Left Inner
