Exhaust Muffler Center Heat Shield Replacement

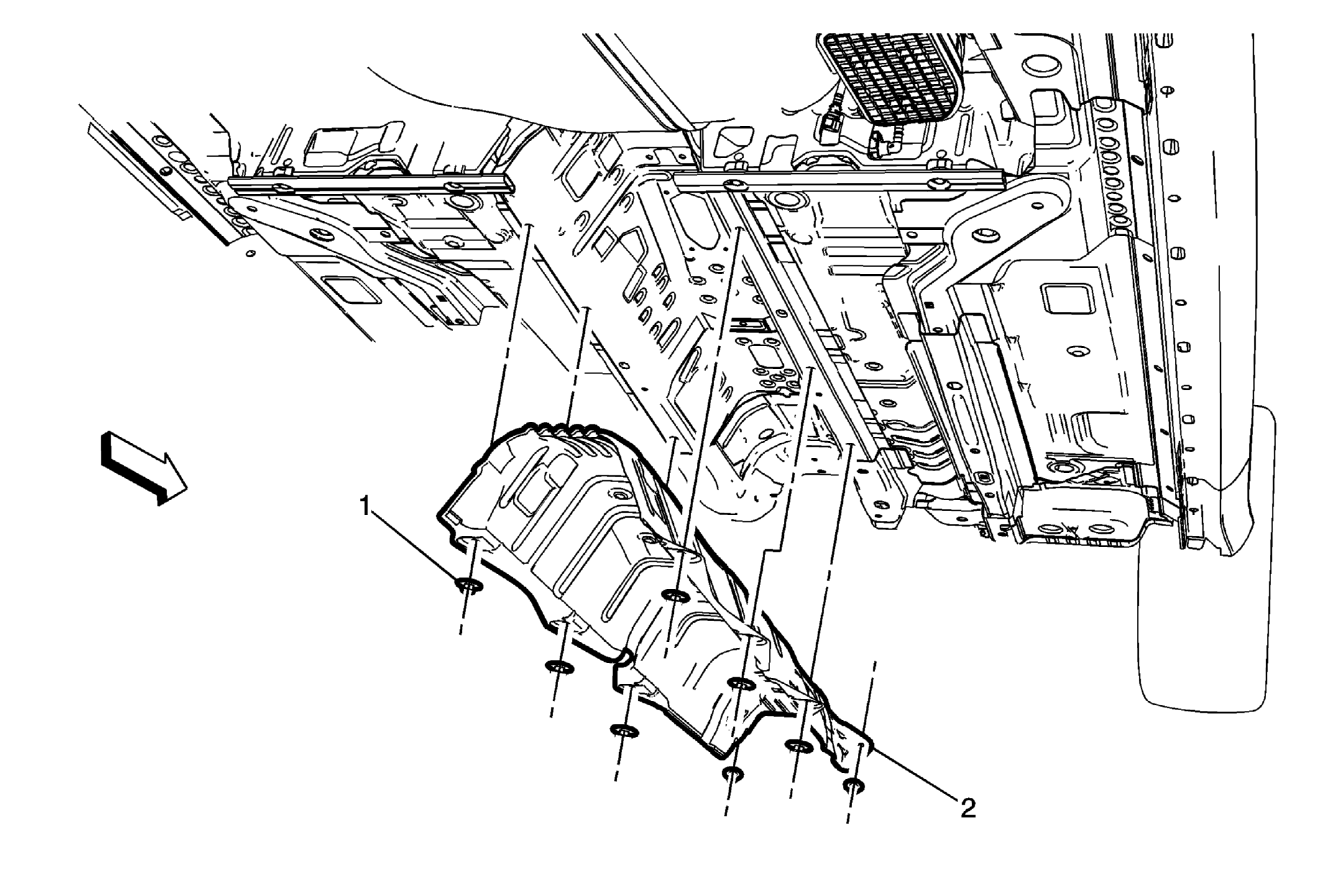

Fig 1: Exhaust Muffler Center Heat Shield & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (Single) OR Exhaust Muffler Replacement (Dual) . Remove the exhaust front pipe. Refer to Exhaust Front Pipe Replacement (LUK) .
1	Fastener (Qty:8)
2	Exhaust Pipe Heat Shield

Callout

Component Name

Preliminary Procedures

Fastener (Qty:8)

Exhaust Pipe Heat Shield
