Turbocharger Heat Shield Replacement

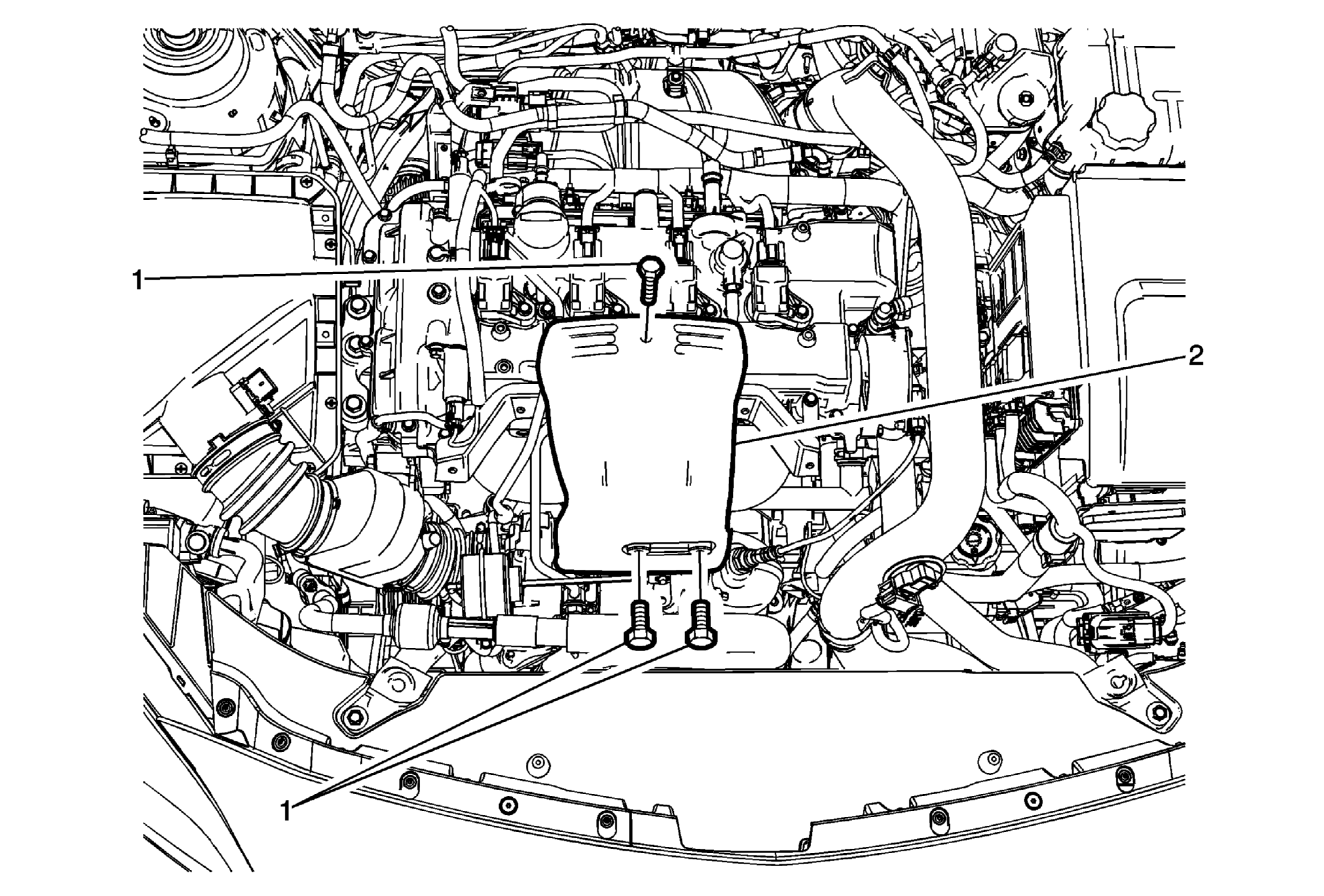

Fig 1: Turbocharger Heat Shield
GM2869268Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Turbocharger Heat Shield Fastener (Qty;3)
CAUTION:

Refer to Fastener Caution .

NOTE:

In the event that a bolt breaks upon removal of components, perform an extraction of the broken bolt.


Tighten
14 N.m (10 lb ft)
2 Turbocharger Heat Shield
