Removal Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
  2. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
  3. Remove the battery tray. Refer to Battery Tray Replacement .

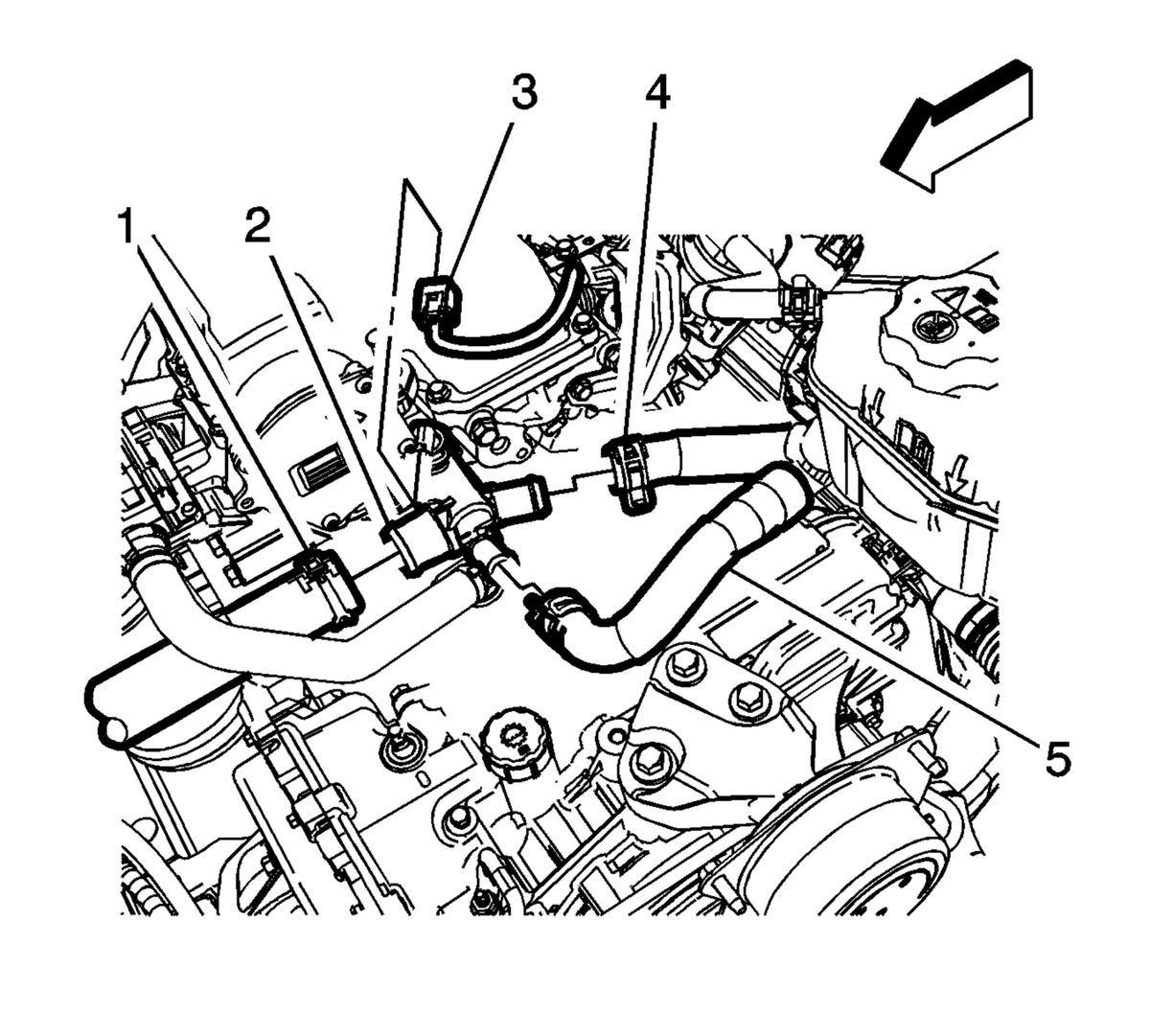

    4. Fig 1: Engine Coolant Temperature (ECT) Sensor Connector
    GM2810896Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the engine coolant temperature (ECT) sensor connector (3) from the water outlet (2).
  5. Remove the following hoses from the water outlet:
    • Radiator inlet hose (1).
    • Heater inlet hose (4).
    • Heater outlet hose (5).
    6. Fig 2: Thermostat Bypass Hose
    GM2810899Courtesy of GENERAL MOTORS COMPANY
  6. Remove the thermostat bypass hose (2) from the water outlet (3).

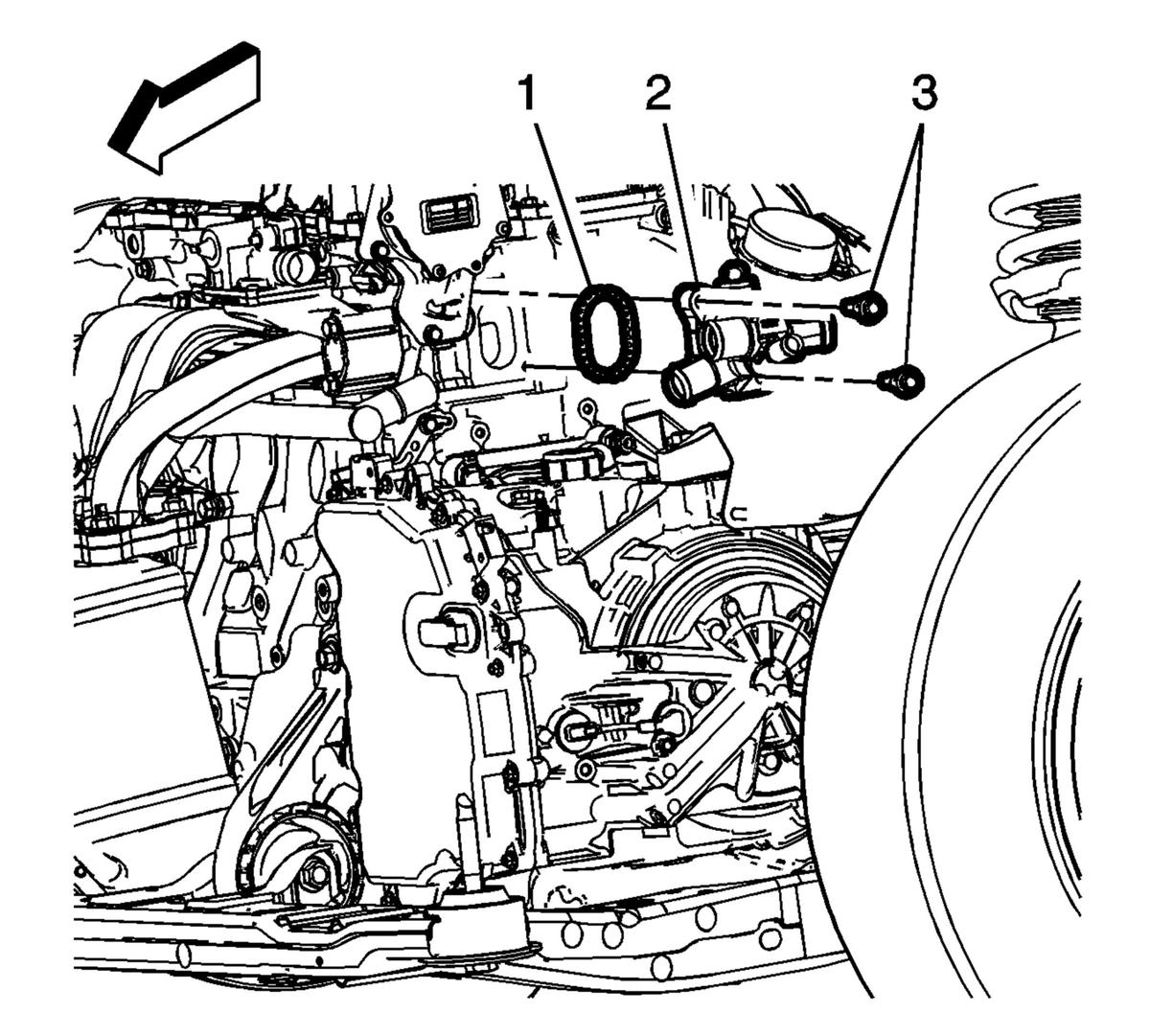

    7. Fig 3: Water Outlet Fasteners
    GM2810902Courtesy of GENERAL MOTORS COMPANY
  7. Remove the water outlet fasteners (3) and remove the water outlet (2).
  8. Discard the water outlet seal (1).
