Installation Procedure

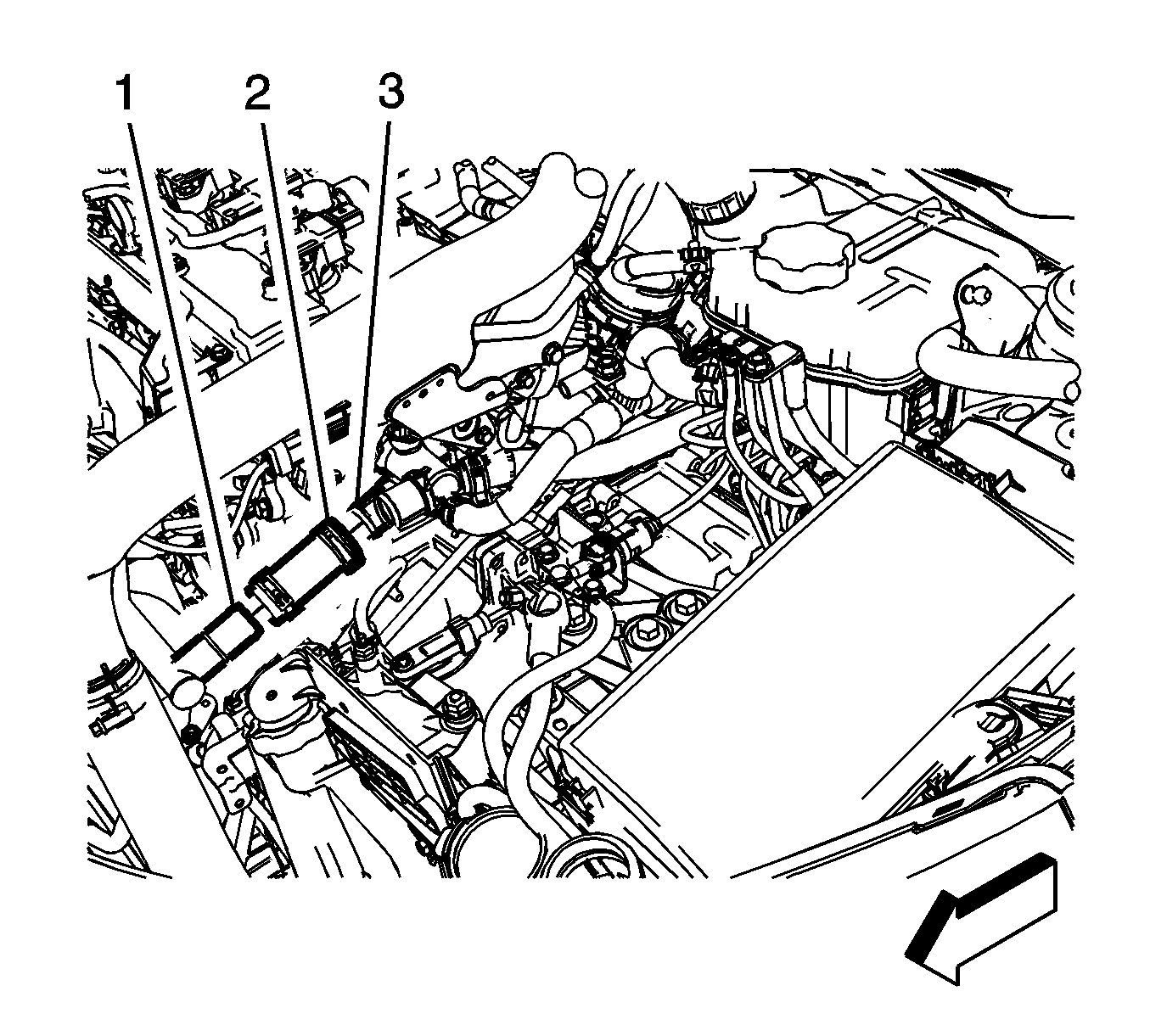

    Fig 1: Thermostat Bypass Hose And Thermostat Bypass Pipe
    GM2865062Courtesy of GENERAL MOTORS COMPANY
  1. Install the thermostat bypass hose (2) to the thermostat bypass pipe (1) and the water outlet (3).

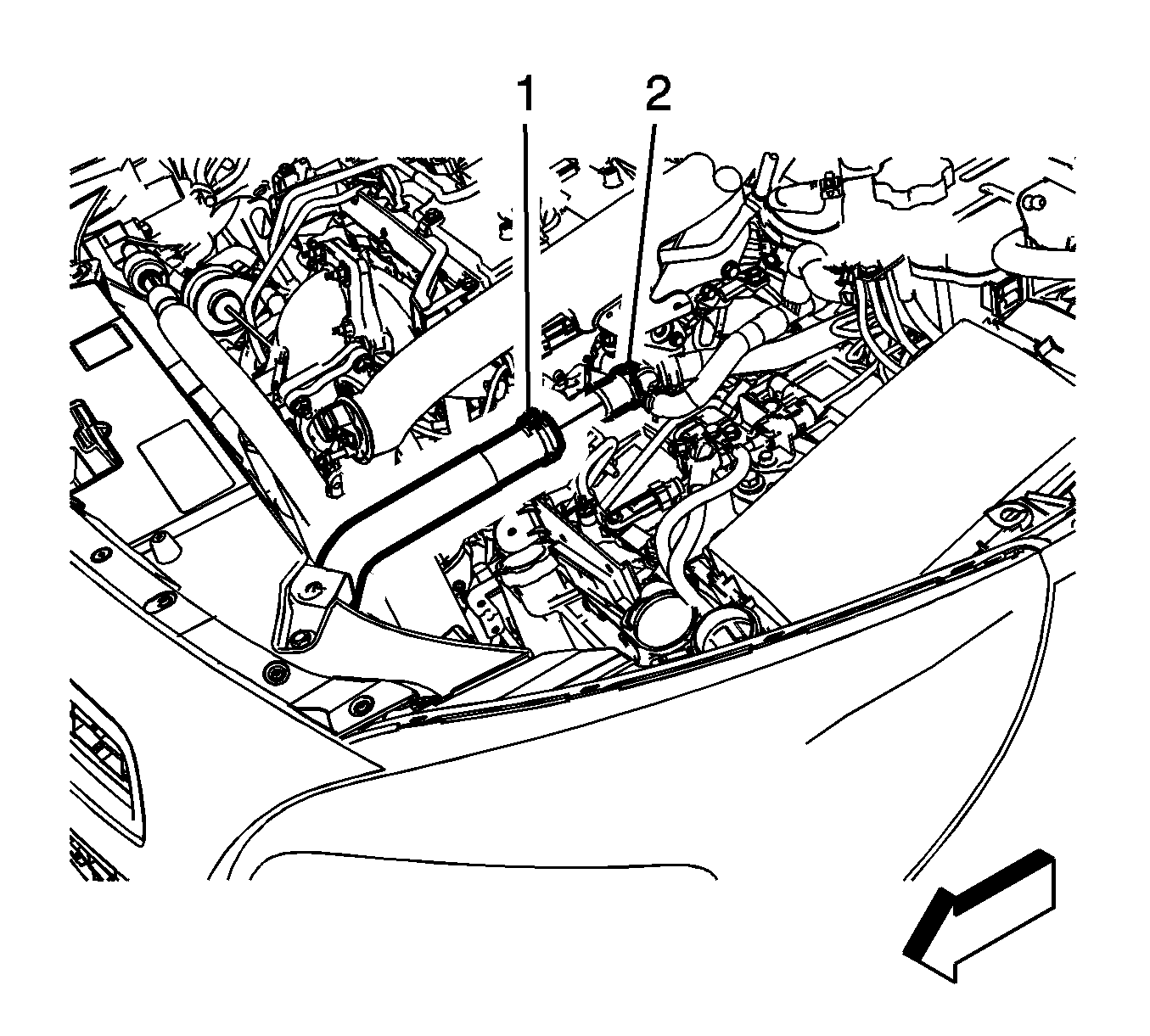

    2. Fig 2: Radiator Inlet Hose And Water Outlet
    GM2865056Courtesy of GENERAL MOTORS COMPANY
  2. Install the radiator inlet hose (1) to the water outlet (2).
  3. Install the battery tray. Refer to Battery Tray Replacement .
  4. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
  5. Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
  6. Start the engine and check for coolant leaks.
