Radiator Air Upper Baffle and Deflector Replacement (LEA, LTG)

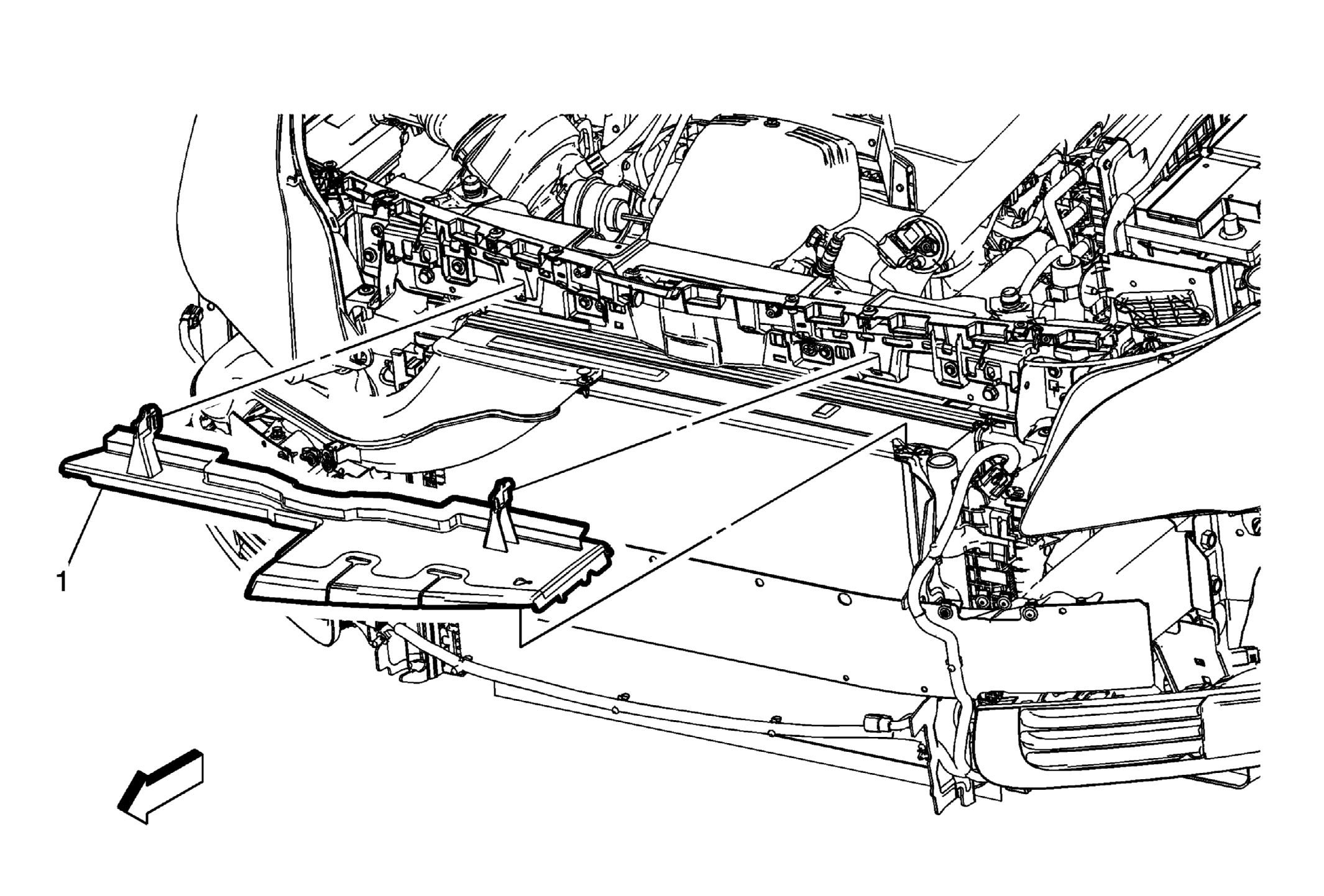

Fig 1: Radiator Air Upper Baffle and Deflector (LEA, LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the front intake air duct deflector. Refer to Front Intake Air Duct Deflector Replacement . Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
1	Radiator Air Upper Baffle and Deflector Procedure Unclip the left radiator air side upper baffle from the radiator air upper baffle and deflector.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the front intake air duct deflector. Refer to Front Intake Air Duct Deflector Replacement .
Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .

Radiator Air Upper Baffle and Deflector
Procedure
Unclip the left radiator air side upper baffle from the radiator air upper baffle and deflector.
