Air Cleaner Inlet Duct Replacement

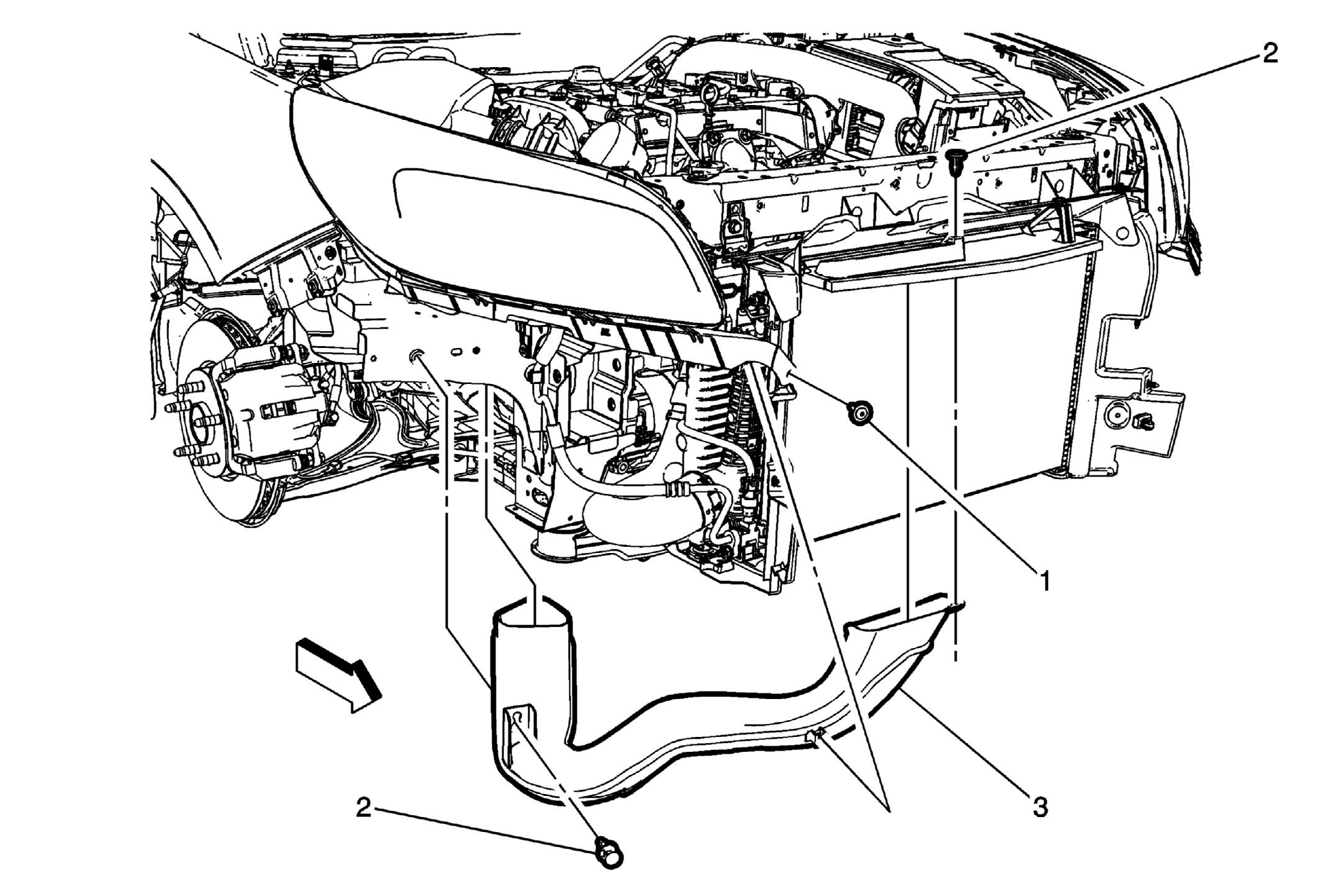

Fig 1: Air Cleaner Inlet Duct (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Air Cleaner Inlet Duct Fastener CAUTION: Refer to Fastener Caution .
2	Air Cleaner Inlet Duct Retainer (Qty:3)
3	Air Cleaner Inlet Duct NOTE: Remove the front intake air duct and deflector together as an assembly. Separate after the assembly is removed from the vehicle.
