Engine Coolant Fan Replacement (LEA, LTG)

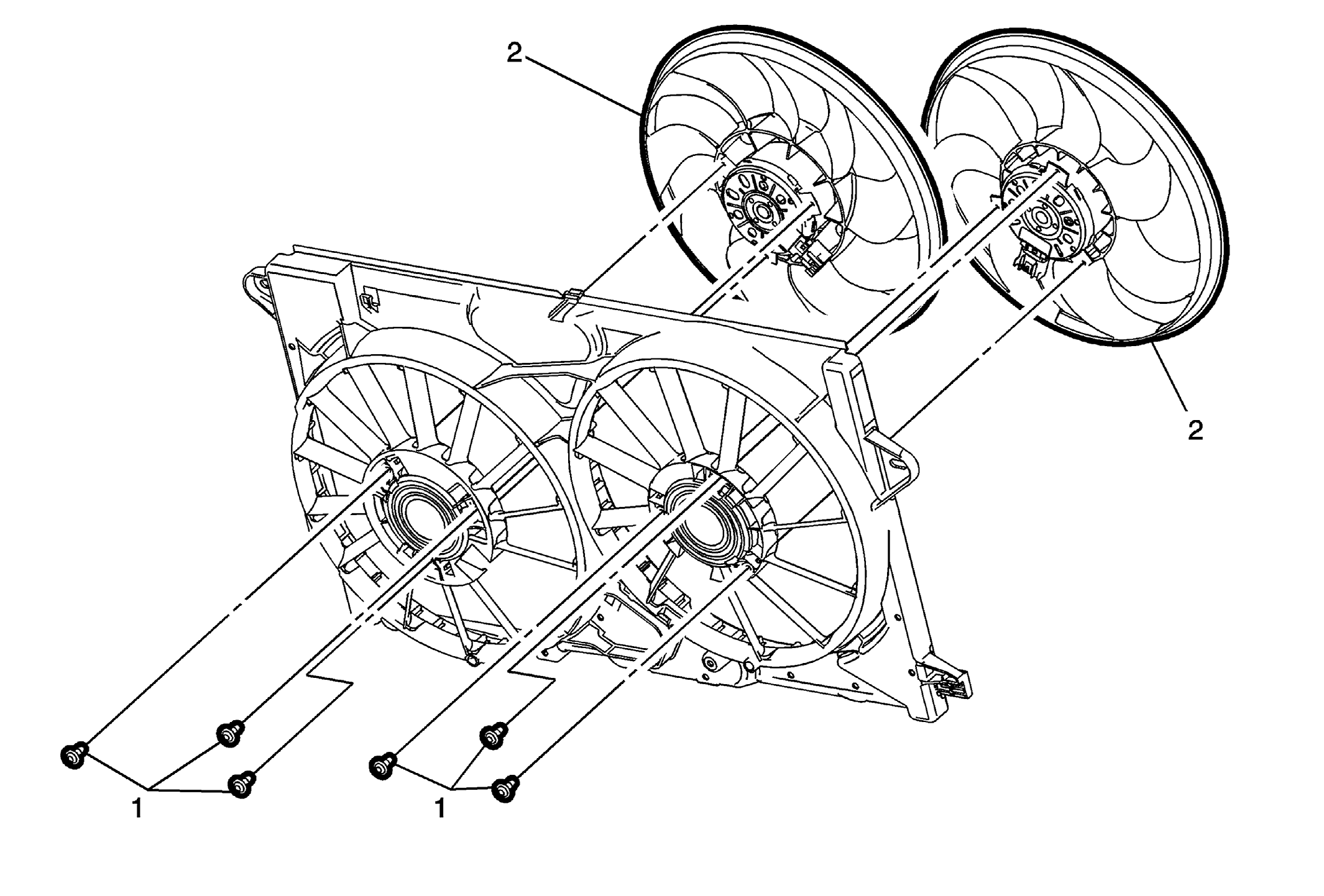

Fig 1: Engine Coolant Fans & Fasteners (LEA, LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the engine coolant fan shroud from the vehicle. Refer to Engine Coolant Fan Shroud Replacement (LEA)  or Engine Coolant Fan Shroud Replacement (LTG) .
1	Engine Coolant Fan Fastener (Qty:6) (Qty:3 Per Fan Assembly) CAUTION: Refer to Fastener Caution .
2	Engine Coolant Fan (Qty:2)
