Ignition and Start Switch Replacement (Without BTM)

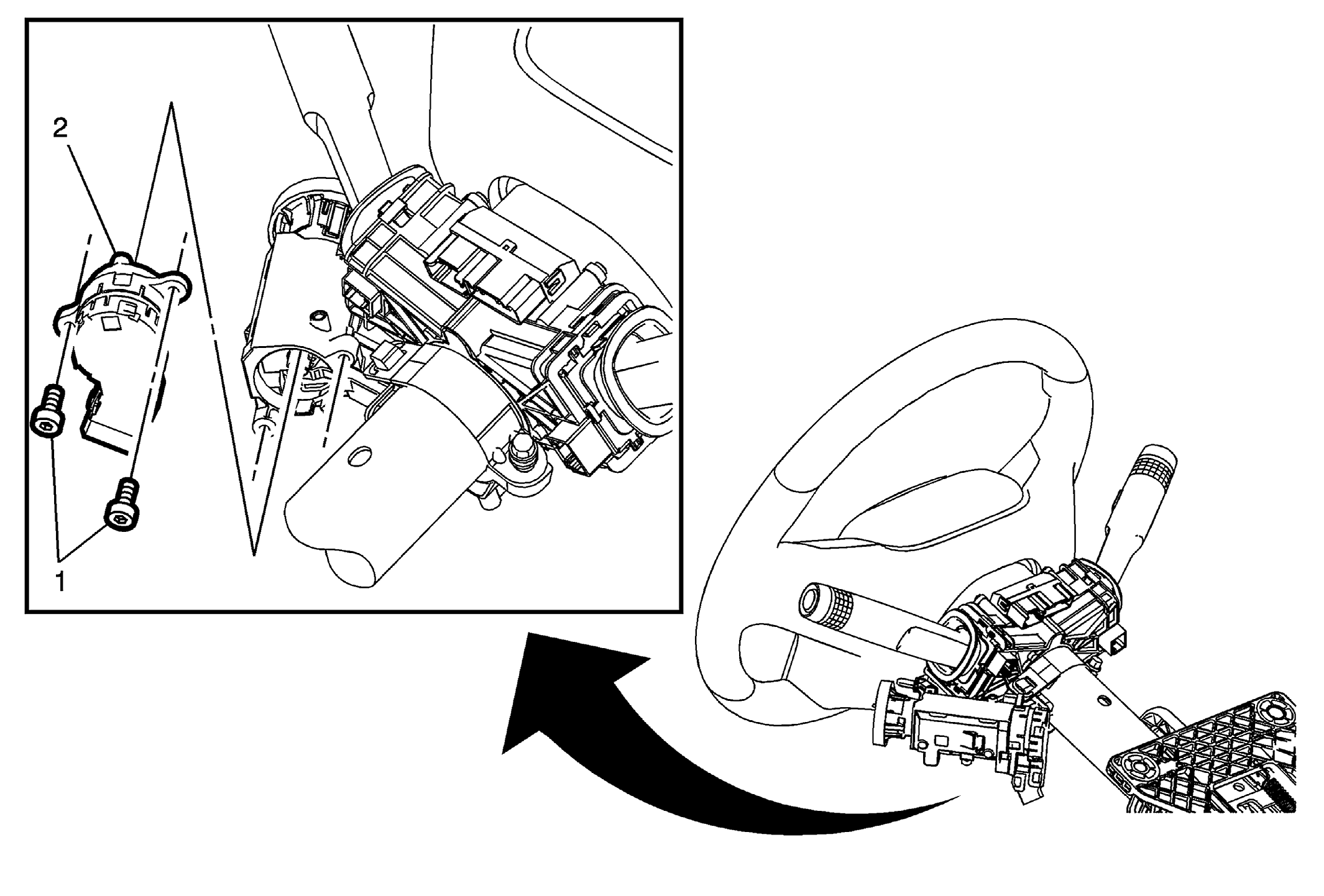

Fig 1: Ignition And Start Switch (Without BTM)
GM2739388Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Battery Negative Cable Disconnection and Connection
  2. Steering Column Trim Cover Replacement
1 Ignition and Start Switch Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Ignition and Start Switch
Procedure
Disconnect the electrical connector.

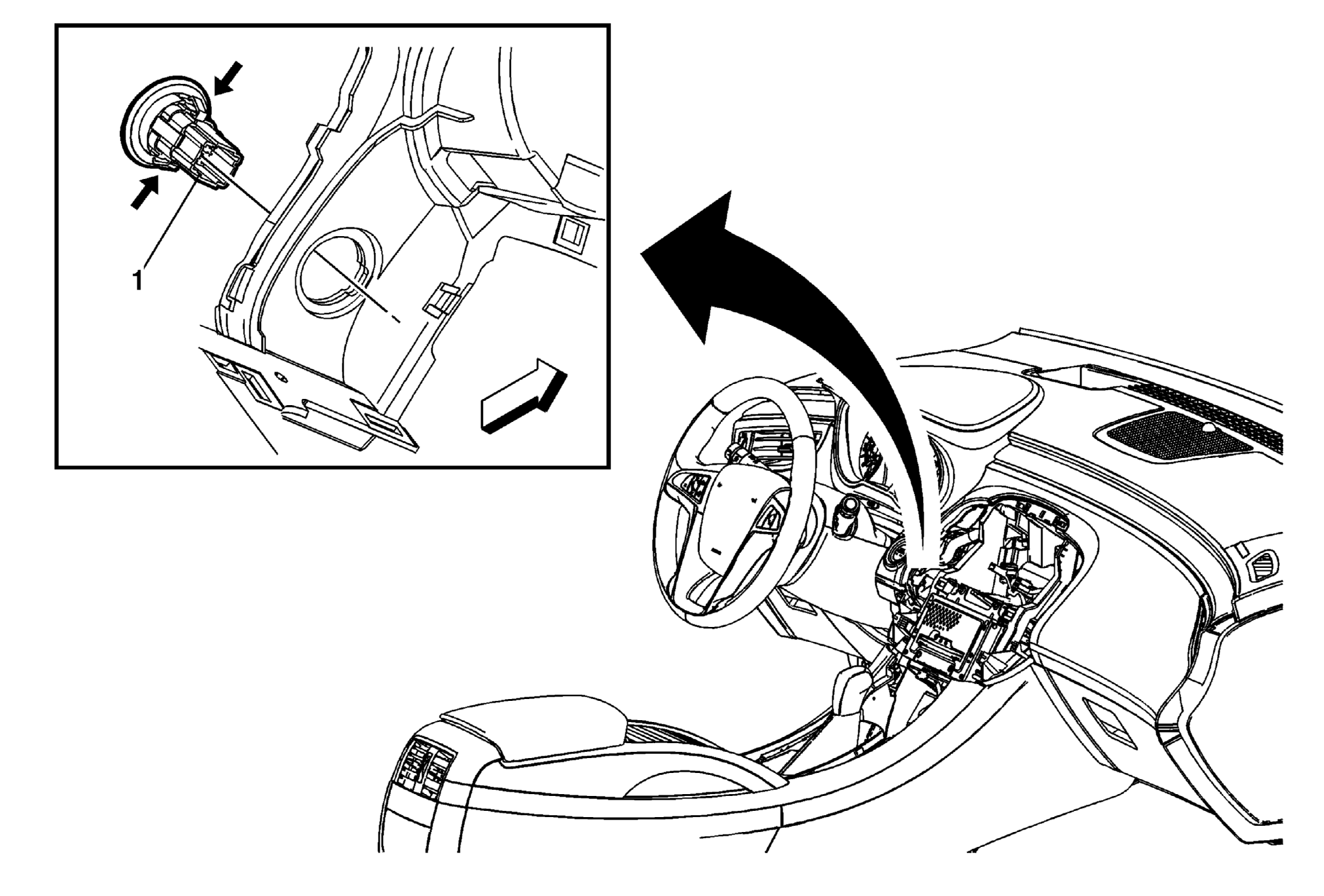

Fig 1: Ignition And Start Switch (Without BTM)
GM2199439Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1 Ignition and Start Switch
  1. Disconnect the electrical connector.
  2. Push in the tabs to release the ignition and start switch.
