Instrument Panel Upper Center Trim Panel Replacement

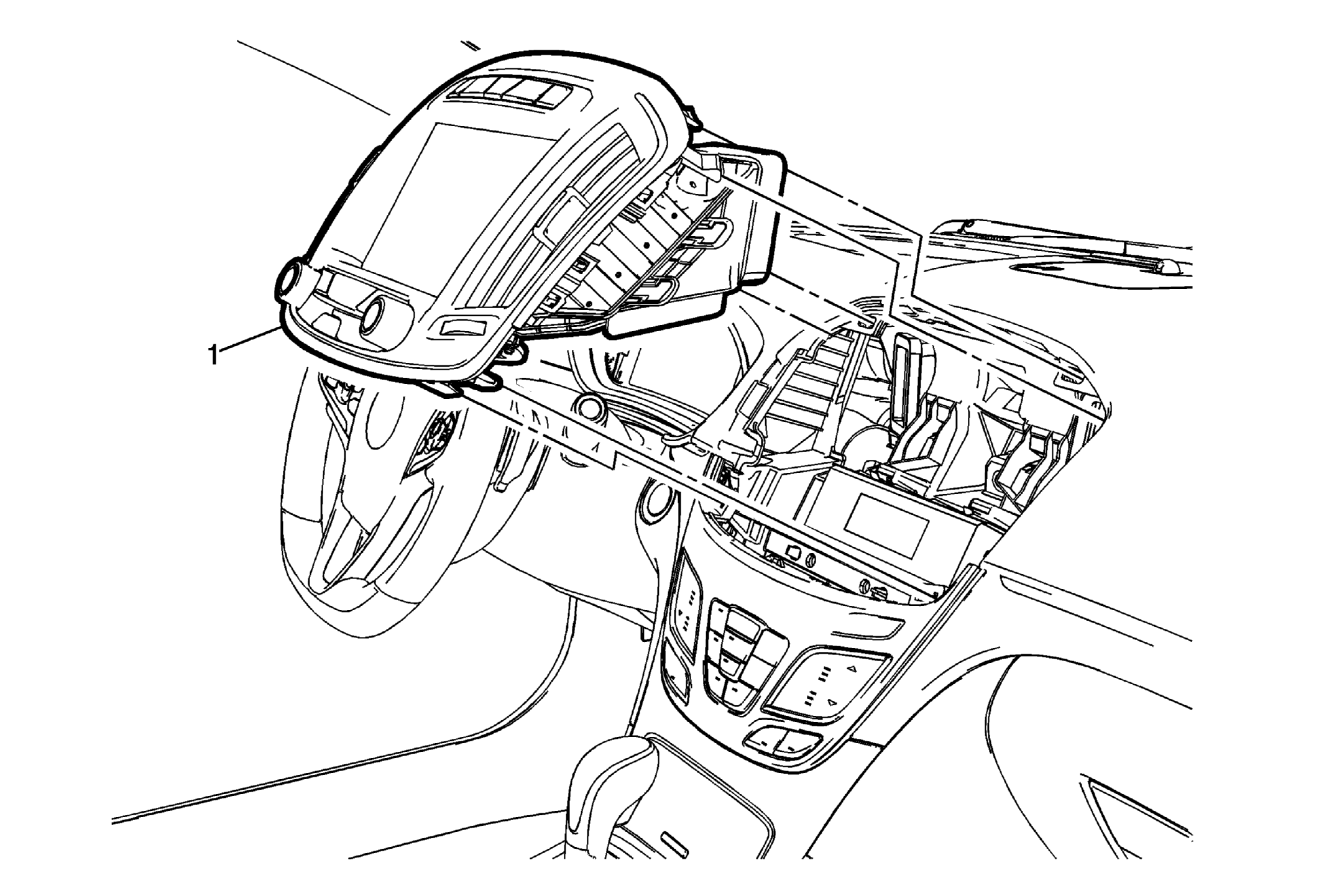

Fig 1: Instrument Panel Upper Center Trim Panel

GM3406452

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Instrument Panel Upper Center Trim Panel

Procedure

Use a flat-bladed plastic trim tool in order to release the retaining clips securing the instrument panel upper center trim panel to the instrument panel. Start to release the center trim panel in the lower outer area.
Disconnect the electrical connections.
When replacing the instrument panel upper center trim panel, transfer all necessary parts.
