Front Side Door Window Weatherstrip Replacement

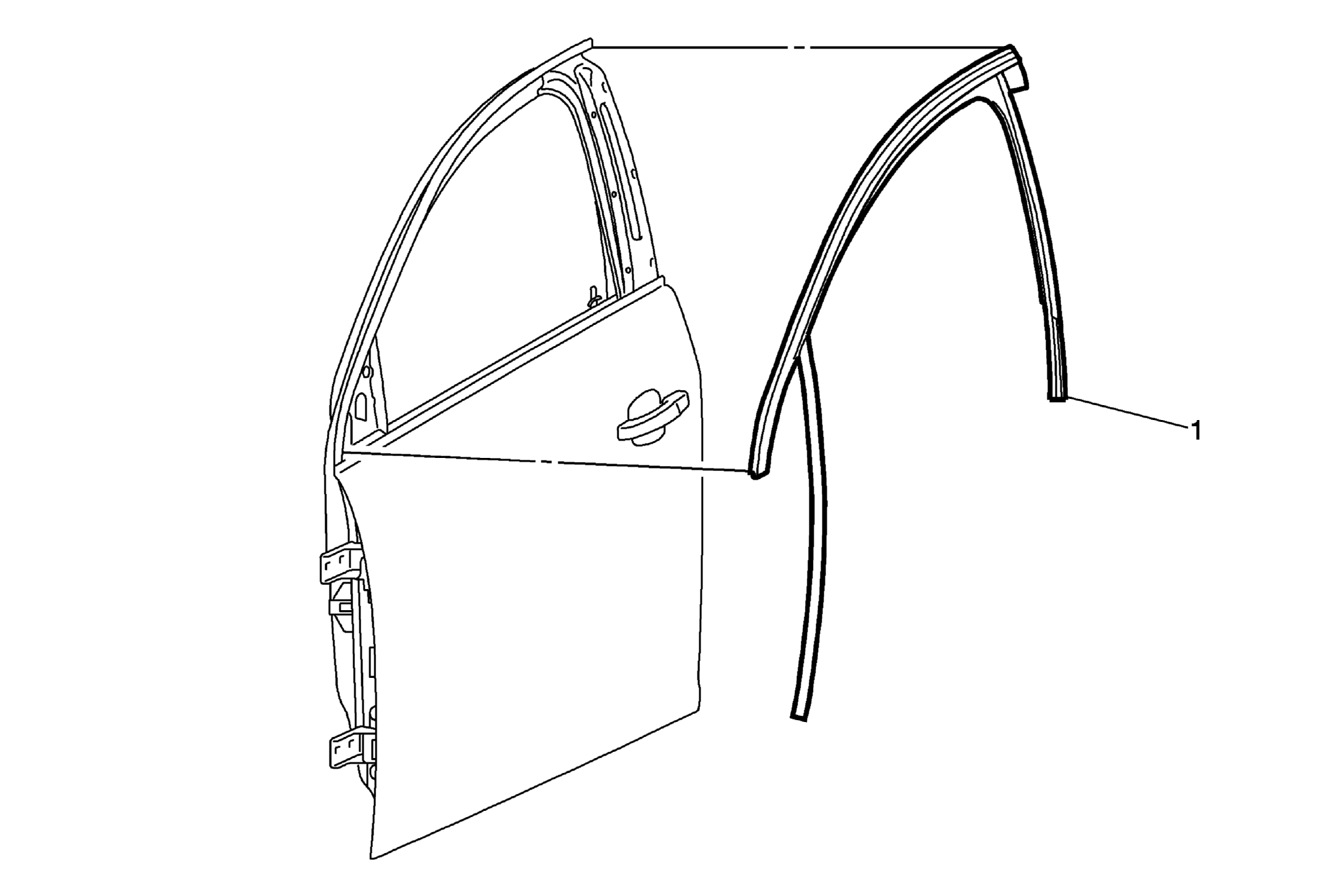

Fig 1: Front Side Door Window Weatherstrip
GM2019733Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the front side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .
  3. Remove the front side door window frame garnish molding. Refer to Front Side Door Window Frame Garnish Molding Replacement .
  4. Remove the front side door window frame rear cover. Refer to Front Side Door Window Frame Rear Cover Replacement .
1 Front Side Door Window Weatherstrip

Procedure

  1. Refit corner retainers.
  2. Pull the front side door window weatherstrip from the window frame to remove.
