Front Side Door Window Frame Rear Cover Replacement

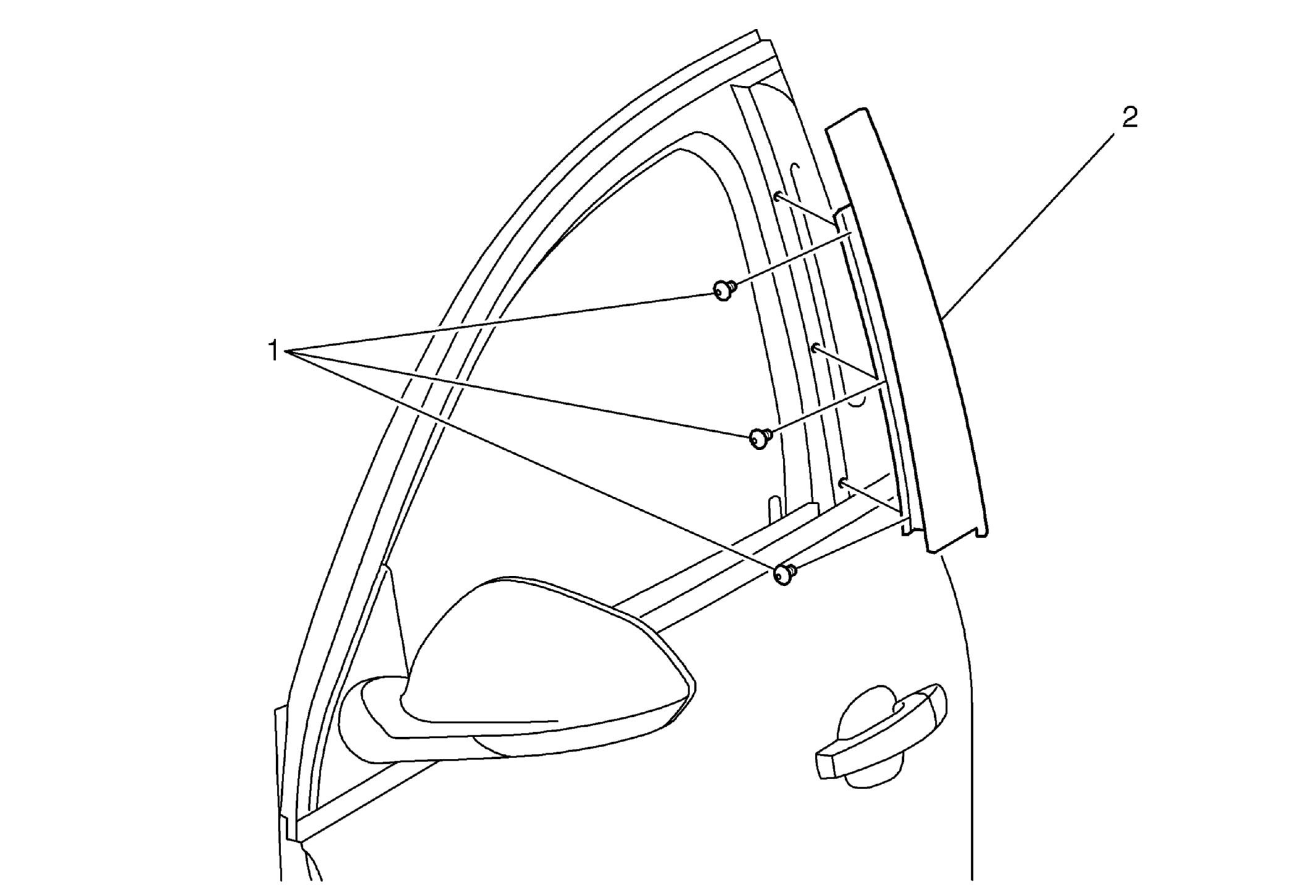

Fig 1: Front Door Frame Rear Cover & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the front door window in the full down position. Remove the front side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .
1	Front Side Door Window Frame Rear Cover Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Procedure Pull the front side door window weatherstrip from the applique to expose the fasteners. Tighten 2 N.m (18 lb in)
2	Front Side Door Window Frame Rear Cover

Callout

Component Name

Preliminary Procedures

Place the front door window in the full down position.
Remove the front side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .

Front Side Door Window Frame Rear Cover Fastener (Qty:3)

CAUTION:

Procedure
Pull the front side door window weatherstrip from the applique to expose the fasteners.
Tighten
2 N.m (18 lb in)

Front Side Door Window Frame Rear Cover
