Front Side Door Window Outer Sealing Strip Replacement

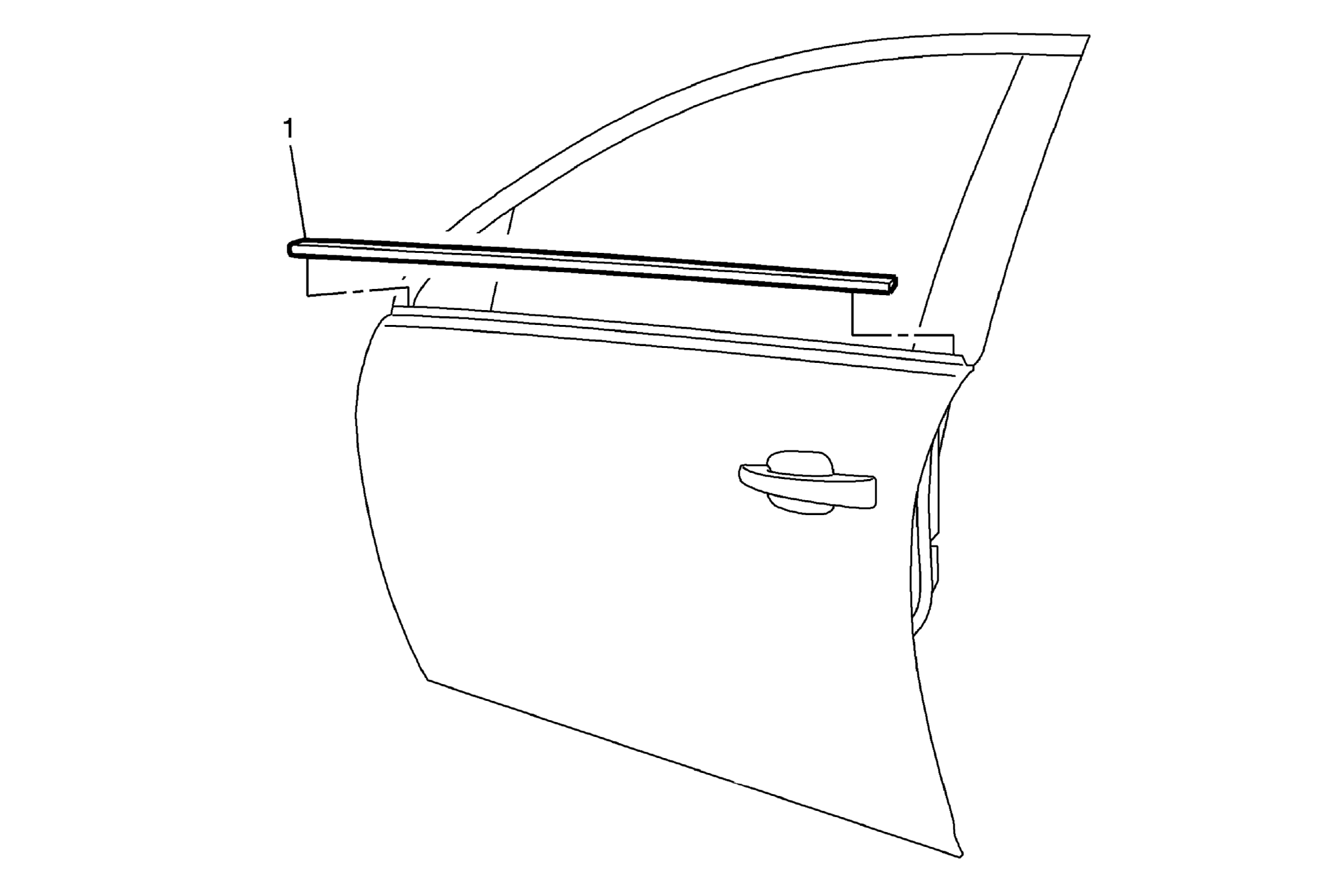

Fig 1: Front Side Door Window Belt Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement .
1	Front Side Door Window Outer Sealing Strip TIP:  Use a small flat-bladed tool to lift the front side door window outer sealing strip up to remove it from the door flange.
