Front Seat Back Pad Replacement (2/4/6-Way Power)

Preliminary Procedure

1. Remove driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) .
2. Remove front seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport) .
3. Remove front seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement (8-Way-Power) .
4. Remove front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without AHS) .
5. Remove seat head restraint adjust rod guide. Refer to Front Seat Head Restraint Guide Replacement .
6. Remove driver or passenger seat side inflatable restraint module. Refer to Front Seat Outboard Seat Back Airbag Replacement .

Procedure

1. Detach cushion from backrest side left side.
2. Detach cushion from backrest at bottom.
3. Detach side airbag.
4. Detach cushion at backrest backside both sides.
5. Remove cushion and cushion pad from backrest frame include airbag.
6. Pull out seat side inflatable restraint module from front seat back cushion pad.

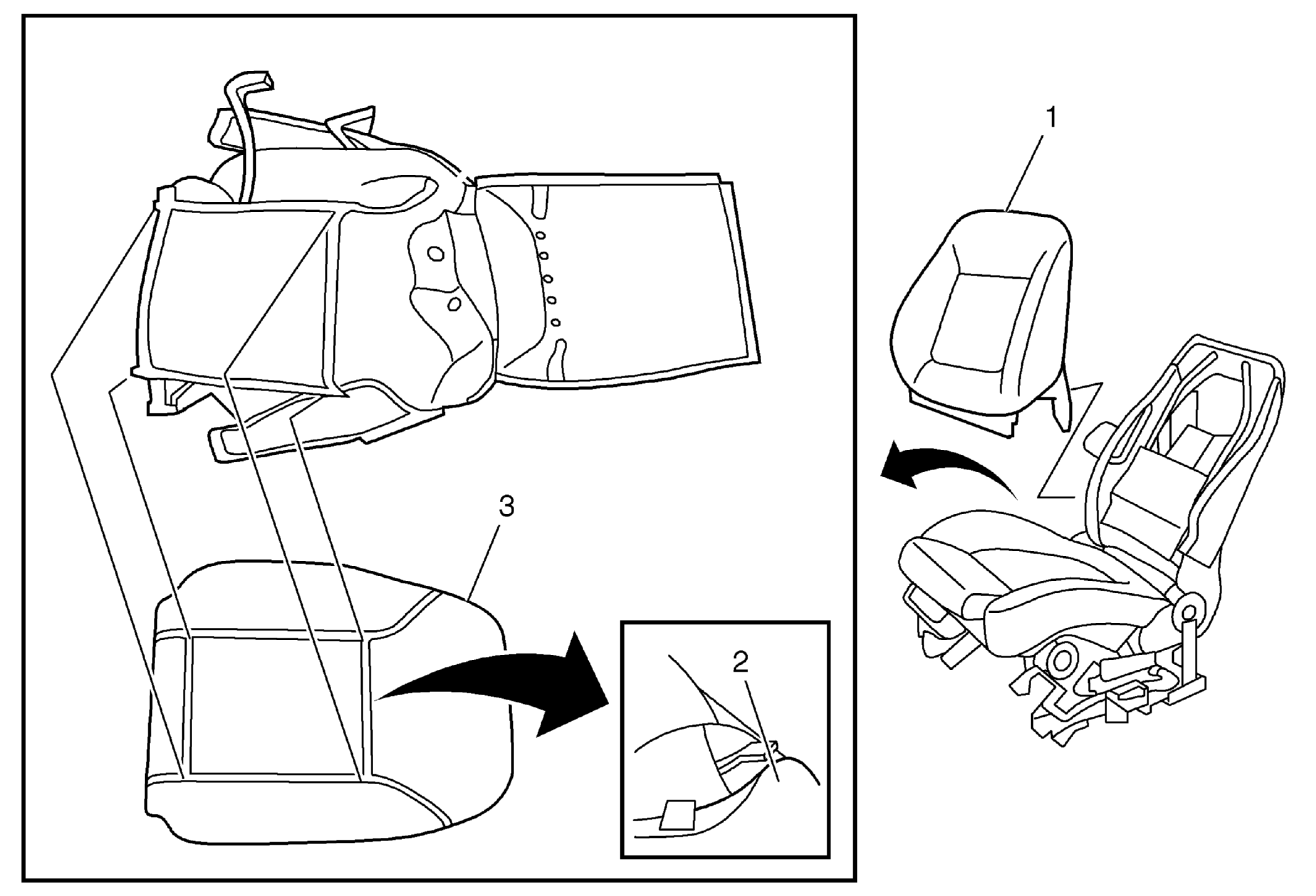

Procedure

1. Remove cushion from cushion pad 16 hog rings.
2. Remove seat back cushion heater.
3. Remove back cushion vent mat.
