Front Seat Head Restraint Guide Replacement

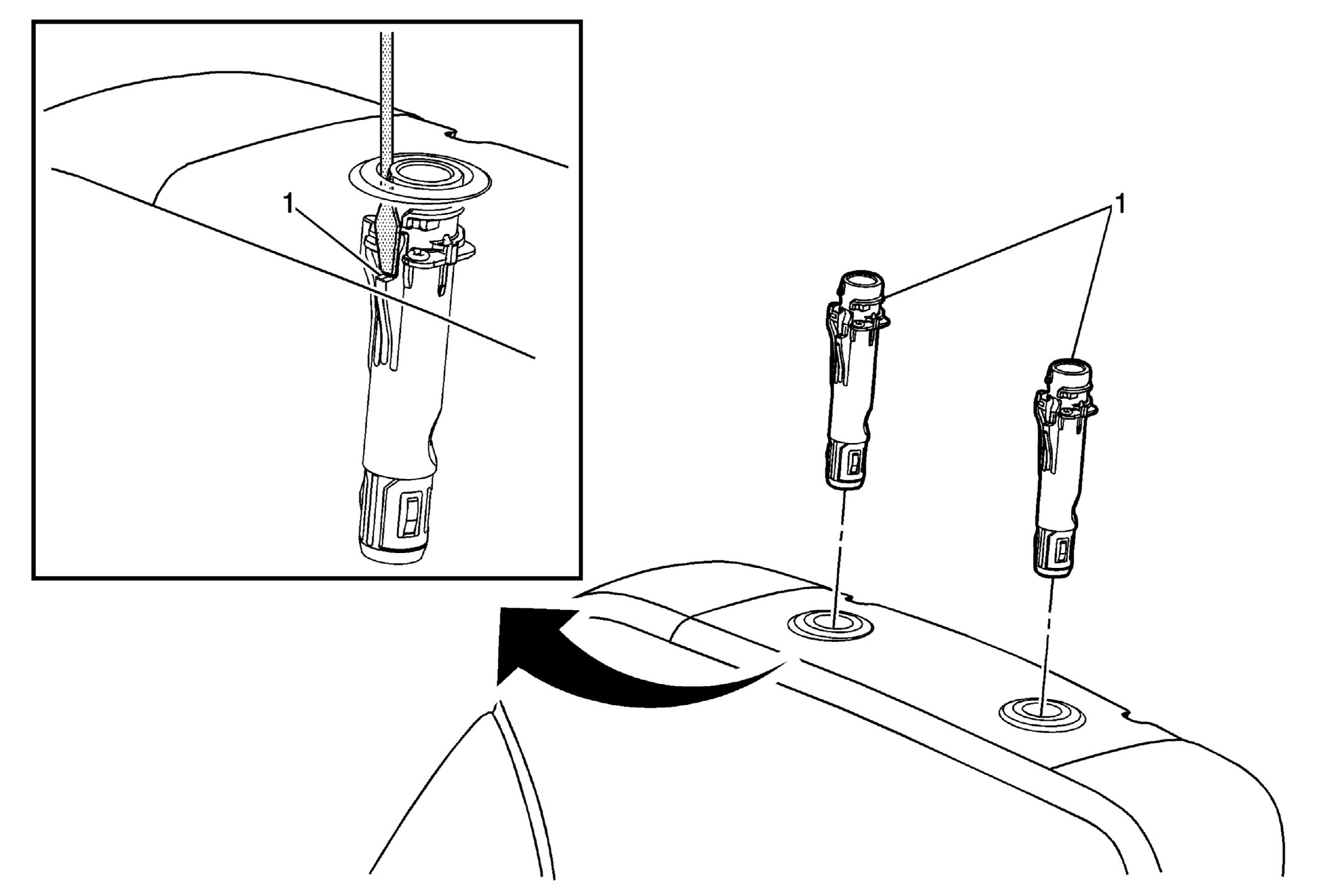

Fig 1: Identifying Front Seat Head Restraint Adjust Rod Guides

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the driver or passenger seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without AHS) .
1	Driver or Passenger Seat Head Restraint Adjust Guide (Qty:2) Procedure  Using a suitable flat-bladed tool, slide the tool on the outside of the guide until it finds the slot. Then push the plastic slot inward and pull up upward to remove the guide from the seat back frame.
