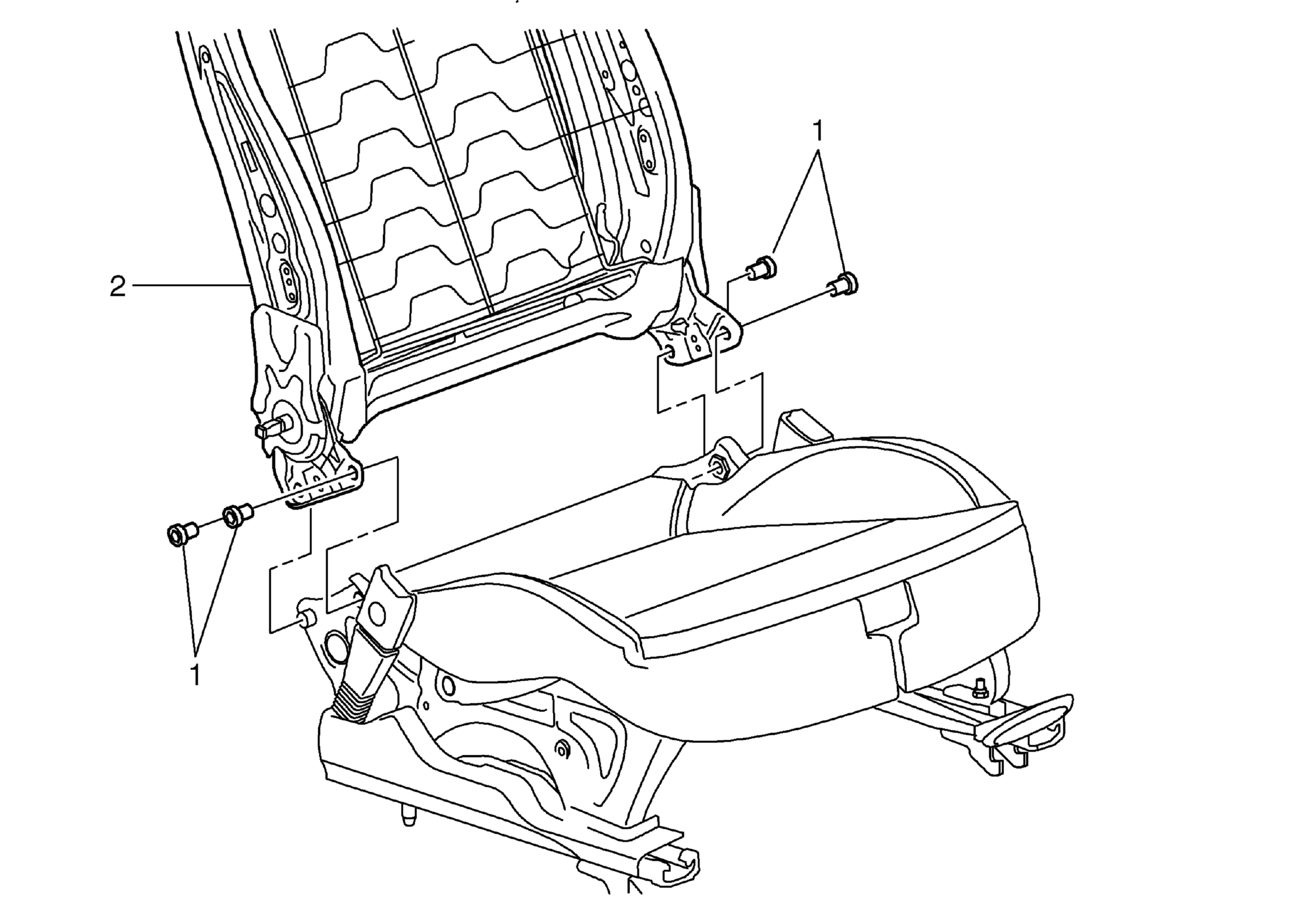

Driver or Passenger Seat Back Cushion Frame Replacement (6-Way Power)

Preliminary Procedures

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
2. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) .
3. Remove the front seat recliner lever. Refer to Driver or Passenger Seat Recliner Lever Replacement .
4. Remove the front seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (8-Way Power) .
5. Remove the driver or passenger seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport) .
6. Remove the front seat head restraint guide bezel. Refer to Front Seat Head Restraint Guide Bezel Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport) .
7. Remove the front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without AHS) .
8. Remove the front seat head restraint adjust rod guide. Refer to Front Seat Head Restraint Guide Replacement .
9. Remove the front seat back cushion pad. Refer to Front Seat Back Pad Replacement (8-Way Power) .
10. Remove the front seat lumbar support. Refer to Driver or Passenger Seat Lumbar Support Replacement (Driver/Passenger Seat Electric Lumbar) .
