Driver or Passenger Seat Recliner Lever Replacement

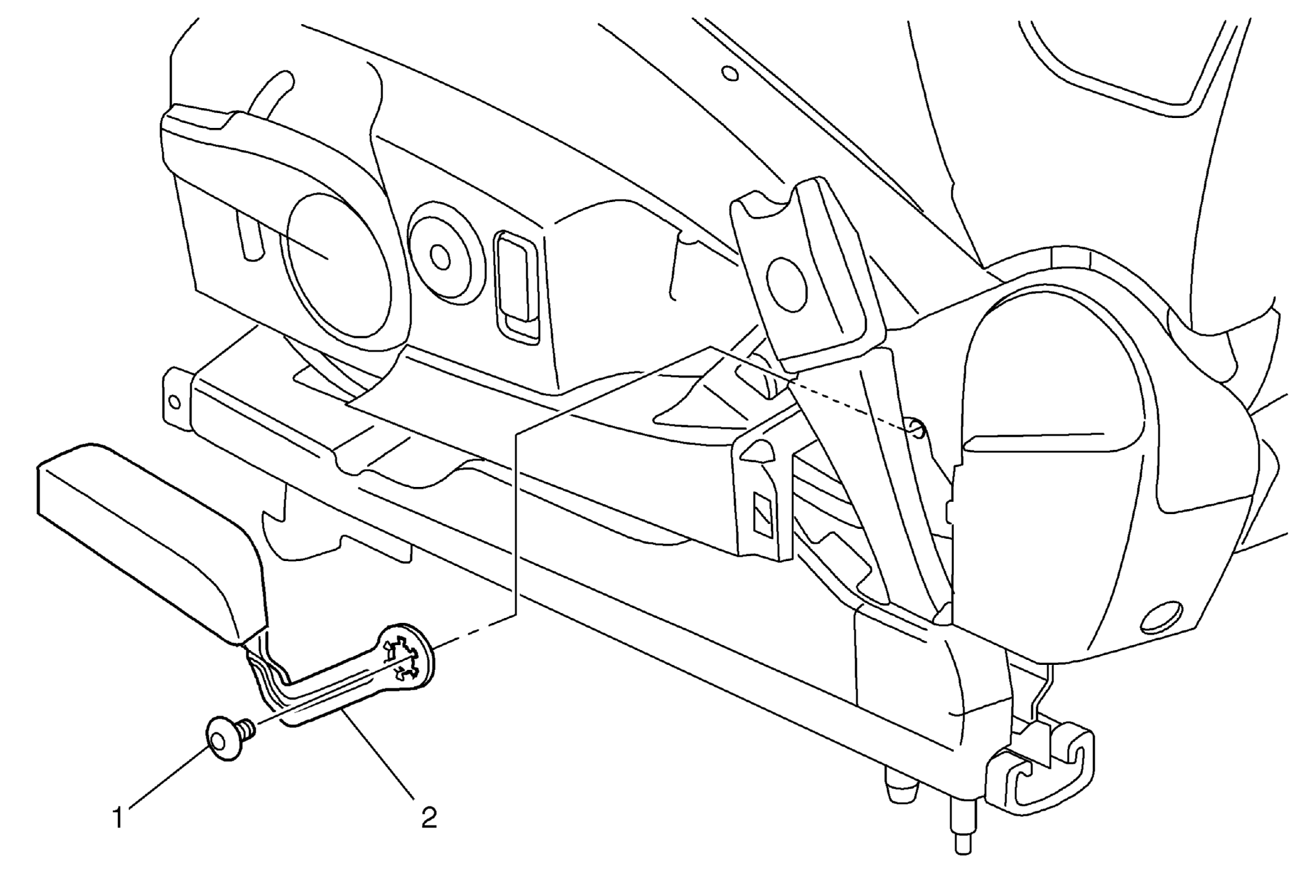

Fig 1: Driver Or Passenger Seat Recliner Lever & Fastener
GM2019816Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove front seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (8-Way Power) .
1 Driver or Passenger Seat Recliner Lever Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft)
2 Driver or Passenger Seat Recliner Lever
