Front and Rear Side Door Sill Trim Plate Replacement

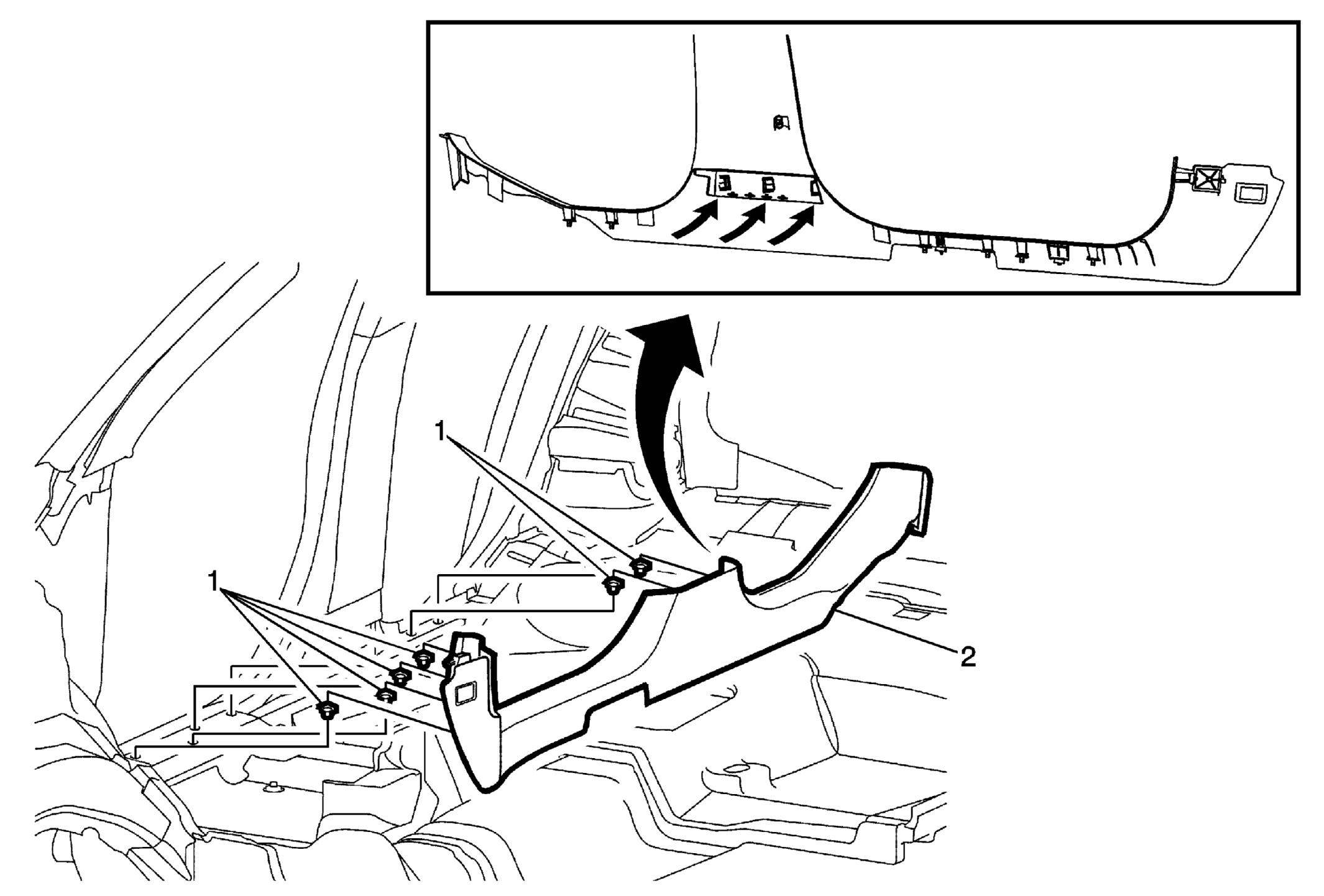

Fig 1: Front and Rear Side Door Sill Trim Plate & Retainers
GM2581172Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the driver or passenger front seat. Refer to Driver or Passenger Seat Removal and Installation (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) .
1 Front and Rear Side Door Sill Trim Plate Retainer (Qty:6)
2 Front and Rear Side Door Sill Trim Plate

Procedure

  1. Use a small flat-bladed tool to carefully disengage 3integral clips that mate the center pillar lower trim panel to the front and rear side door sill trim plate.
  2. Disconnect the electrical connector.
