Instrument Panel Compartment Door Assembly Replacement

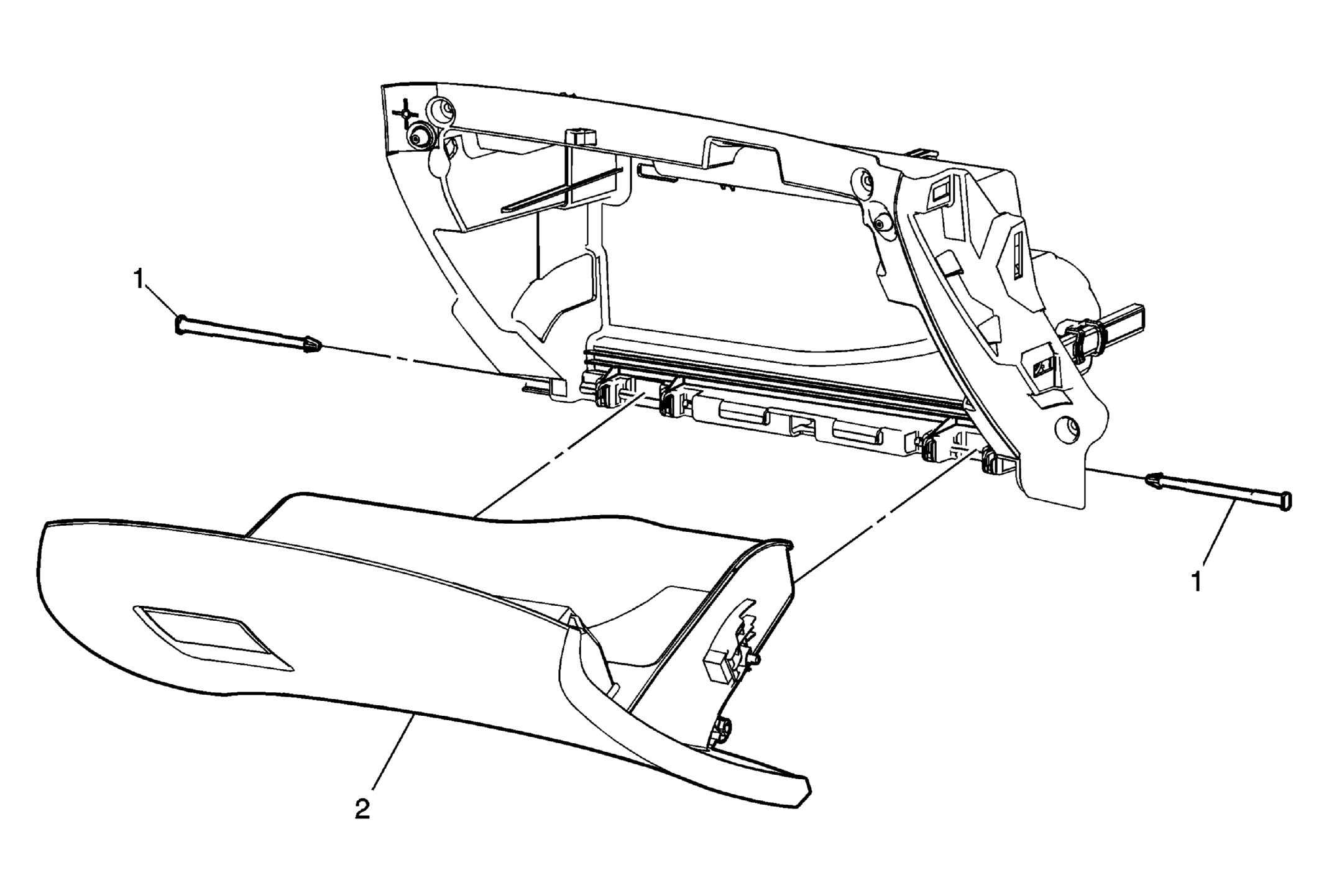

Fig 1: Instrument Panel Compartment Door Assembly & Hinge Pins

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement . Disconnect the compartment door dampener. Refer to Instrument Panel Compartment Door Dampener Replacement .
1	Instrument Panel Compartment Door Hinge Pin (Qty:2) Procedure Use an appropriate tool in order to remove the door hinge pins.
2	Instrument Panel Compartment Door Assembly

Callout

Component Name

Preliminary Procedures

Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement .
Disconnect the compartment door dampener. Refer to Instrument Panel Compartment Door Dampener Replacement .

Instrument Panel Compartment Door Hinge Pin (Qty:2)
Procedure
Use an appropriate tool in order to remove the door hinge pins.

Instrument Panel Compartment Door Assembly
