Instrument Panel Compartment Door Dampener Replacement

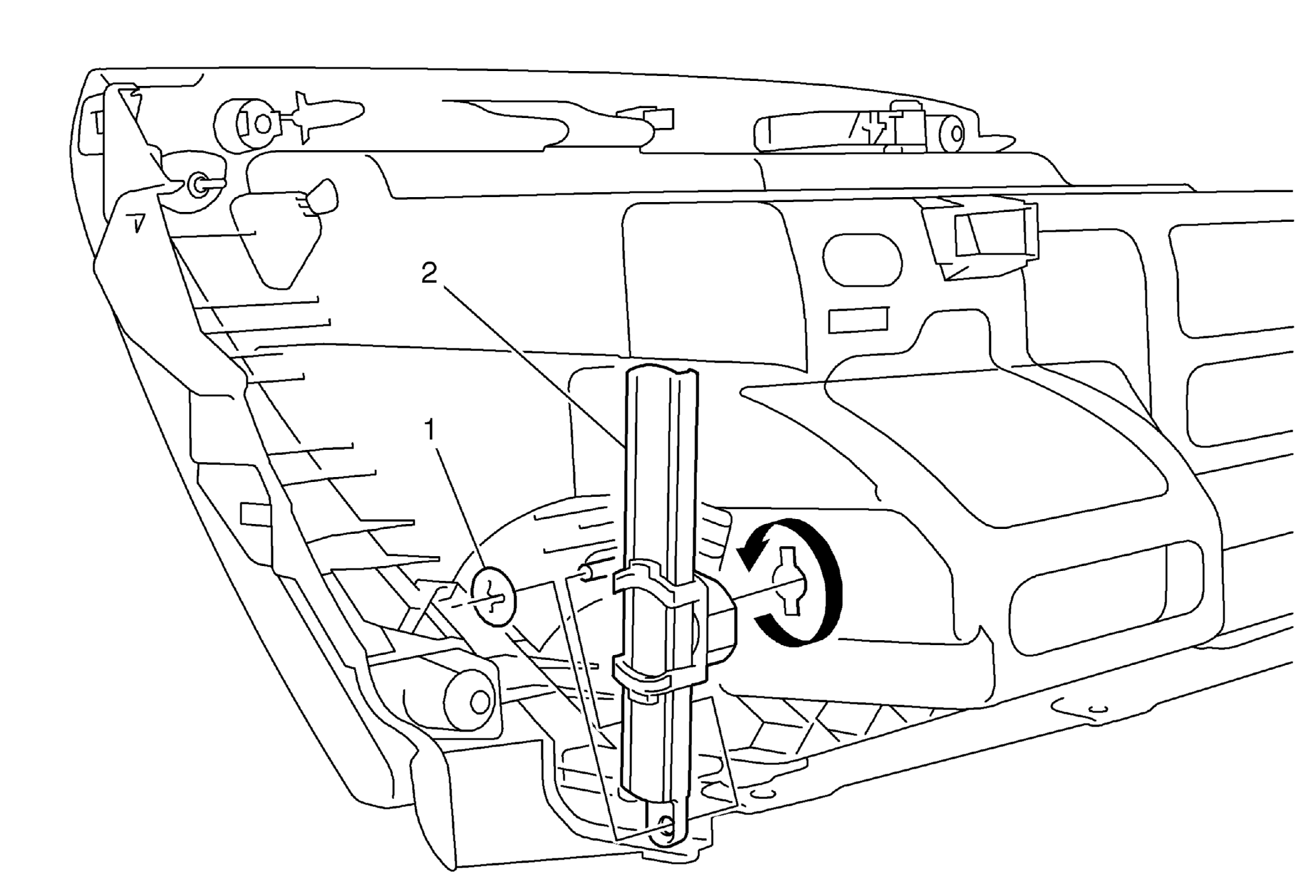

Fig 1: Instrument Panel Compartment Door Dampener & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement .
1	Instrument Panel Compartment Door Dampener Fastener CAUTION: Refer to Fastener Caution .
2	Instrument Panel Compartment Door Dampener Procedure  Twist and pull the compartment door dampener from the instrument panel compartment assembly.
