Front Floor Panel Carpet Replacement

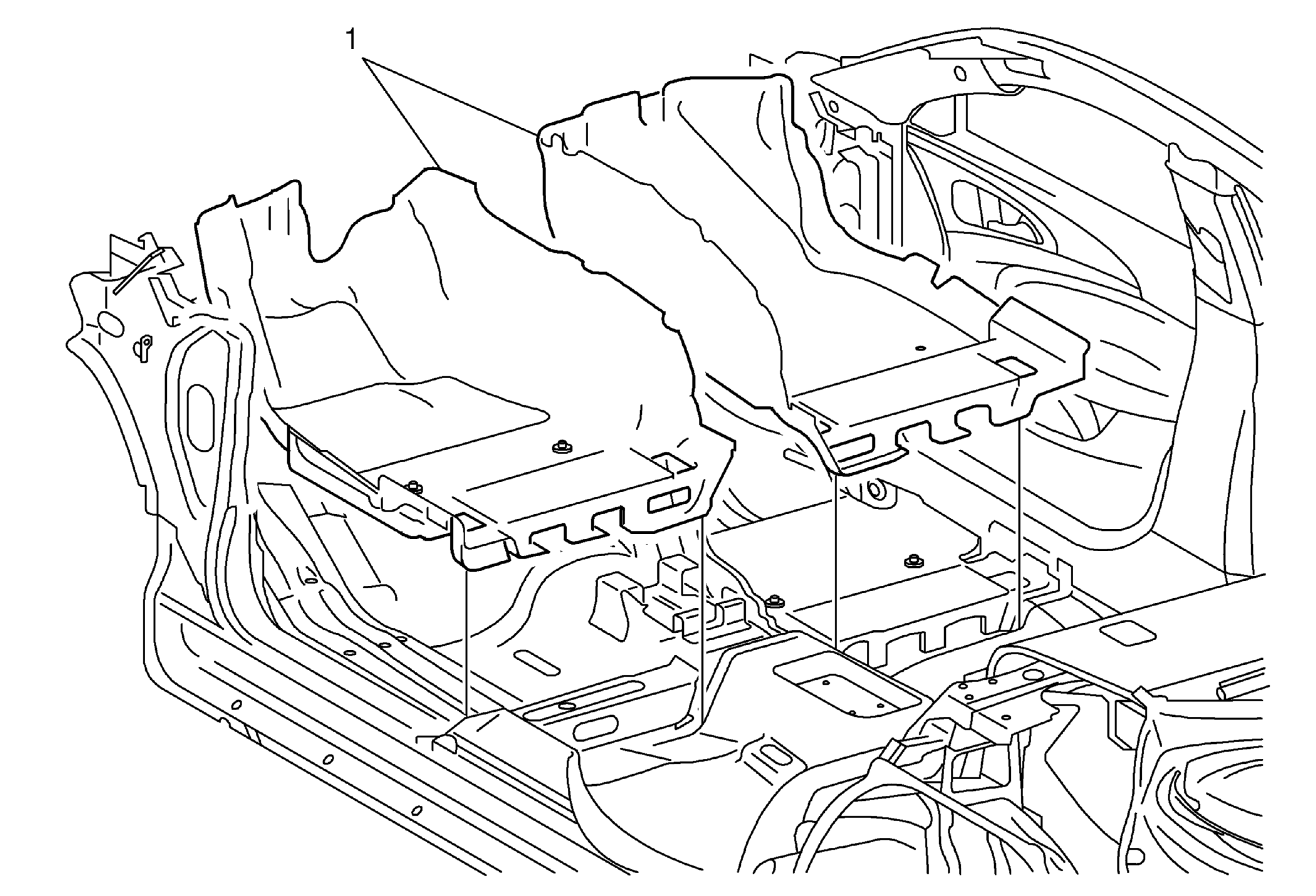

Fig 1: Front Floor Panel Carpet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) . Remove the front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement . Remove the front and rear side door sill trim plate. Refer to Front and Rear Side Door Sill Trim Plate Replacement .
1	Front Floor Panel Carpet Assembly NOTE: Insert carpet panel behind instrument panel trim as required.

Callout

Component Name

Preliminary Procedures

Front Floor Panel Carpet Assembly

NOTE:

Insert carpet panel behind instrument panel trim as required.
