Rear Side Door Auxiliary Weatherstrip Replacement

Preliminary Procedures

1. Remove the lower center pillar trim. Refer to Center Pillar Lower Trim Panel Replacement .
2. Remove the body lock pillar lower trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
3. Remove the front and rear side door sill plate. Refer to Front and Rear Side Door Sill Trim Plate Replacement .

Procedures

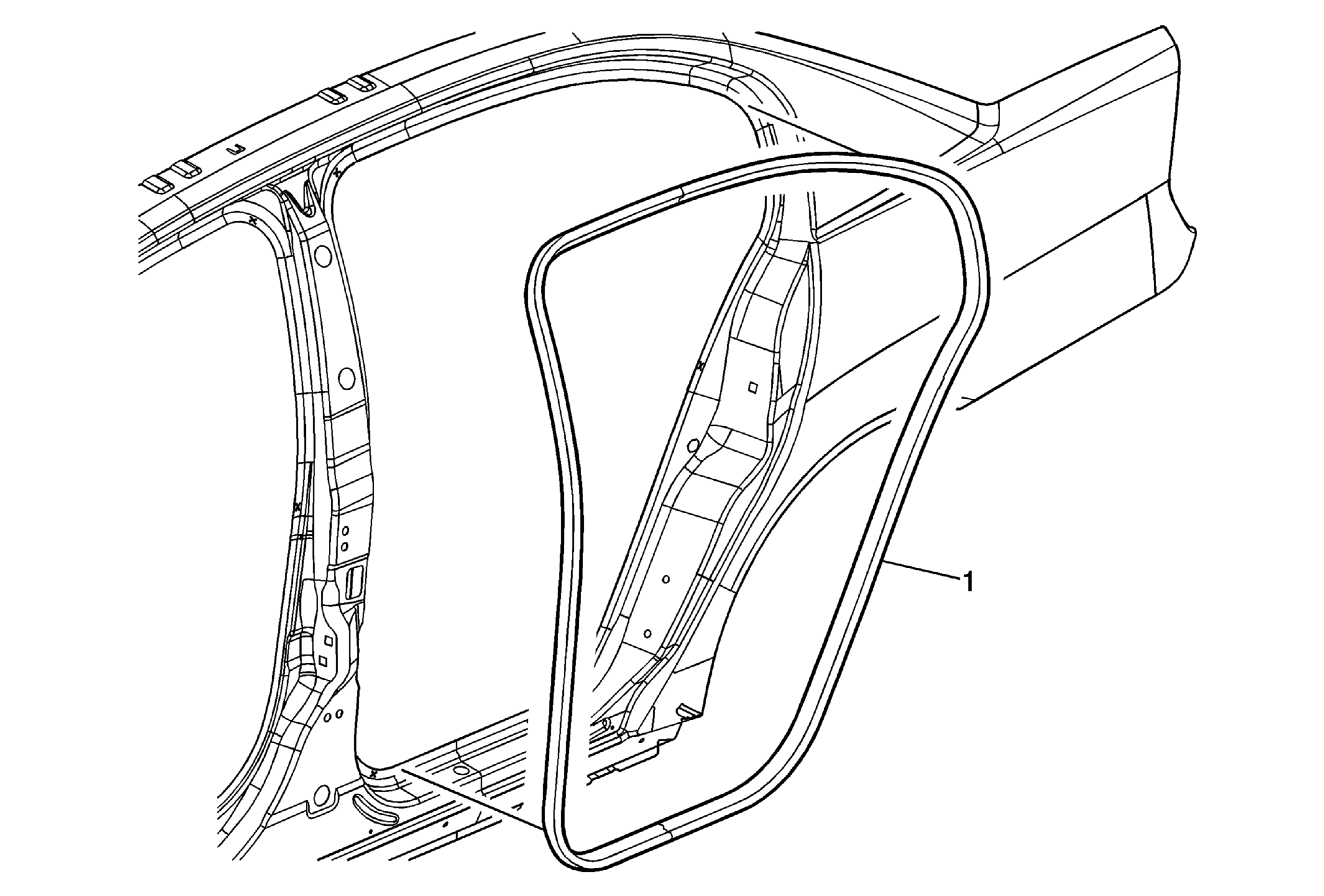

1. Starting in the center bottom of the weatherstrip, pull the weatherstrip upward and away from the pinch-weld flange.
2. Start in the center bottom of the pinch-weld flange.
3. Ensure that the weatherstrip and retainers are fully seated on the flange before installing the rear carpet retainer.
4. Inspect the door for proper operation.
