Center Pillar Lower Trim Panel Replacement

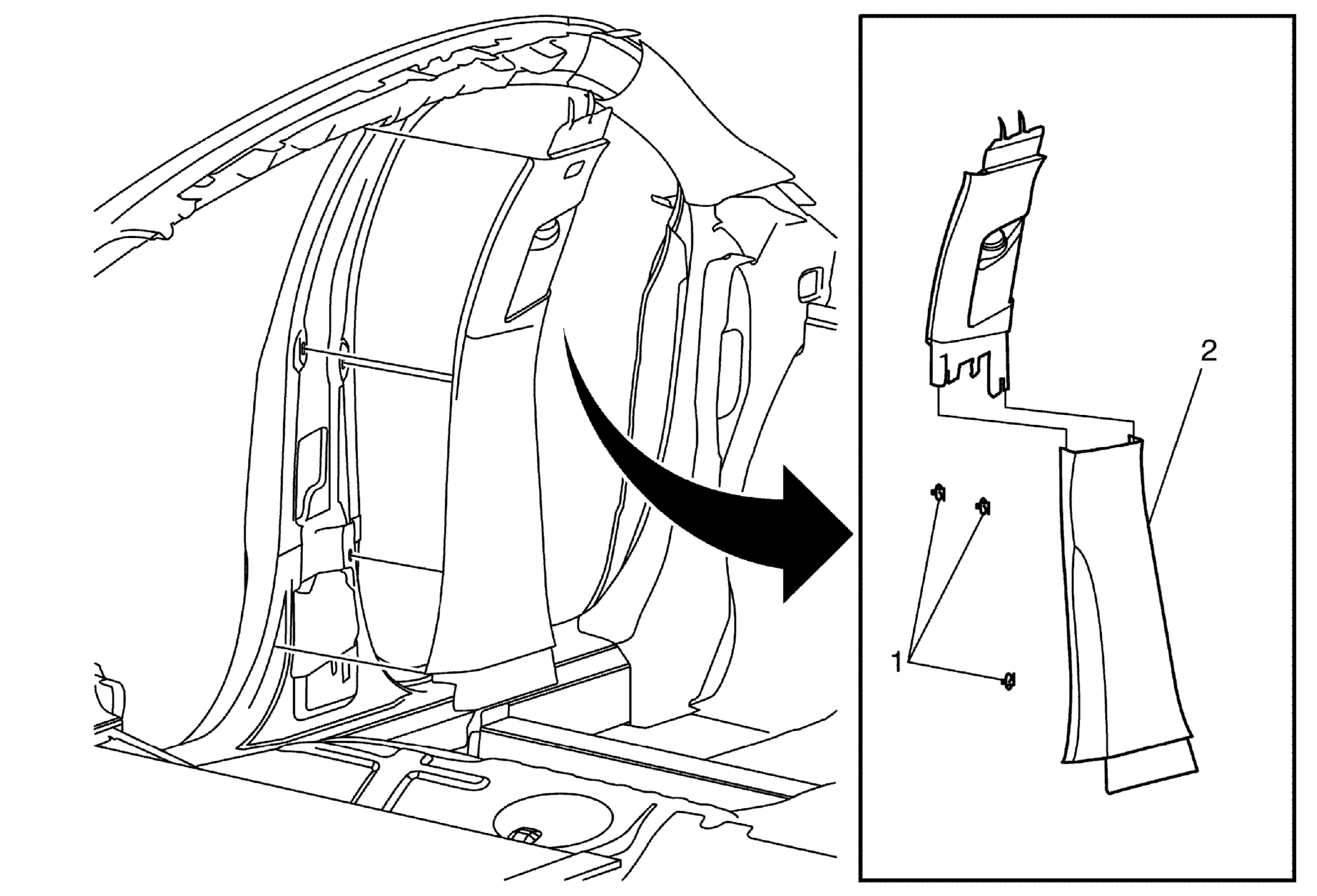

Fig 1: Center Pillar Lower Trim Panel & Retainers
GM2019736Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front and rear side door sill trim plate. Refer to Front and Rear Side Door Sill Trim Plate Replacement .
  2. Move seat to full forward position.
1 Center Pillar Lower Trim Panel Retainer (Qty:3)

Procedure

  1. Remove the center pillar upper and lower garnish molding assembly as one piece.
  2. Release the locking retainer on the rear side of the center pillar upper garnish molding to separate the upper from the lower.
2 Center Pillar Lower Trim Panel
