Rear Compartment Lid Hinge Replacement

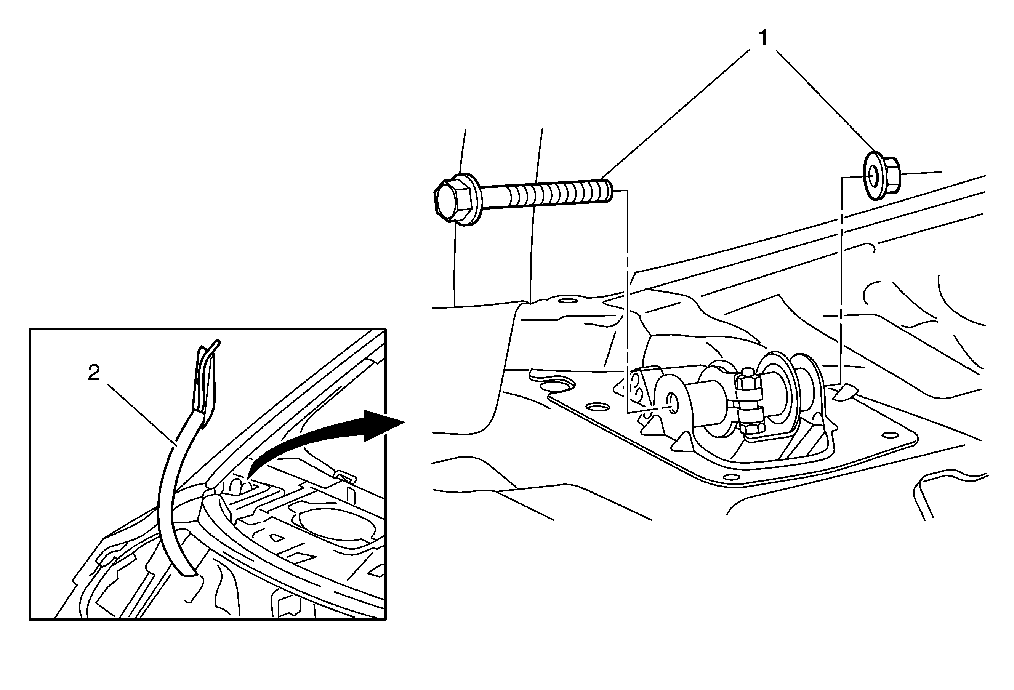

Fig 1: Rear Compartment Lid Hinge & Fastener

GM2020384

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (with HP6) .
Remove the rear compartment lid hinge spring. Refer to Rear Compartment Lid Hinge Spring Replacement .

1

Rear Compartment Lid Hinge Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

2

Rear Compartment Lid Hinge
