Rear Compartment Lid Replacement

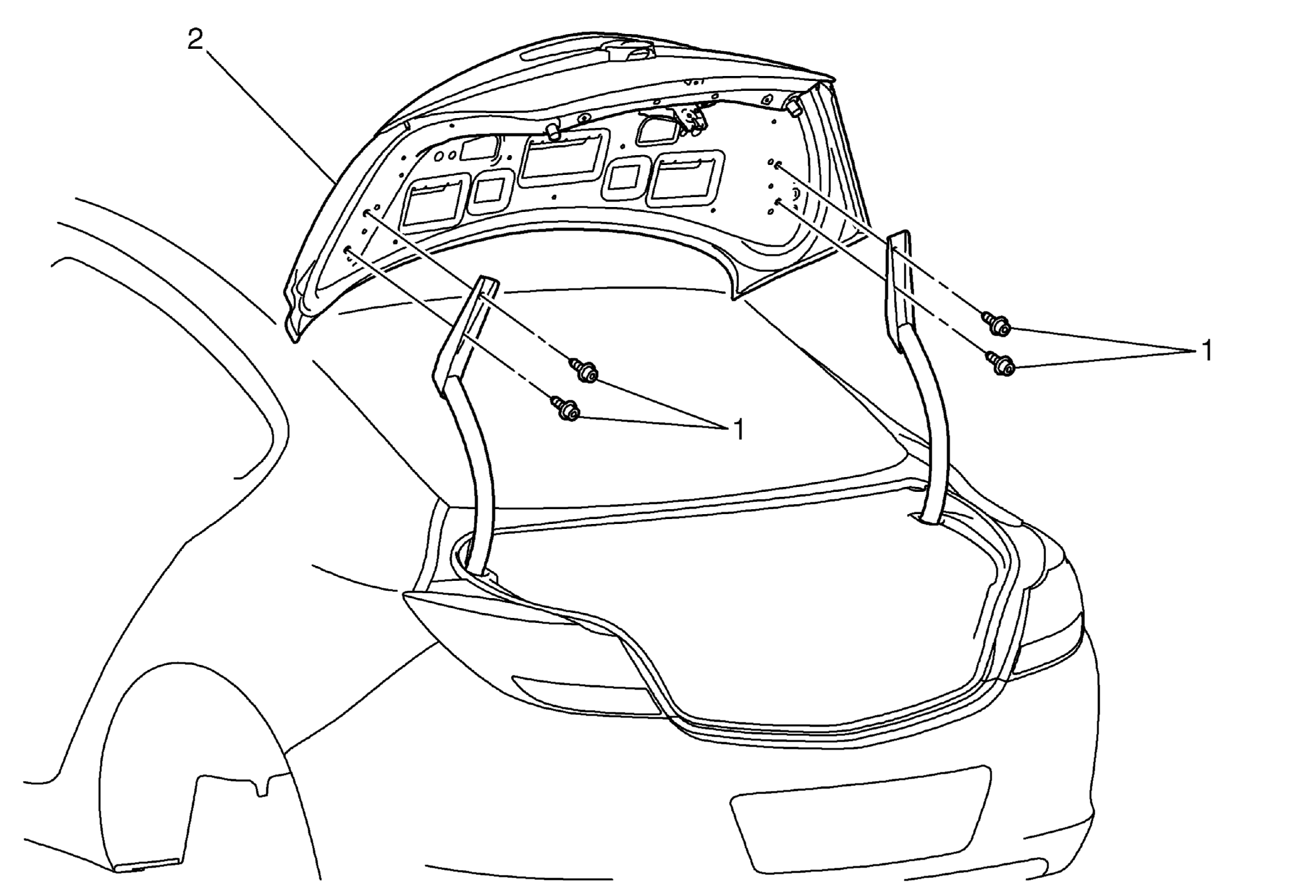

Fig 1: Rear Compartment Lid And Fasteners
GM2019610Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Compartment Lid Fastener (Qty:4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Rear Compartment Lid

Procedure

  1. Disconnect the electrical connector.
  2. Release retainer electrical wiring harness.
  3. Adjust rear compartment lid. Refer to Rear Compartment Lid Adjustment .
  4. Transfer all components on the new rear compartment lid as necessary.
