Rear Window Panel Trim Replacement (without HP6)

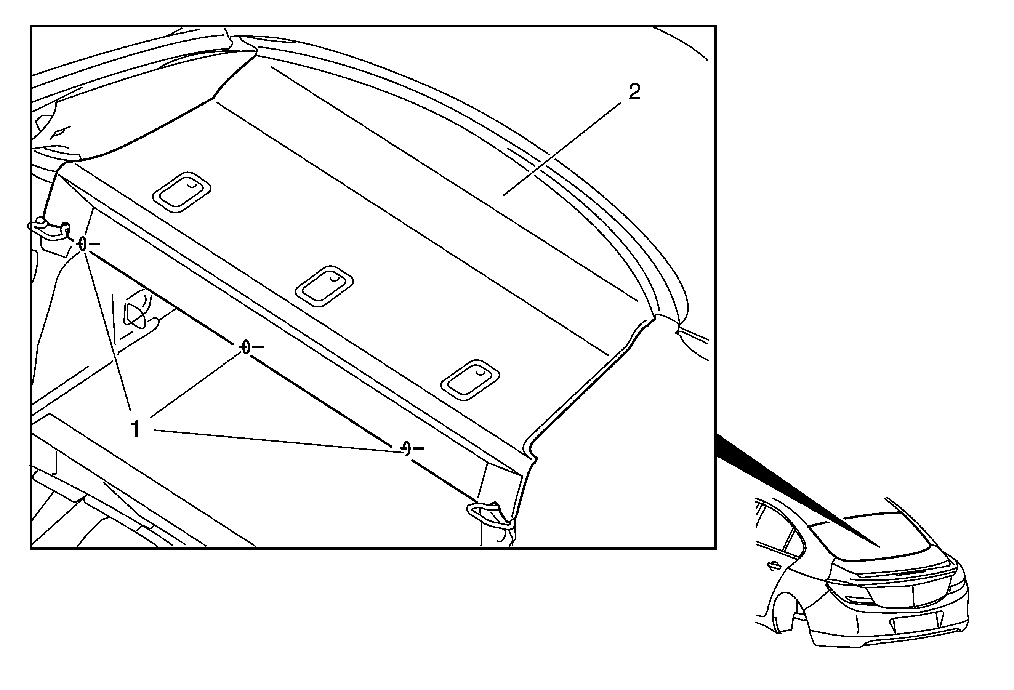

Fig 1: Rear Window Trim Finish Panel & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Fold the rear seat back forward to gain access to the retainers. Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
1	Rear Window Trim Finish Panel Retainer (Qty:3)
2	Rear Window Trim Finish Panel Assembly Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Fold the rear seat back forward to gain access to the retainers.
Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .

Rear Window Trim Finish Panel Retainer (Qty:3)

Rear Window Trim Finish Panel Assembly
Procedure
Disconnect the electrical connector.
