Rear Seat Back Cushion Cover and Pad Replacement (60% Side)

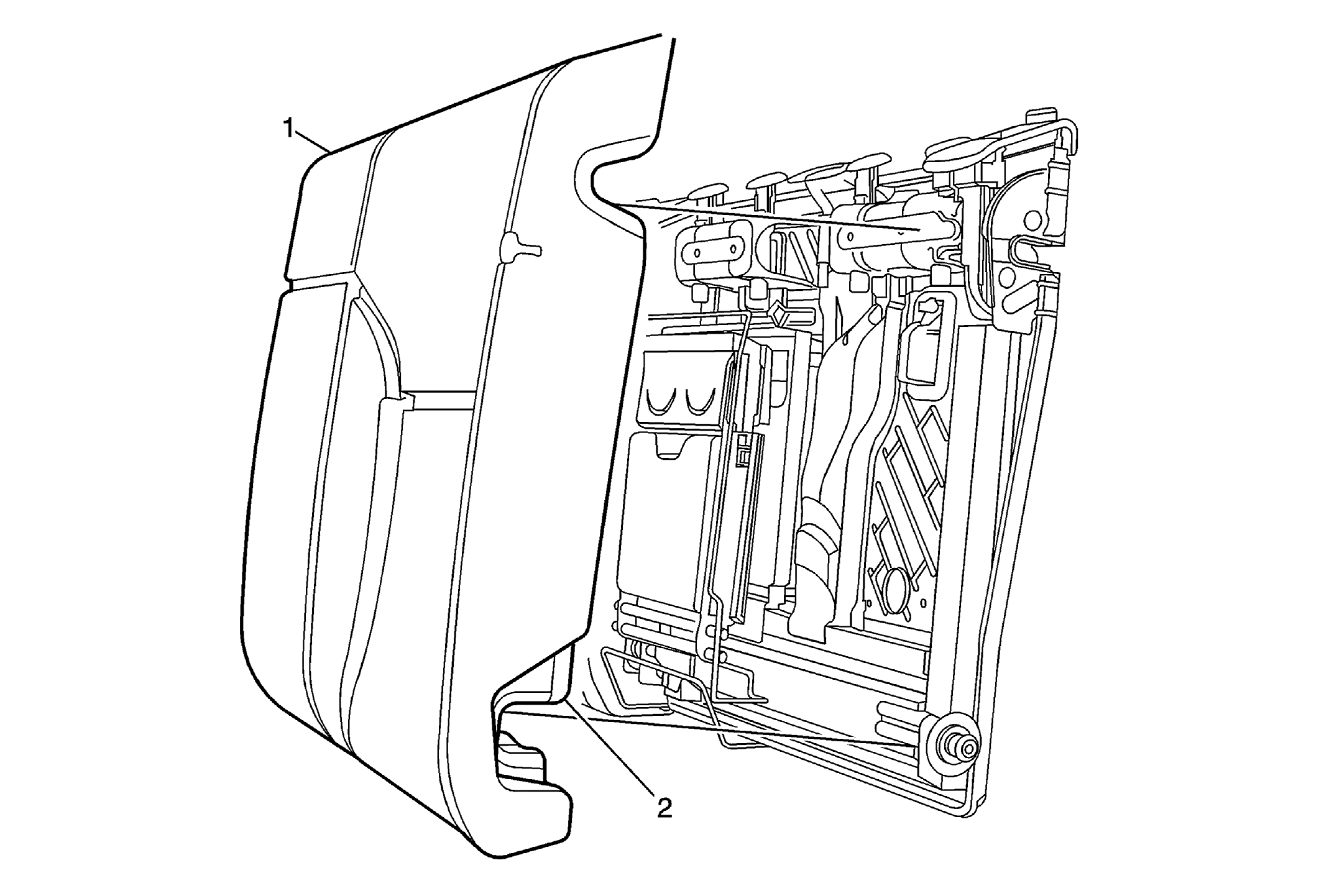

Fig 1: Rear Seat Back Cushion Cover & Pad (60% Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement (60% Side) , Rear Seat Back Cushion Replacement (40% Side) . Remove the rear seat back armrest multifunction compartment. Refer to Rear Seat Armrest Multifunction Compartment Armrest Replacement Remove the rear seat back cushion carpet. Refer to Rear Seat Back Cushion Carpet Replacement (40% Side) , Rear Seat Back Cushion Carpet Replacement (60% Side) . Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement . Remove the rear seat shoulder belt opening cover. Refer to Rear Seat Belt Opening Cover Replacement . Remove the rear seat back cushion latch release handle. Refer to Rear Seat Back Cushion Latch Release Handle Replacement . Remove the rear seat armrest frame bracket. Remove the rear compartment access door.
1	Rear Seat Back Cushion Cover Procedure Remove the hook and loop fasteners that secure the rear seat back cushion cover to the pad.
2	Rear Seat Cushion Pad

Callout

Component Name

Preliminary Procedures

Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement (60% Side) , Rear Seat Back Cushion Replacement (40% Side) .
Remove the rear seat back armrest multifunction compartment. Refer to Rear Seat Armrest Multifunction Compartment Armrest Replacement
Remove the rear seat back cushion carpet. Refer to Rear Seat Back Cushion Carpet Replacement (40% Side) , Rear Seat Back Cushion Carpet Replacement (60% Side) .
Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement .
Remove the rear seat shoulder belt opening cover. Refer to Rear Seat Belt Opening Cover Replacement .
Remove the rear seat back cushion latch release handle. Refer to Rear Seat Back Cushion Latch Release Handle Replacement .
Remove the rear seat armrest frame bracket.
Remove the rear compartment access door.

Rear Seat Back Cushion Cover
Procedure
Remove the hook and loop fasteners that secure the rear seat back cushion cover to the pad.

Rear Seat Cushion Pad
