Rear Seat Back Cushion Replacement (40% Side)

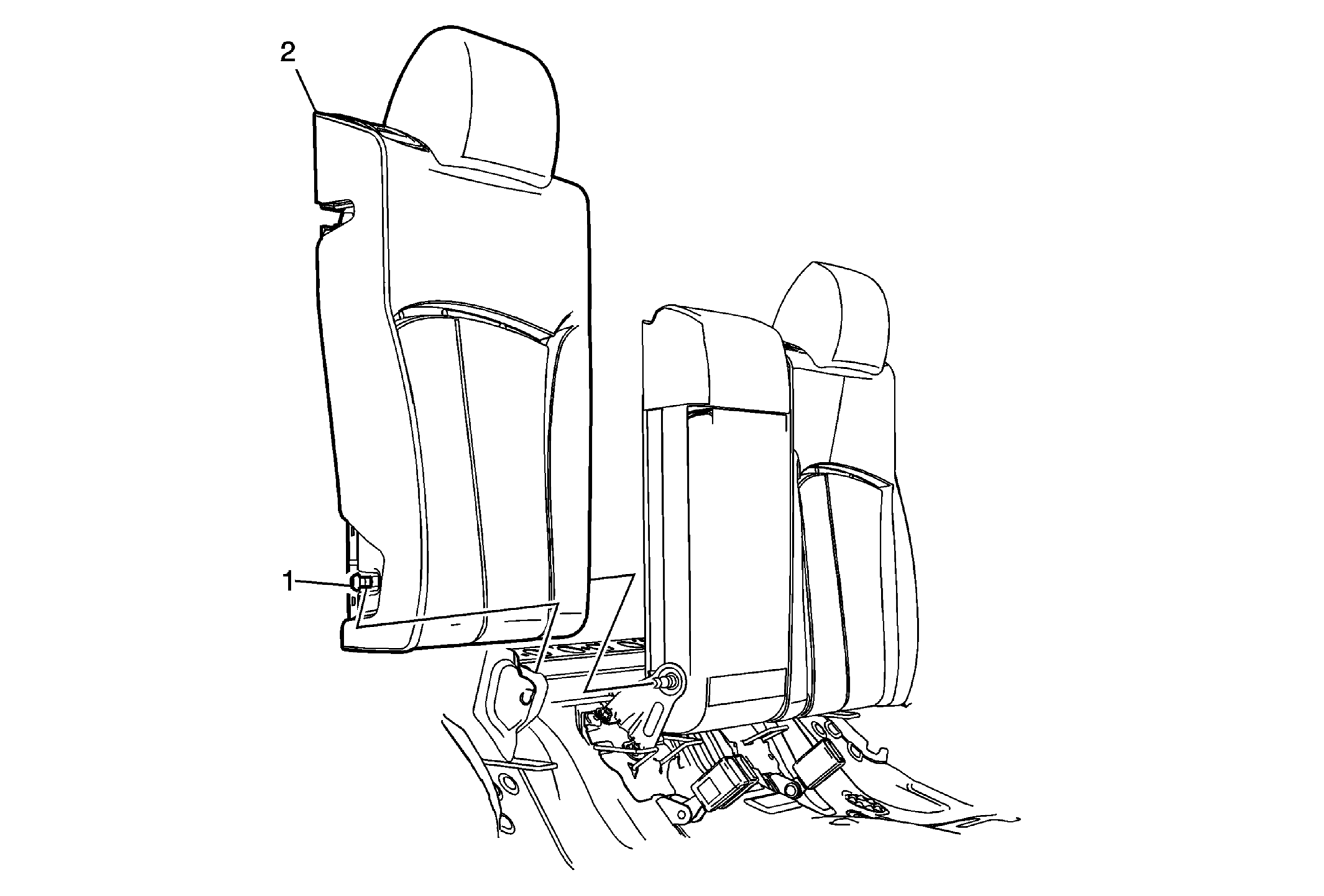

Fig 1: Rear Seat Back Cushion (40% Side)
GM2211818Courtesy of GENERAL MOTORS COMPANY
Rear Seat Back Cushion Replacement (40% Side)

Callout Component Name
1 Rear Seat Back Cushion Pivot Support

Procedure

  1. Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward.
  2. Push in on the rear seat back cushion pivot support, and release from bracket.
2 Rear Seat Back Cushion

Procedure

  1. Pull up on the outer side of the rear seat back cushion and remove the rear seat back cushion from the bracket and hinge.
  2. Transfer components as necessary.
