Rear Seat Back Cushion Carpet Replacement (60% Side)

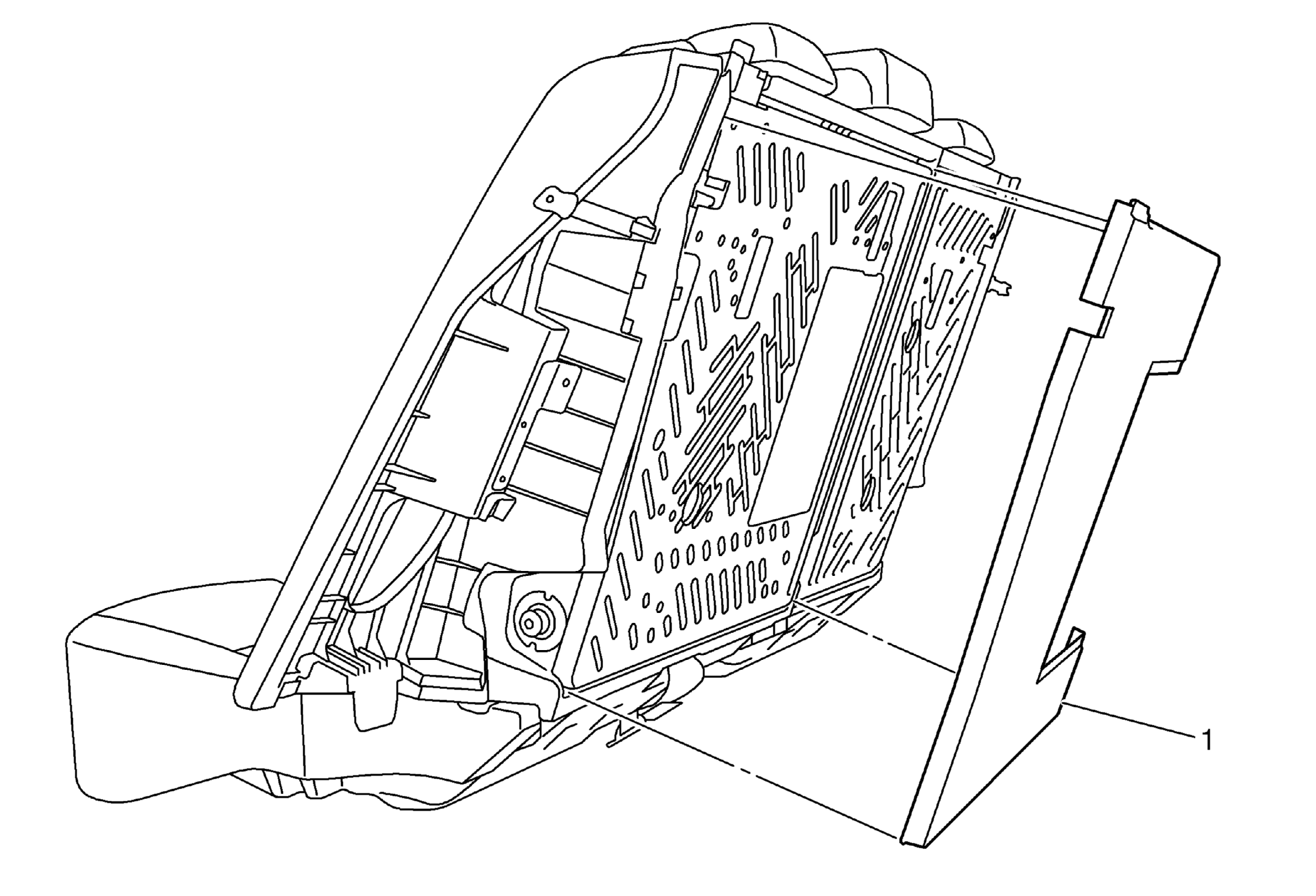

Fig 1: Rear Seat Back Cushion Carpet (60% Side)
GM2019842Courtesy of GENERAL MOTORS COMPANY
Rear Seat Back Cushion Carpet Replacement (60% Side)

Callout Component Name
1 Rear Seat Back Cushion Carpet

Procedure

  1. Fold the rear seat back cushion forward.
  2. Disengage the j-channel retainers from the seat back cushion frame.
  3. Disengage any retainers holding the carpet around the passthrough panel, if equipped.
  4. Remove rear seat back cushion carpet.
