Instrument Panel Lower Center Trim Panel Replacement

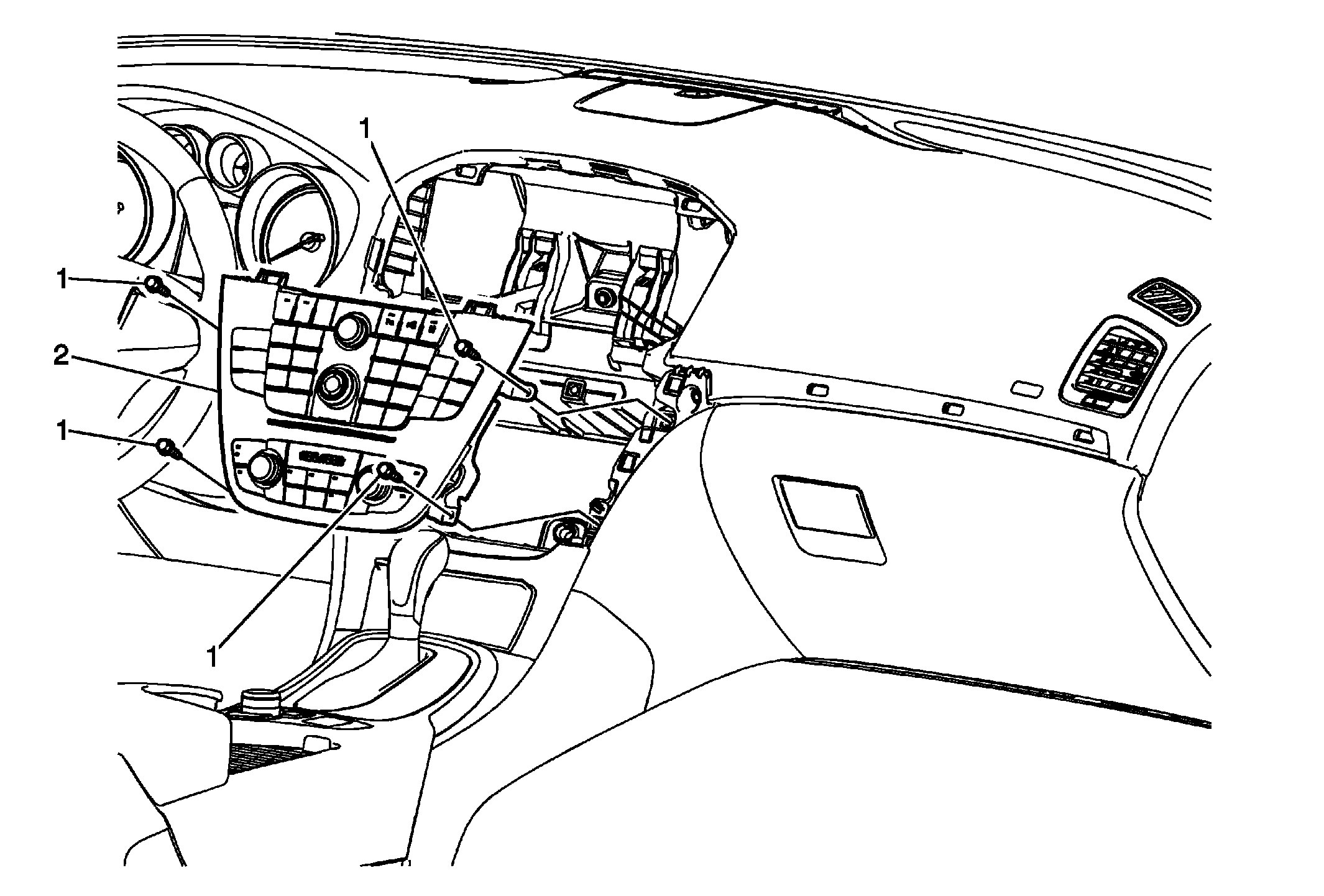

Fig 1: Instrument Panel Lower Center Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement . Remove the instrument panel molding - drivers side. Refer to Instrument Panel Molding Replacement - Driver Side . Remove the instrument panel molding - passenger side. Refer to Instrument Panel Molding Replacement - Passenger Side .
1	Radio Control Module Bracket Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Center Trim Panel Procedures Disconnect the electrical connections. When replacing the instrument panel lower center trim panel, transfer all necessary components,

Callout

Component Name

Preliminary Procedures

Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
Remove the instrument panel molding - drivers side. Refer to Instrument Panel Molding Replacement - Driver Side .
Remove the instrument panel molding - passenger side. Refer to Instrument Panel Molding Replacement - Passenger Side .

Radio Control Module Bracket Fasteners (Qty: 4)

CAUTION:

Instrument Panel Lower Center Trim Panel

Procedures

Disconnect the electrical connections.
When replacing the instrument panel lower center trim panel, transfer all necessary components,
