Instrument Panel Molding Replacement - Driver Side
Instrument Panel Molding Replacement - Driver Side
| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove instrument panel ashtray housing. Refer to Instrument Panel Ashtray Housing Replacement . |
|

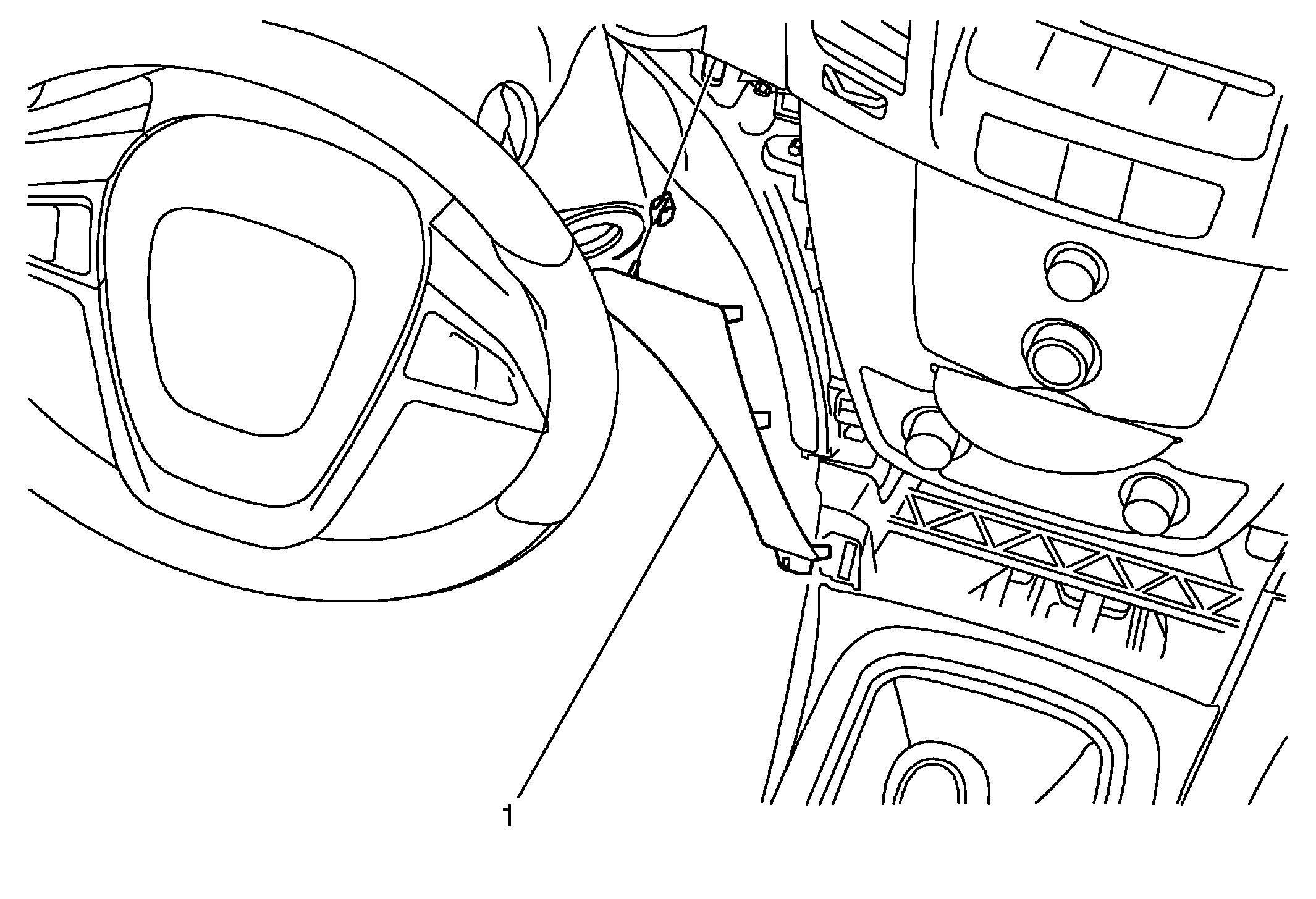

| 1 | Instrument Panel Molding TIP: Use a flat-bladed plastic trim tool to release the instrument panel molding from the instrument panel. |
