Instrument Panel Upper Center Trim Panel Replacement

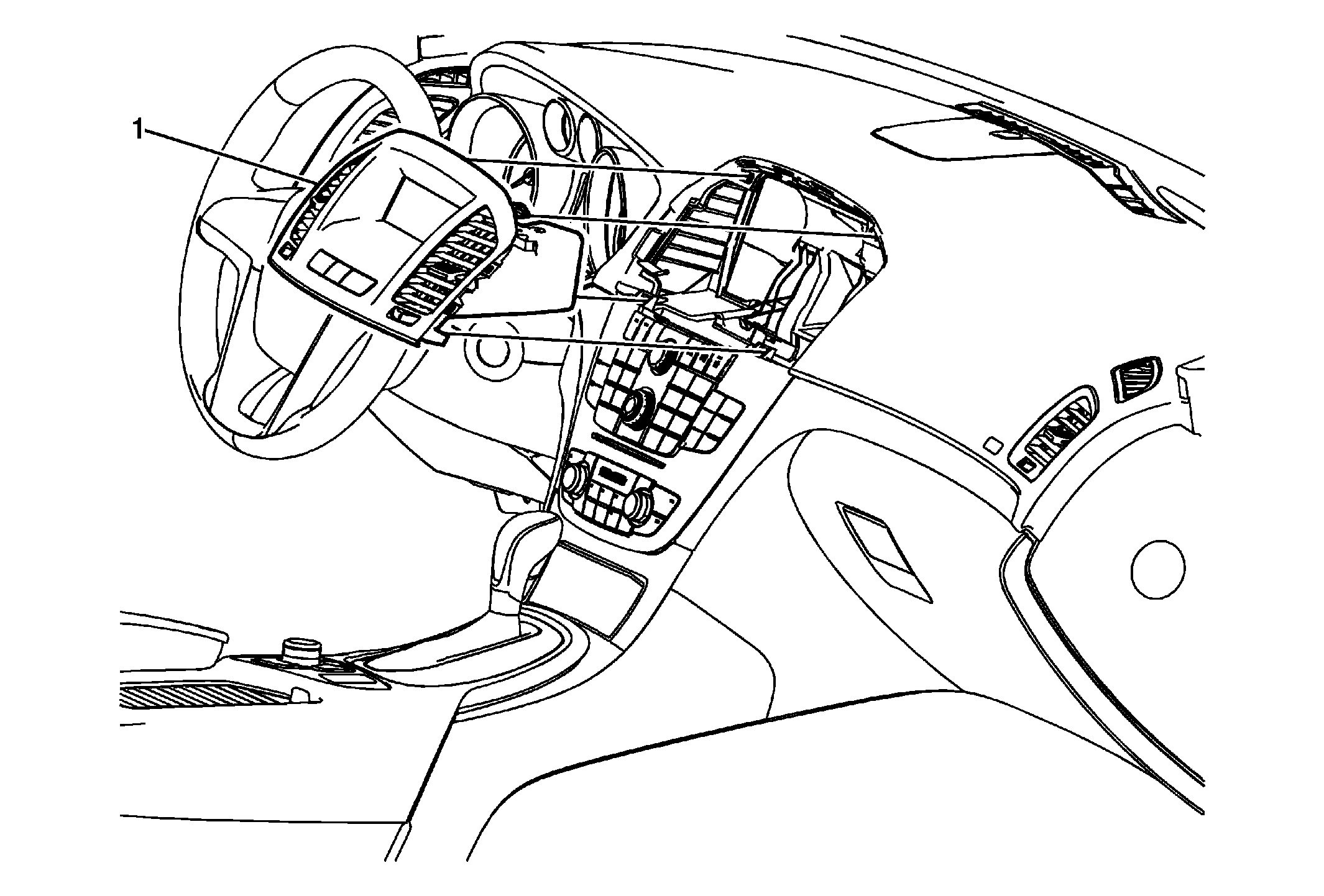

Fig 1: Instrument Panel Upper Center Trim Panel
GM2351284Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Upper Center Trim Panel Replacement

Callout Component Name
1 Instrument Panel Upper Center Trim Panel

Procedure

  1. Use a flat bladed plastic trim panel in order to release the retainer clips securing the upper center trim panel to the instrument panel assembly.
  2. Disconnect electrical connections.
  3. When replacing the instrument panel upper center trim panel, transfer all necessary components.
