Front Fog Lamp Replacement

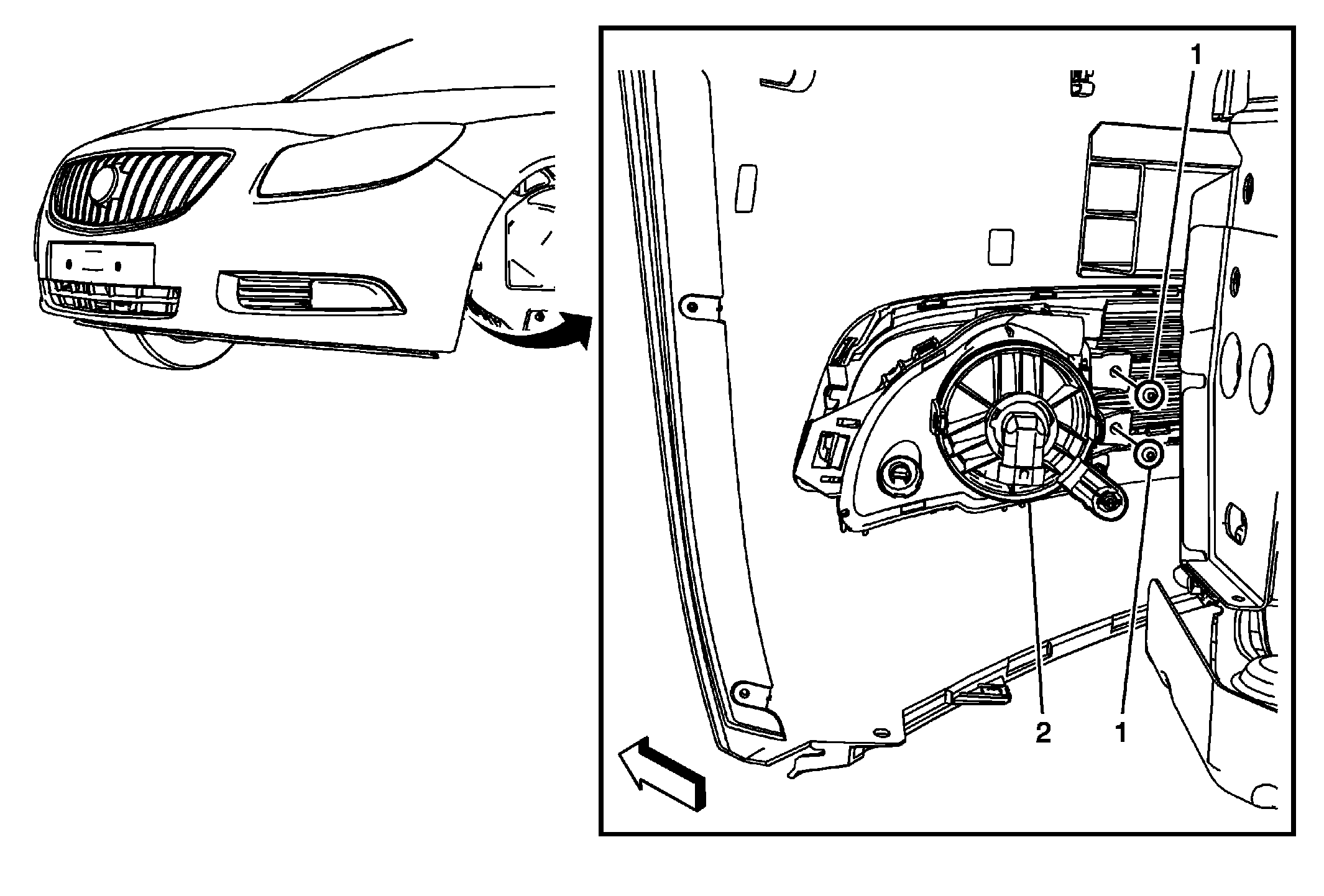

Fig 1: Front Fog Lamp
GM2356938Courtesy of GENERAL MOTORS COMPANY
Front Fog Lamp Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .
  2. Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
1 Front Fog Lamp Screw (Qty: 2)
2 Front Fog Lamp Package

Procedure

  1. Release the front bumper fascia tab from the fog lamp assembly.
  2. Replace the fog lamp as an assembly.
  3. Aim the front fog lamps after installation. Refer to Fog Lamp Aiming .
