Front Wheelhouse Front Liner Replacement
Front Wheelhouse Front Liner Replacement

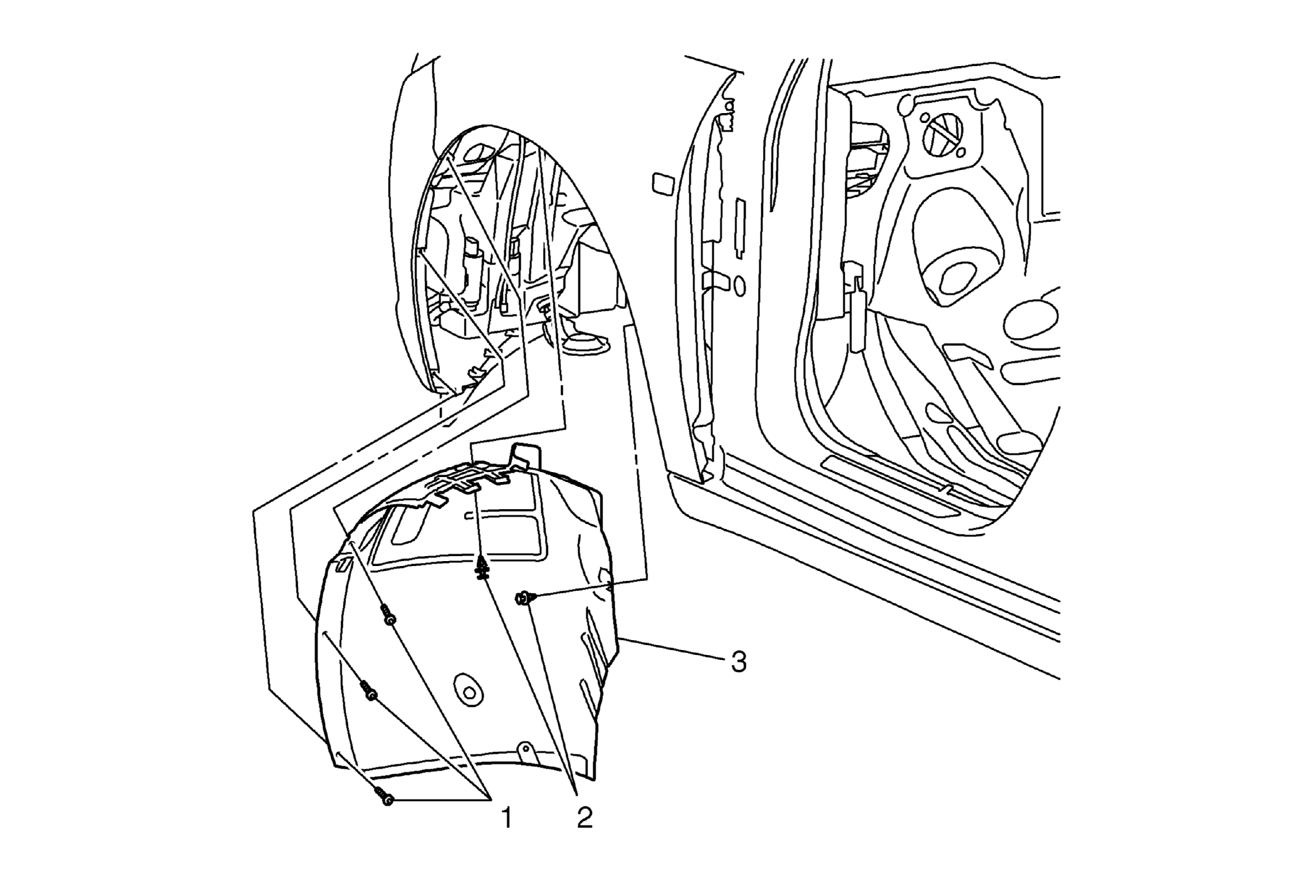

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Front Wheelhouse Front Liner Fastener (Qty: 3) |
| 2 | Front Wheelhouse Front Liner Retainer (Qty: 4) Procedure Use a BO-569-A lifter to aid in the removal of the front wheelhouse front liner. Special Tools BO-569-A Plug Lifter For equivalent regional tools, refer to Special Tools . |
| 3 | Front Wheelhouse Front Liner |
