Windshield Washer Solvent Container Replacement

Preliminary Procedures

1. Remove the windshield washer solvent container fill tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
2. Remove the front LH wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .
3. Disconnect the windshield washer pump and level sensor electrical connectors.
4. Disconnect the electrical harness from the washer container.
5. Disconnect the windshield washer pump hose from the pump and the washer container.

Procedure

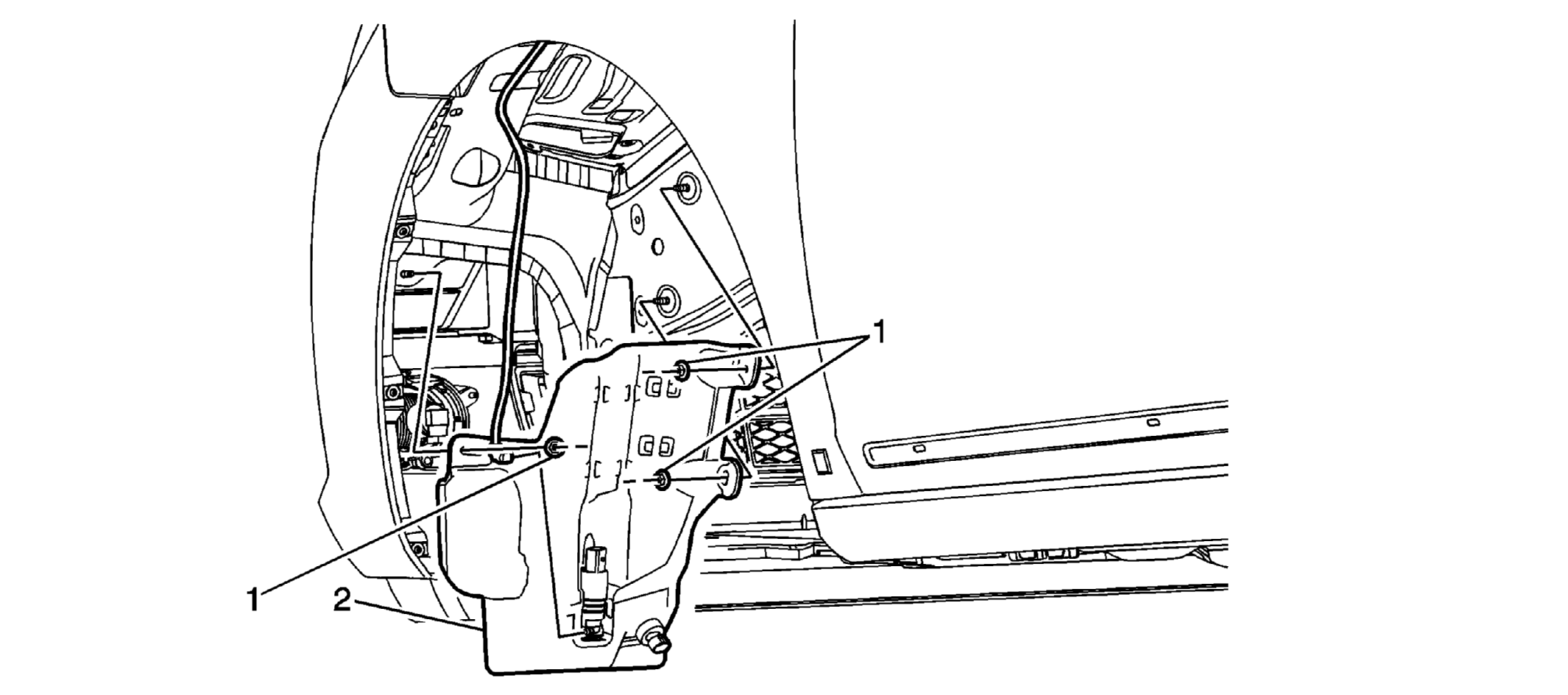

1. Lift the windshield washer container off the three studs securing the container to the vehicle.
2. Drain the windshield washer solvent from the container into a suitable clean drain pan.
3. Transfer parts as needed.
