Front Fender Replacement (Traverse)

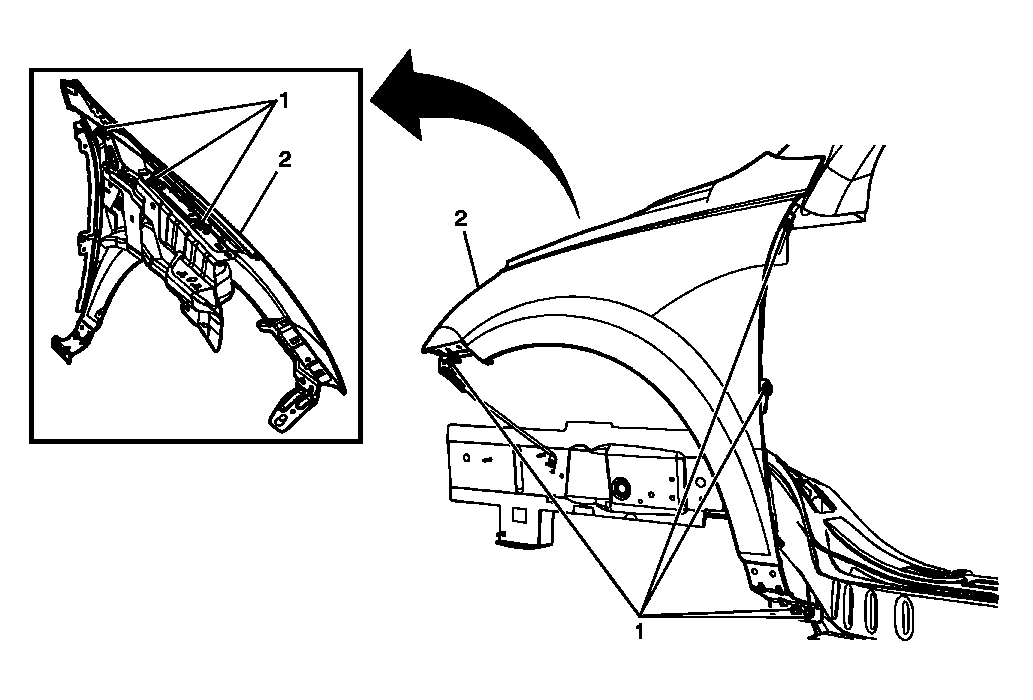

Fig 1: Identifying Front Fender Components (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) , Front Bumper Fascia Replacement (Acadia) , Front Bumper Fascia Replacement (Traverse) . Remove the headlamp on the side being replaced. Refer to Headlamp Replacement (Acadia) , Headlamp Replacement (Traverse with TVP) , Headlamp Replacement (Enclave) . Remove the rocker panel molding. Refer to Rocker Panel Front Molding Replacement (Acadia) , Rocker Panel Front Molding Replacement (Traverse) , Rocker Panel Front Molding Replacement (Enclave) .
1	Front Fender Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (25 lb in)
2	Front Fender Procedure Transfer parts as needed.

Callout

Component Name

Preliminary Procedures

Front Fender Bolt (Qty: 8)

CAUTION:

Tighten
3 N.m (25 lb in)

Front Fender
Procedure
Transfer parts as needed.
