Rocker Panel Front Molding Replacement (Acadia)

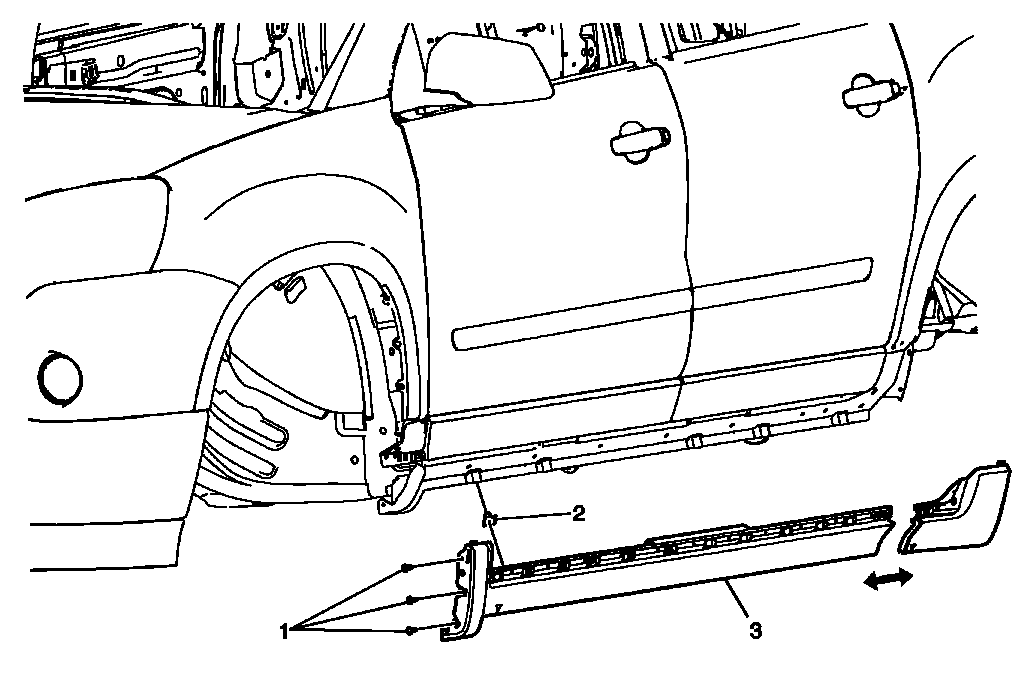

Fig 1: Identifying Rocker Panel Molding
GM1862534Courtesy of GENERAL MOTORS CORP.
Rocker Panel Front Molding Replacement (Acadia)

Callout Component Name
Preliminary Procedure
Open both side doors in order to remove the rocker panel front molding assembly.
1 Rocker Panel Finish Panel Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the rocker panel rear molding assembly.
  2. Remove the 3 front finish panel screws.
  3. Release the 6 lower rocker molding retainers.
  4. Release the 12 upper rocker molding retainers.

Tighten
1.5 N.m (13 lb in)
2 Rocker Panel Rear Molding Retainer (Qty: 18)
3 Rocker Panel Front Molding Assembly
TIP:  Replace the retainer clips as needed.
