Seat Cushion Support Replacement - Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

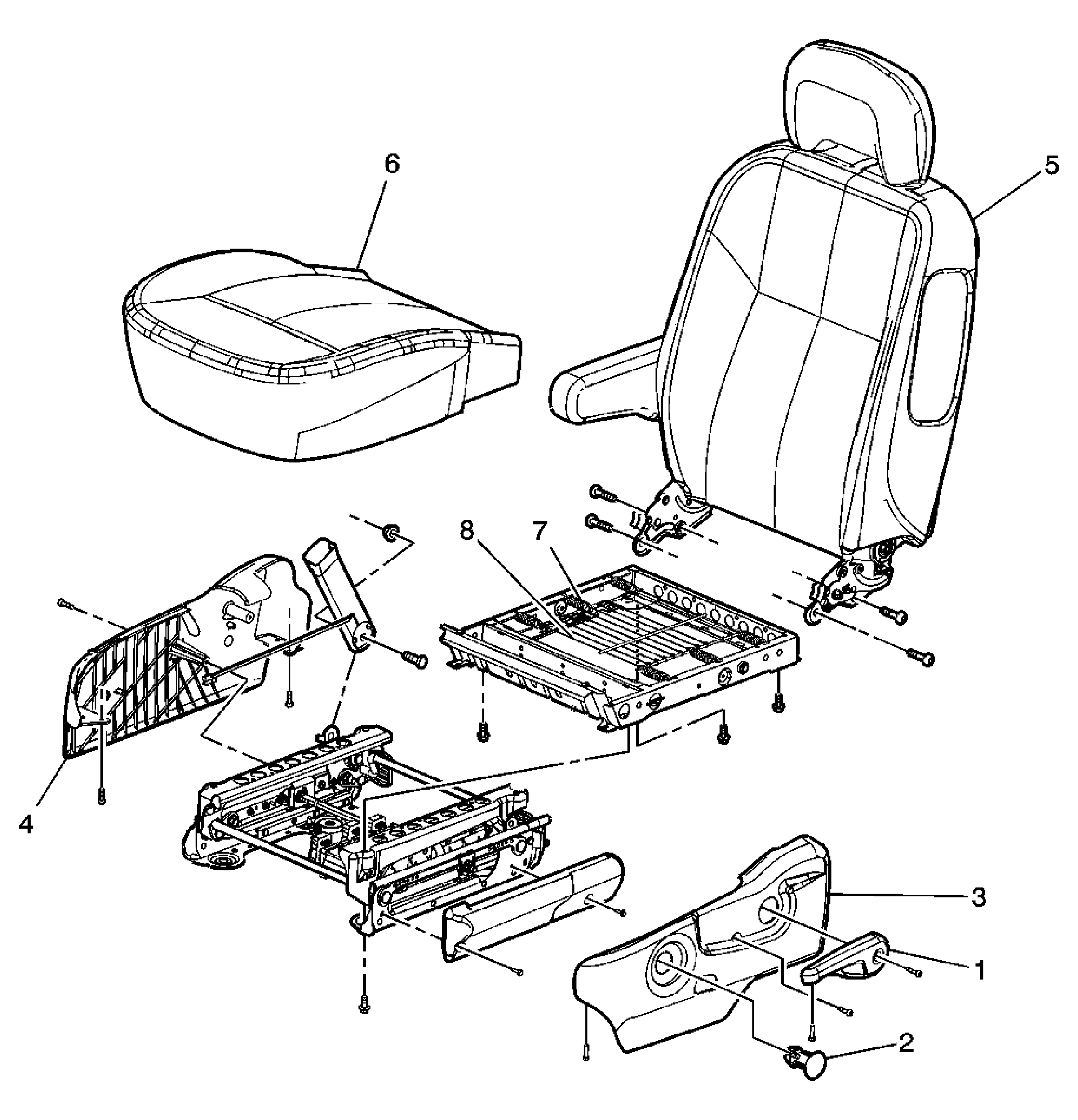

Fig 1: View Of Front Seat Cushion Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1	Handle, Seat Recliner Refer to Seat Back Recliner Handle Replacement - Front .
2	Plug, Seat Recliner Handle
3	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
4	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
5	Seat Back Assembly Refer to Seat Back Replacement - Front .
6	Cushion Assembly, Seat Refer to Seat Cushion Cover and Pad Replacement - Front .
7	Spring, Seat Cushion Support
8	Support Assembly, Seat Cushion
