Close Out Hinge Panel, Cushion Cover Shield and Riser Hook Cover Replacement - Right Side - Rear No 2

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

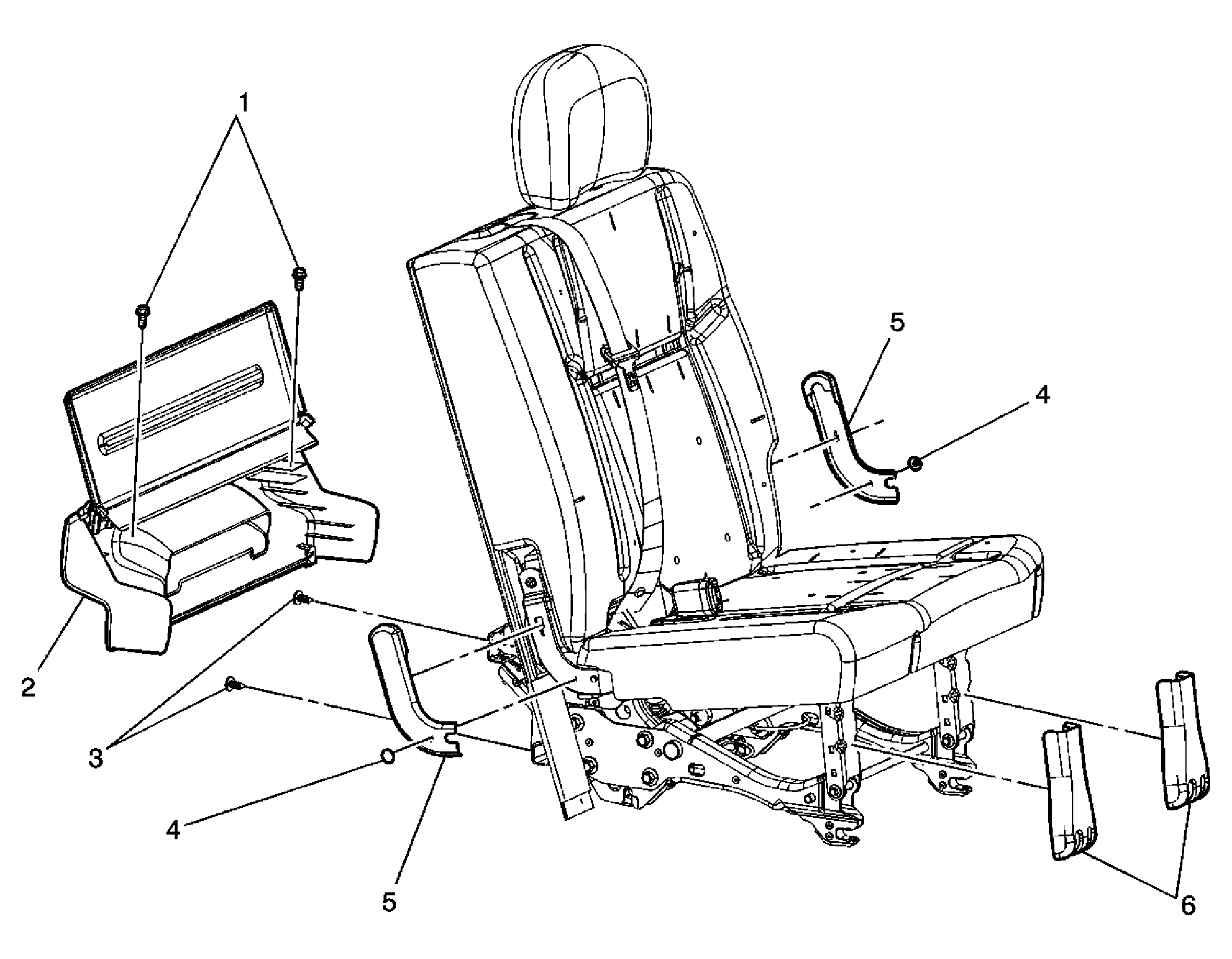

Fig 1: View Of Close Out Hinge Panel, Cushion Cover Shield & Riser Hook Cover - Rear No 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Closeout Hinge Panel Assembly
1	Screw, Close Out Hinge Panel Assembly (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Panel Assembly, Closeout Hinge
3	Retainer, Closeout Hinge Panel Assembly (Qty: 2)
Cushion Cover Shield
4	Retainer, Cushion Cover Shield
5	Shield, Cushion Cover (Qty: 2)
Riser Hook Covers
6	Cover, Riser Hooks (Qty: 2)
