Seat Adjuster Replacement - Front (Power)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

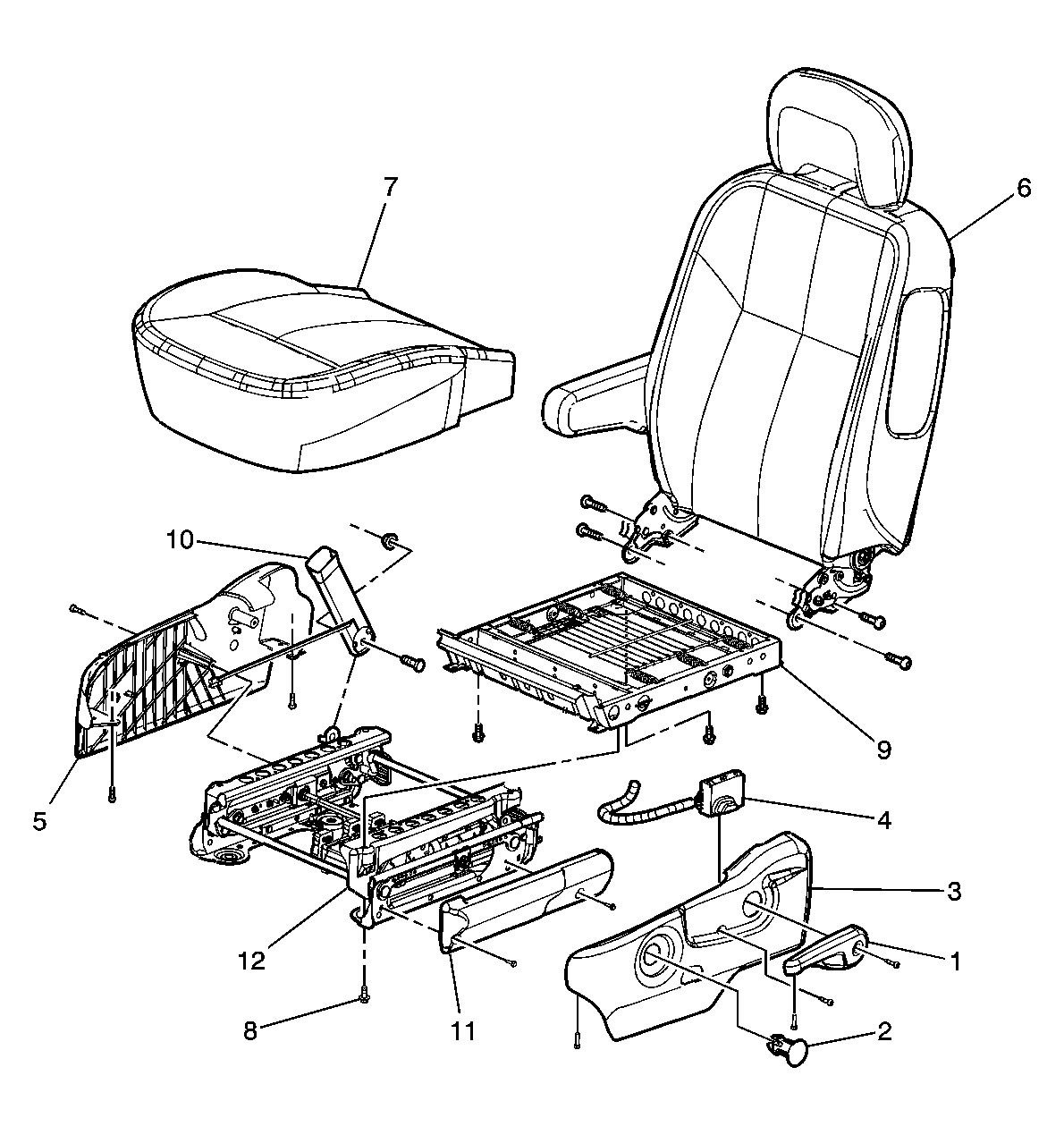

Fig 1: View Of Front Seat Adjuster (Power)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1	Handle, Seat Recliner Refer to Seat Back Recliner Handle Replacement - Front .
2	Plug, Seat Recliner Handle
3	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
4	Switch, Power Seat Adjuster Refer to Seat Switch Replacement - Power .
5	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
6	Seat Back Assembly Refer to Seat Back Replacement - Front .
7	Cushion Assembly, Seat Refer to Seat Cushion Cover and Pad Replacement - Front .
8	Bolt, Power Seat Adjuster (Qty: 4) Tighten: 45 N.m (33 lb ft)
9	Frame Assembly, Seat Cushion Frame
10	Belt Assembly, Seat Refer to Seat Belt Buckle Replacement - Front in Seat Belts.
11	Cover, Seat Inner Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
12	Adjuster Assembly, Power Seat
