Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door conduit. Refer to Rubber Conduit Replacement - Front Door .
  4. Remove the front door window belt inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Remove the front door window weatherstrip. Refer to Weatherstrip Replacement - Front Door Window .
  6. Remove the front door window. Refer to Window Replacement - Front Door .

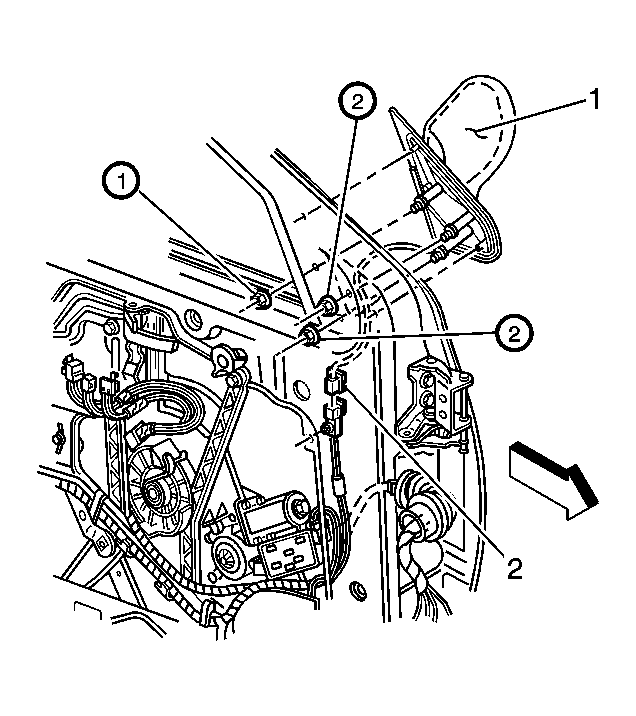

    7. Fig 1: Removing/Installing Outside Rearview Mirror
    GM1482358Courtesy of GENERAL MOTORS CORP.
  7. Remove the outside rearview mirror (1). Refer to Mirror Replacement - Power .
    8. Fig 2: View Of Front Door Module
    GM1480545Courtesy of GENERAL MOTORS CORP.
  8. Remove the front door module (2). Refer to Door Module Replacement - Front .
    9. Fig 3: Identifying Outside Door Handle Components
    GM1480535Courtesy of GENERAL MOTORS CORP.
  9. Remove the front door outside handle (5). Refer to Door Handle Replacement - Front Outside .
  10. Remove the front door lock. Refer to Lock Replacement - Front Door .
  11. Remove the front door window belt outer sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  12. Remove the front door window run channel. Refer to Window Run Channel Replacement - Front Door .
  13. Remove the front door molding.
  14. Remove the front door hinges. Refer to Hinge Replacement - Front Door .
    15. Fig 4: View Of Front Door
    GM533515Courtesy of GENERAL MOTORS CORP.
  15. With the aid of an assistant, remove the front door shell from the hinge pillar.
