Door Handle Replacement - Front Outside

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

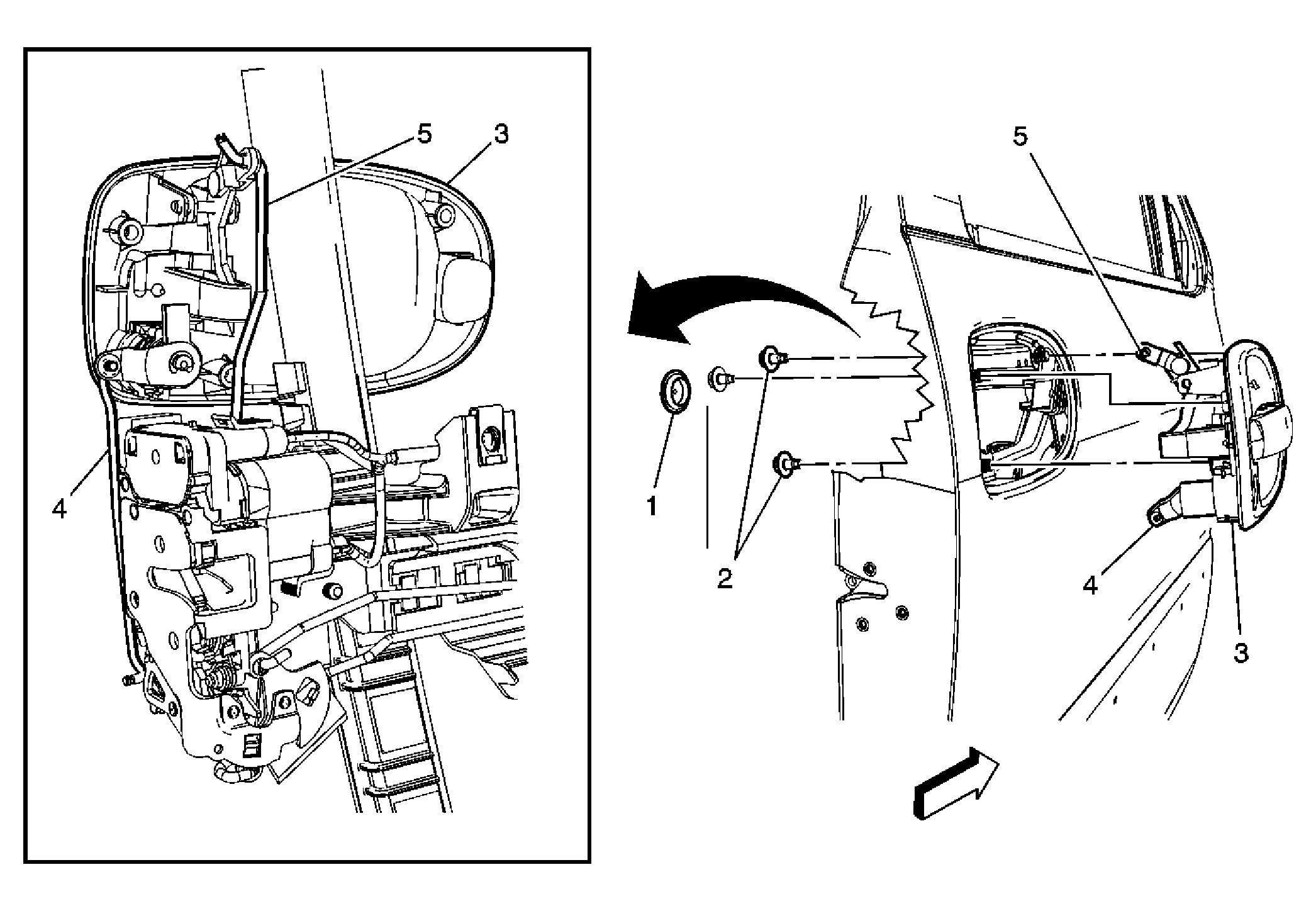

Fig 1: Replacing Front Outside Door Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door . Remove the front door window. Refer to Window Replacement - Front Door . Loosen the front door window regulator module. Refer to Door Module Replacement - Front . Disconnect the electrical connectors.
1	Access Cover Plug Tip: Remove the plug to access the upper rear door handle bolt.
2	Front Door Handle Bolts (Qty: 3) Tighten: 10 N.m (89 lb in)
3	Front Outside Door Handle Tip: Partially remove in order to access the door handle latch and lock rods.
4	Front Door Lock Rod Disconnect the lock rod from the outside handle lock cylinder.
5	Front Door Latch Handle Rod Disconnect the latch rod from the outside handle.
